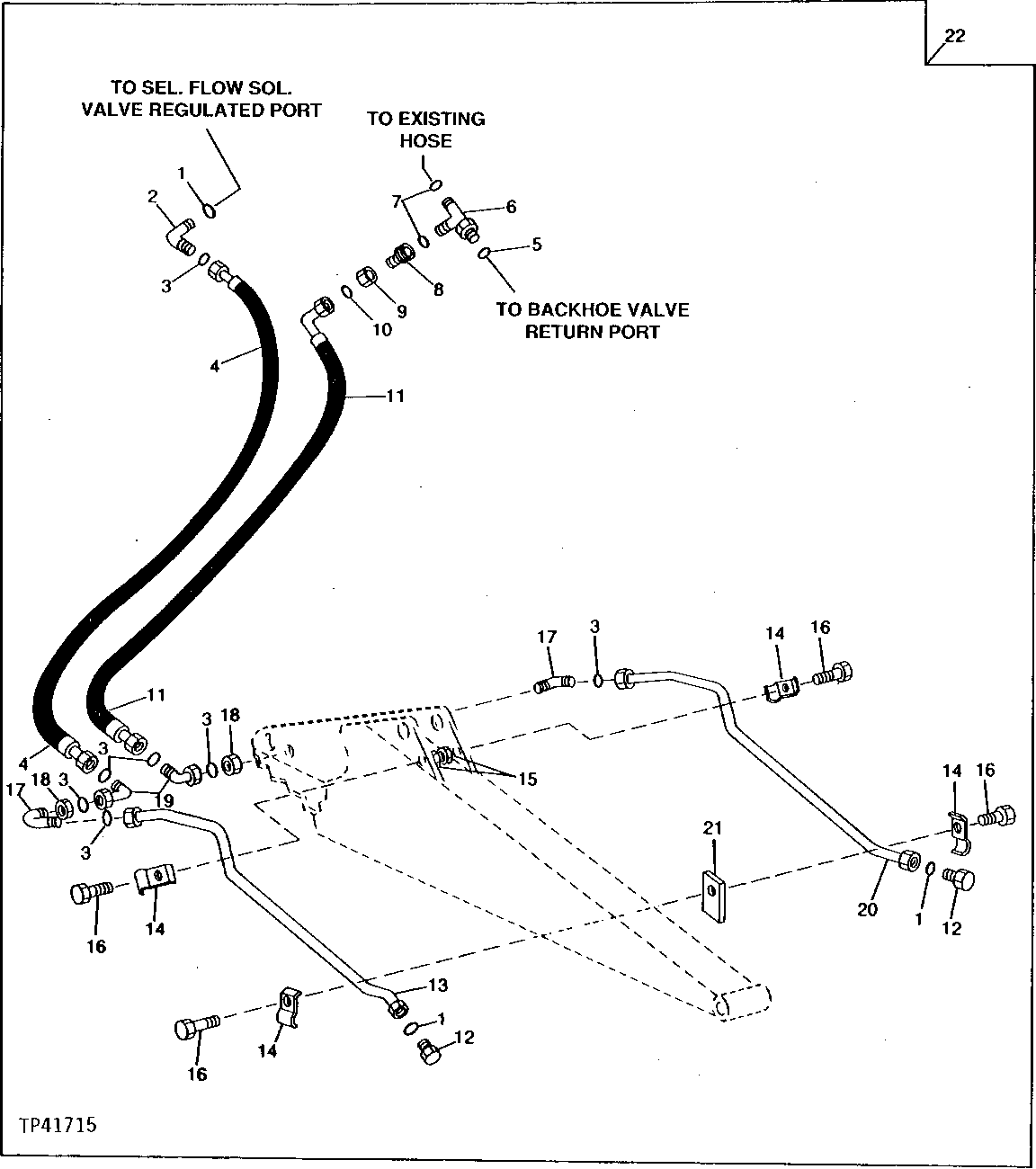

AUXILIARY HYDRAULIC LINES FOR MOUNTED EQUIPMENT ( - 801199)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	3	O-Ring	-
2	38H1305	1	Elbow Fitting	-
3	T76938	7	O-Ring	-
4	AT157157	1	Hydraulic Hose	36.5252" X 1800 mm (70-3/4") X 36.5252"
5	U13639	1	O-Ring	-
6	38H1028	1	Tee Fitting	-
6	38H1410	1	Tee Fitting	-
7	T78612	2	O-Ring	-
8	38H1477	1	Reducer	-
9	38H1122	1	Tube Nut	-
10	T77858	1	O-Ring	-
11	AT157158	1	Hydraulic Hose	36.5252" X 1500 mm (59") X 30.1752"
12	R27175	2	Drain Plug	-
13	AT156760	1	Oil Line	-
13	AT157159	1	Oil Line	-
14	U43641	4	Clamp	-
15	14M7166	3	Lock Nut	M8
16	19M7269	3	Cap Screw	M8 X 50
17	38H1456	2	Elbow Fitting	-
18	T78715	2	Nut	36.525 mm (1-7/16")
19	38H1098	2	Elbow Fitting	-
20	AT156761	1	Oil Line	-
20	AT157160	1	Oil Line	-
21	-	1	Part 24	-
22	AT156913	1	Kit	(STANDARD) (ALSO REQUIRES AT117687 HYDRAULIC HOSE (2) FOR USE WITH 410D STANDARD DIPPERSTICK, 410D HEAVY LIFT, STANDARD OR EXTENDABLE DIPPERSTICK)(ALSO REQUIRES AT167912 FIELD KIT FOR USE WITH THE AUXILIARY SELECTIVE FLOW SOLENOID VALVE OR AT167907 BOOM TO MANUAL VALVE AUXILIARY PLUMBING FOR USE WITH A 5 OR 6 FUNCTION VALVE ), (SUB AT166860)
22	AT156914	1	Kit	(HEAVY LIFT) (SUB AT170233) (ALSO REQUIRES AT124153 (2) FOR USE WITH 510D STANDARD DIPPER) (REQUIRES AT166920 (2) FOR USE WITH 510D EXTENDABLE DIPPER OR 410D HEAVY LIFT, STANDARD OR EXTENDABLE DIPPER) ( AT167912 FOR USE WITH THE AUXILIARY SELECTIVE FLOW SOLENOID VALVE OR AT167907 FOR USE WITH A 5 OR 6 FUNCTION AUXILIARY MANUAL VALVE), (SUB AT167009)

AUXILIARY HYDRAULIC LINES FOR MOUNTED EQUIPMENT ( - 801199)

Нет текстового описания
