AIR CONDITIONING CONDENSER,RECEIVER DRYER,HOSES AND LINES ( - 816286)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT78603	1	Vapor Condenser	-
2	14M7166	4	Lock Nut	M8
3	24M7239	4	Washer	10.700 X 21 X 2.500 mm
4	U42208	8	Isolator	-
5	R113050	2	O-Ring	-
7	R28776	1	O-Ring	-
8	-	1	Part 9	-
9	T148917	1	Cap	-
10	AT164892	1	Hydraulic Cylinder Port	-
11	H75541	1	Clamp	-
12	19M7881	1	Screw	M8 X 20
13	24H1243	1	WASHER	11/32" X 5/8" X 1/16", (SUB FOR 12M7065)
14	14M7273	1	Nut	M8
15	14M7273	1	Nut	M8
16	T152886	1	Strap	(SUB FOR T150605)
17	T106428	2	Bracket	-
18	24M7239	2	Washer	10.700 X 21 X 2.500 mm
19	19H1732	2	Cap Screw	3/8" X 1-1/4"
20	A4365R	1	O-Ring	-
21	AT156966	1	Hose	7/8" X 2175 mm (85-3/4") X 7/8"
21	AT161576	1	Refrigerant Hose	7/8" X 2229 mm (87-3/4") X 7/8"
21	AT168125	1	Refrigerant Hose	-
22	AT156965	1	Refrigerant Hose	(SUB FOR AT148549)
23	14M7229	2	Nut	M5
24	24H1283	2	Washer	7/32" X 1/2" X 0.049"
25	RE198074	1	Temperature Switch	(SUB FOR AT145598, THIS APPLICATION ) (SUB FOR AH144020)FREEZE CONTROL
26	AT151555	1	Line	-
27	-	1	Part 31	INSULATING TAPE (MAKE FROM R57003 BULK MATERIAL)
27	AT151556	1	Adapter Fitting	-
28	R10093	5	O-Ring	-
29	P51212	1	O-Ring	(SUB FOR R28776, THIS APPLICATION)
30	AH203871	1	Valve	(SUB FOR AH122867, AH137702)EXPANSION
31	R33259	3	O-Ring	(SUB FOR A4365R, THIS APPLICATION)
32	19M7935	2	Cap Screw	M10 X 55
32	19M8166	2	Cap Screw	M10 X 110
33	24H1781	2	Washer	13/32" X 7/8" X 1/4"
34	28H1521	2	Spacer	0.493" X 0.675" X 9/16"
34	28H3402	2	Spacer	0.493" X 0.675" X 2"
35	14M7274	2	Nut	M10
36	T79844	1	STRAP	-
37	R53422	2	Clamp	-
38	AT162848	1	Receiver-Dryer	(SUB FOR AT125596, THIS APPLICATION ) (SUB FOR AT151981)
39	AT156967	1	Refrigerant Hose	(SUB FOR AT106503, AT79961 AND AT151967)
40	T106430	1	Bracket	-
41	28H1521	4	Spacer	0.493" X 0.675" X 9/16"
42	T146262	1	Angle	(SUB FOR T106429)
43	24H1657	4	Washer	21/64" X 1-1/4" X 7/64"
44	19M7981	4	Cap Screw	M8 X 55
45	19M7550	4	Cap Screw	M10 X 35
46	T149556	1	Strap	-
47	T154018	1	Support	(SUB FOR T149678)RH
48	T149677	1	Support	LH
49	-	1	Part 55	( AT163891 NO LONGER AVAILABLE), (SUB AT167584 ) (SUB FOR AT148434 (ALSO INCLUDES CONDENSOR, EVAPORATOR, FAN GUARD COMPRESSOR BRACKETS AND SUPPORT, DRIVE BELT, SWITCHES AND MISCELLANEOUS))
49	AT167584	1	Air Conditioner	(INCLUDES COMPRESSOR, EVAPORATOR, SWITCHES, DRIVE BELT AND MISCELLANEOUS)
50	24M7296	1	Washer	10.500 X 30 X 2.500 mm
51	T126299	1	Clamp	-
6A	AT165971	1	Refrigerant Hose	(SUB FOR AT148539 AND AT156968)
6B	AT172571	1	Refrigerant Hose	(SUB FOR AT165859 AND AT161577)

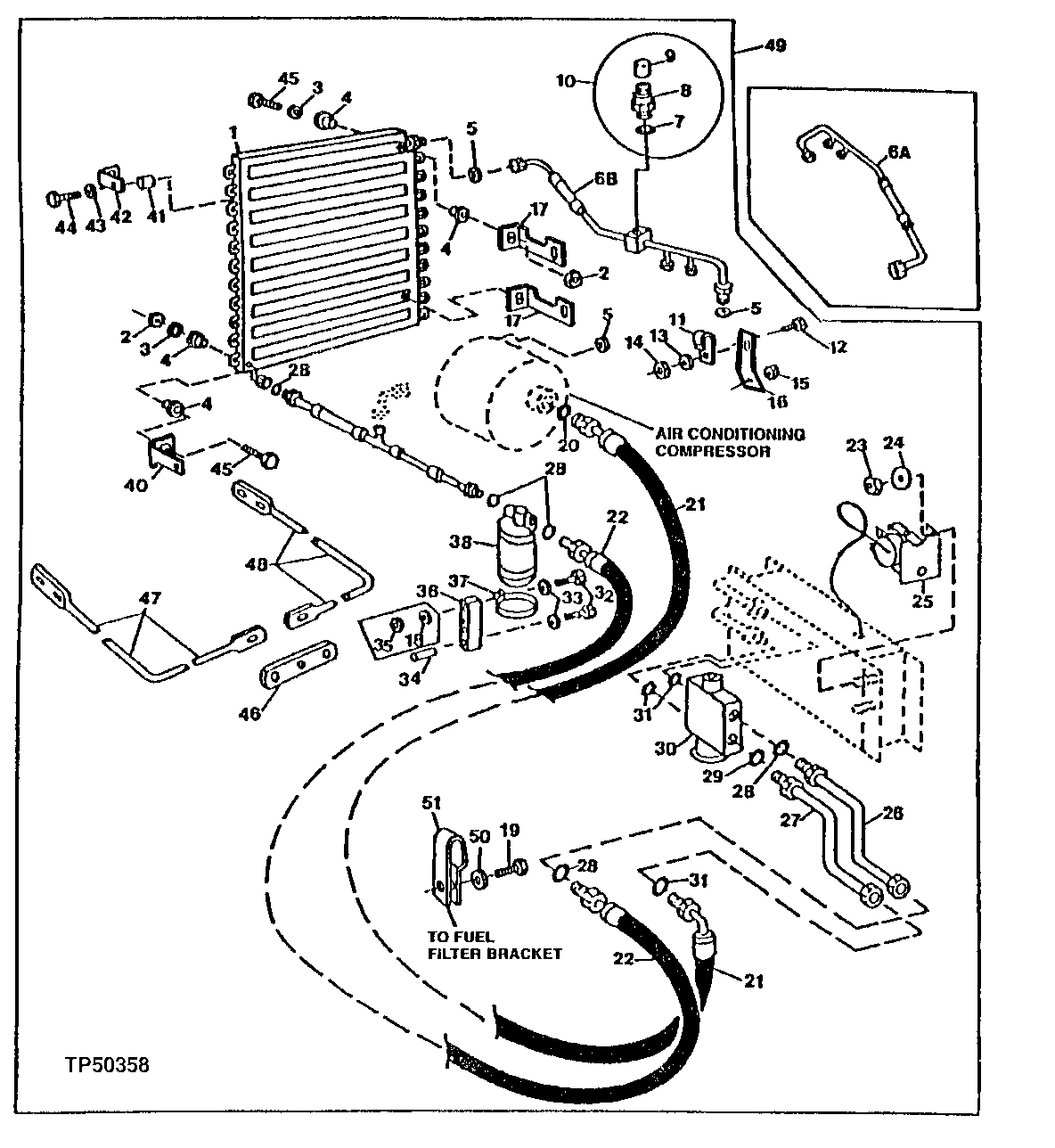

AIR CONDITIONING CONDENSER,RECEIVER DRYER,HOSES AND LINES ( - 816286)
