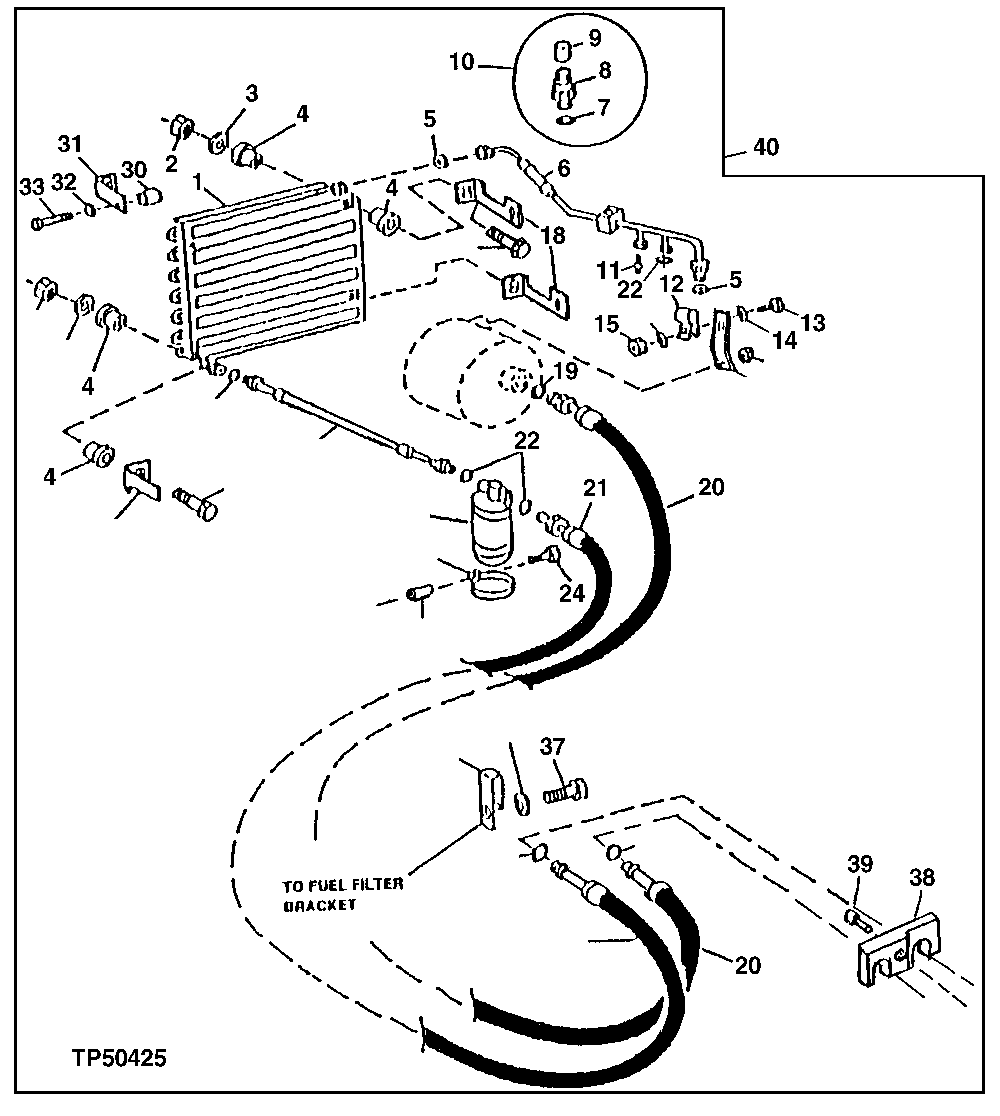

AIR CONDITIONING CONDENSER AND HOSES (816287 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT78603	1	Vapor Condenser	-
2	14M7166	4	Lock Nut	M8
3	24M7239	4	Washer	10.700 X 21 X 2.500 mm
4	U42208	8	Isolator	-
5	R113050	2	O-Ring	-
6	AT174791	1	Refrigerant Hose	-
7	R28776	1	O-Ring	-
8	-	1	Part 8	-
9	T148917	1	Cap	-
10	AT164892	1	Hydraulic Cylinder Port	-
11	R60170	2	Valve	-
12	H75541	1	Clamp	-
13	19M7881	2	Screw	M8 X 20
14	24H1243	2	WASHER	11/32" X 5/8" X 1/16"
15	14M7273	1	Nut	M8
16	14M7273	1	Nut	M8
17	T152886	1	Strap	-
18	T106428	2	Bracket	-
19	R33259	1	O-Ring	-
20	AT174786	1	Refrigerant Hose	-
21	AT174785	1	Refrigerant Hose	-
22	R10093	6	O-Ring	-
23	T143169	1	O-Ring	-
24	19M8166	2	Cap Screw	M10 X 110
25	28H3402	2	Spacer	0.493" X 0.675" X 2"
26	R53422	2	Clamp	-
27	AT162848	1	Receiver-Dryer	-
28	AT156967	1	Refrigerant Hose	-
29	T106430	1	Bracket	-
30	T126052	4	Spacer	-
31	T146262	1	Angle	-
32	24H1657	4	Washer	21/64" X 1-1/4" X 7/64"
33	19M7981	4	Cap Screw	M8 X 55
34	19M7550	4	Cap Screw	M10 X 35
35	T126299	1	Clamp	-
36	24M7296	2	Washer	10.500 X 30 X 2.500 mm
37	19H1732	1	Cap Screw	3/8" X 1-1/4"
38	R125223	1	Plate	-
39	19M8553	1	Screw	M6 X 16
40	-	1	Part 40	( AT177481 NO LONGER AVAILABLE) (ALSO INCLUDES EVAPORATOR KIT, SWITCHES, FAN GUARD, COMPRESS0R, BRACKETS, V-BELT, WIRE HARNESS, STRAP, LABEL AND MISCELLANEOUS HARDWARE)
