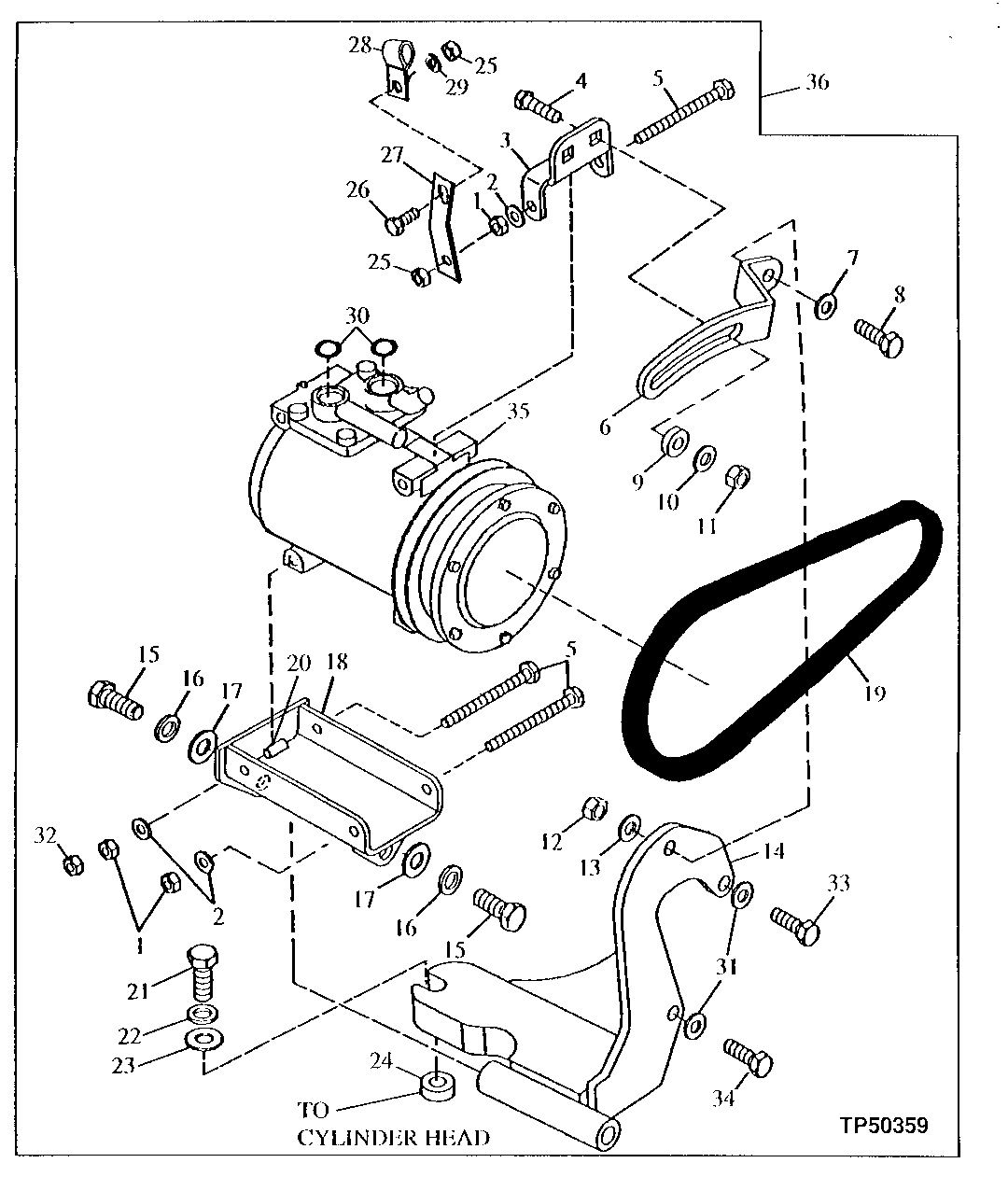

Air Conditioning Compressor Drive Belt, Brackets And Support (R134A Refrigerant) (790702 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7273	3	Nut	M8
2	12M7065	3	Lock Washer	8 mm
3	T151638	1	Bracket	(SUB FOR R115397 AND R121294)
4	03M7192	1	Bolt	M10 X 30
5	19M8456	3	Cap Screw	M8 X 100
6	T155126	1	Strap	(SUB FOR T145907)
7	24M7239	1	Washer	10.700 X 21 X 2.500 mm
8	19M7662	1	Cap Screw	M10 X 30
9	24H1781	1	Washer	13/32" X 7/8" X 1/4"
10	12M7066	1	Lock Washer	10 mm
11	14M7274	1	Nut	M10
12	14M7167	1	Lock Nut	M10
13	24M7239	1	Washer	10.700 X 21 X 2.500 mm
14	AT167956	1	Support	(SUB FOR AT164970)
15	19H2898	2	Cap Screw	1/2" X 1-1/4"
15	19H1815	2	Cap Screw	1/2" X 1-1/4"
16	12H301	2	Lock Washer	1/2"
16	24H1254	2	Washer	17/32" X 1-1/8" X 0.105"
17	24H1111	2	Washer	17/32" X 1-1/16" X 0.090"
18	AT167747	1	Bracket	(ALSO ORDER M78771), (SUB FOR AT167747)
18	AT168278	1	Bracket	-
19	R82437	1	V-Belt	COMPRESSOR DRIVE
20	M78771	1	Washer	(USE WITH AT168278)
21	19H1990	1	Cap Screw	1/2" X 2-1/4"
22	12H301	1	Lock Washer	1/2"
23	24H1254	1	Washer	17/32" X 1-1/8" X 0.105"
24	T151858	1	Washer	-
25	14M7273	2	Nut	M8
26	19M7881	1	Screw	M8 X 20
27	T152886	1	Strap	(SUB FOR T150605)
28	H75541	1	Clamp	-
29	24H1243	1	WASHER	11/32" X 5/8" X 1/16"
30	R113050	2	O-Ring	-
31	12H304	2	Lock Washer	3/8"
32	14M7273	1	Nut	M8
33	19H1801	1	CAP SCREW	3/8" X 2"
34	19H1801	1	CAP SCREW	3/8" X 2"
35	RE52454	1	Compressor	(WITHOUT CLUTCH OR MANIFOLD)
35	SE501468	1	Compressor Reman	REMAN FOR RE52454
35	TY6765	1	Compressor	NLA; ORDER SE501463
35	SE501463	1	Compressor Reman	REMAN FOR TY6765
36	-	1	Part 42	( AT163891 NO LONGER AVAILABLE), (SUB AT167584 (ALSO INCLUDES EVAPORATOR, SWITCHES, WIRE HARNESS, RECEIVER DRYER, FAN GUARD, LABELS, HOSES, LINES, THERMOSTAT, RADIATOR SUPPORTS, LOUVER, AND MISCELLANEOUS HARDWARE))
36	AT167584	1	Air Conditioner	(ALSO INCLUDES EVAPORATOR, SWITCHES, WIRE HARNESS, RECEIVER DRYER, FAN GUARD, LABELS, HOSES, LINES, THERMOSTAT AND MISCELLANEOUS HARDWARE)
36	-	1	Part 44	( AT177481 NO LONGER AVAILABLE) (ALSO INCLUDES EVAPORATOR KIT, SWITCHES, WIRE HARNESS, LINES, HOSES, RECEIVER DRYER, LABELS, THERMOSTAT, FAN GUARD, AND MISCELLANEOUS HARDWARE)
