1.5M EXTENDIBLE DIPPERSTICK EXTENSION (787385 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	T143209	1	Shim	-
3	AT162050	1	Pad	(SUB FOR T143207)
4	19M7403	6	Cap Screw	M12 X 35
5	24M7240	1	Washer	13 X 25 X 3 mm
6	T146635	1	Washer	-
7	T144537	1	Strip	(ALSO ORDER (2) T148940, (2) T148941 AND (2) T148942)
8	T144536	2	Strip	-
9	T157646	1	Bushing	(SUB FOR T113279)
10	R72579	2	BUSHING	-
11	T34301	2	BUSHING	-
12	T144532	1	Strip	-
13	T144130	1	Plate	-
14	T143937	2	Pad	-
15	T144129	1	Stop	-
16	T148940	2	Reinforcement	.005
16	T148941	2	Reinforcement	.010
16	T148942	2	Reinforcement	.030
17	AT159236	1	Extension	(ALSO ORDER (2) T148940, (2) T148941, (2) T148942 AND T144129)
18	T100188	1	Pin Fastener	(SUB FOR T125937)
19	40M7180	2	Snap Ring	-
20	AT160987	1	Clevis	-
21	T146687	1	Label	ATTENTION
22	JD7799	1	Lubrication Fitting	-
23	T162396	1	Lubrication Fitting	(SUB FOR JD7798)
24	T162004	2	Clamp	ROD END, BUCKET CYLINDER, (SUB FOR T147187)
25	T163636	2	Clamp	HEAD END, BUCKET CYLINDER, (SUB FOR T147188)
26	19M7981	4	Cap Screw	M8 X 55
27	24M7238	4	Washer	8.700 X 17 X 2 mm
28	T147142	2	Plate	-
29	14M7273	4	Nut	M8
30	24M7028	2	Washer	10.500 X 20 X 2 mm
31	19M7402	2	Cap Screw	M10 X 25
32	-	1	Part 36	( AT159933 NO LONGER AVAILABLE)
1A	-	2	Part 1	( AT161328 NO LONGER AVAILABLE), (SUB (2) T154092 AND (2) T154271)
1B	T154271	2	Bushing	-
1C	T154092	2	Plate	-

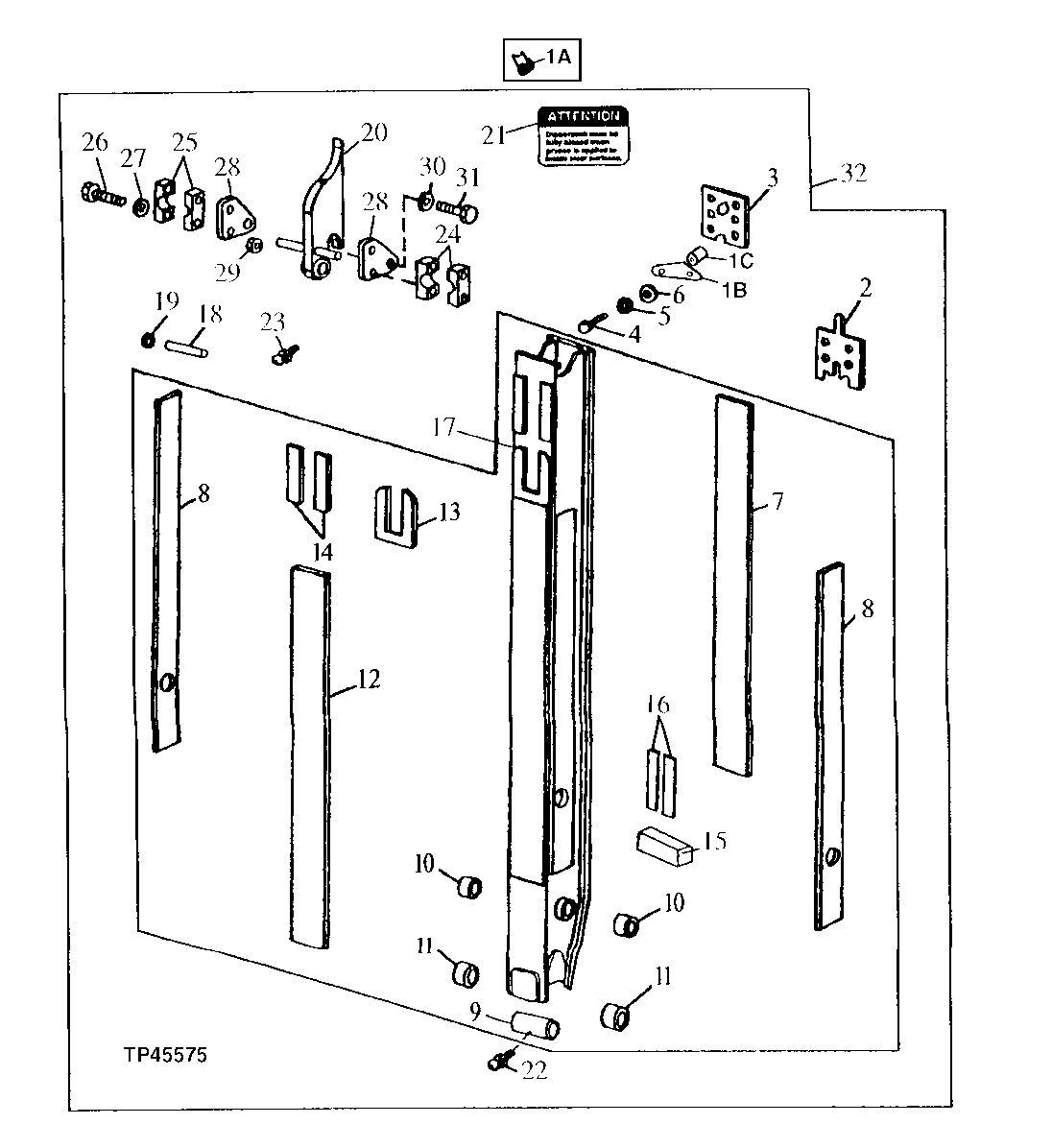

1.5M EXTENDIBLE DIPPERSTICK EXTENSION (787385 - )
