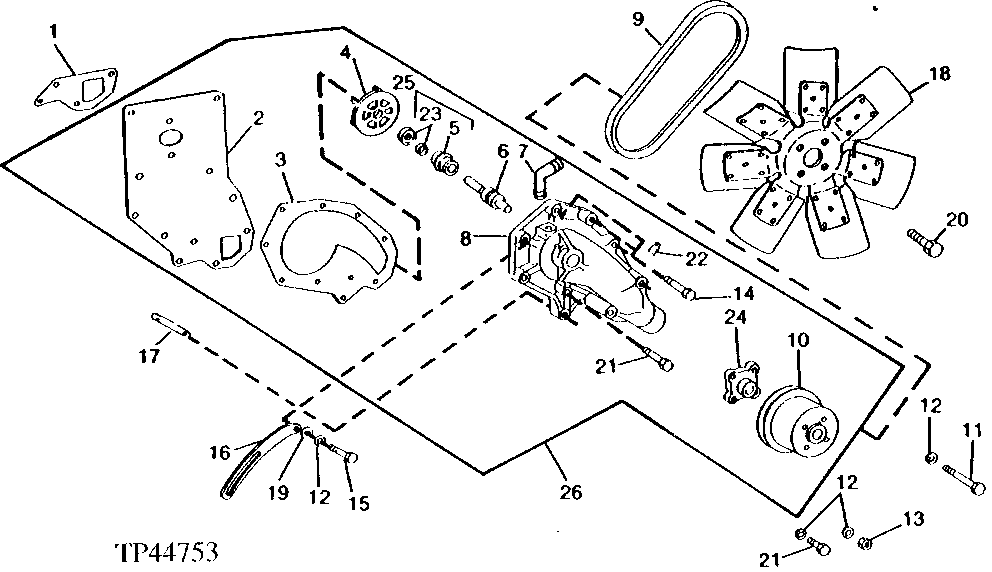

WATER PUMP ASSEMBLY (SERIAL NO. 169346- ) (DIESEL) [01D02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20243	1	Gasket	-
2	R55759	1	COVER	-
3	R55406	1	Gasket	-
4	T30897	1	Impeller	-
5	T27261	1	SEAL	(SUB AR101549)
6	JD9257	1	Ball Bearing	-
7	T19653	1	Elbow Fitting	-
8	AR80107	1	HOUSING	(MARKED R55130) (SUB RE21786)
8	R48993	2	Tube	-
9	T24757	1	V-BELT	-
10	T23628	1	PULLEY	(SUB FOR T30721) (ALSO ORDER (4) 19H3467)
11	19H1726	1	Cap Screw	3/8" X 2-1/4"
12	12H304	4	Lock Washer	3/8", (USE WITH R62371)
13	14H812	1	NUT	3/8"
14	19H3385	4	Cap Screw	1/2" X 1-1/8"
15	19H3065	1	Cap Screw	3/8" X 2"
16	R108404	1	Strap	(SUB FOR T20204 AND R107734)
17	T25701	1	Stud	-
18	AT170040	1	Fan	(SUB FOR AT35158)
19	24H1304	1	WASHER	13/32" X 23/32" X 0.120"
20	19H2676	4	Cap Screw	3/8" X 1", (USE WITH R62371)
20	19H3467	4	Screw	5/16" X 1", (USE WITH T30720)
21	19H1819	1	Cap Screw	3/8" X 2-1/8"
22	15H584	1	Pipe Plug	1/2"
23	AR41691	1	SEAL KIT	-
24	T30720	1	HUB	(SUB FOR R62371) (USE WITH T30721, NOT REQUIRED WITH T23628)
25	AR101549	1	Seal Kit	-
26	AR65261	1	WATER PUMP	(MARKED R55130) (SUB RE25042) (ALSO ORDER R55759 AND (3) 19H2545)

WATER PUMP ASSEMBLY (SERIAL NO. 169346- ) (DIESEL) [01D02]

Нет текстового описания
