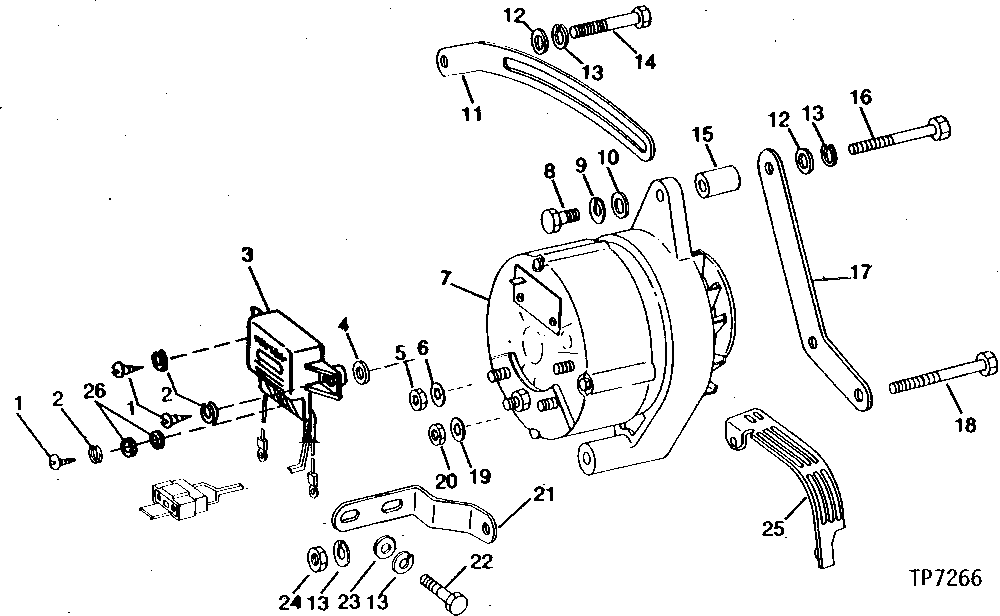

VOLTAGE REGULATOR AND ALTERNATOR ATTACHING PARTS [02E21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44008	3	SCREW	-
2	12H295	3	Lock Washer	0.190"
3	AR78298	1	VOLTAGE REGULATOR	(MOTOROLA NO. 8RF2014C) (SUB FOR AR38459 AND AR52927)
4	R39804	3	WASHER	-
5	14H778	2	Nut	0.190"
6	12H295	3	Lock Washer	0.190"
7	AR38458	1	ALTERNATOR	35 AMP (MOTOROLA NO. A12NJD453) (WITHOUT PRESSURIZER)
7	TY24306	1	ALTERNATOR	(SUB FOR TY1427) (35 AMPERE) (MOTOROLA) (REMANUFACTURED)
7	AR40420	1	ALTERNATOR	55 AMP (MOTOROLA NO. A12NJD604) (WITH PRESSURIZER)
8	19H2705	1	Cap Screw	5/16" X 1"
9	12H303	1	Lock Washer	5/16"
10	24H1136	1	Washer	11/32" X 11/16" X 0.065"
11	R108404	1	Strap	(SUB FOR T20204 AND R107734)
12	24H1304	3	WASHER	13/32" X 23/32" X 0.120"
13	12H304	4	Lock Washer	3/8"
14	19H1726	1	Cap Screw	3/8" X 2-1/4"
15	28H2547	2	Spacer	3/8" X 1"
16	19H2458	2	Cap Screw	3/8" X 3"
17	T20202	1	Bracket	FRONT
18	19H2128	1	CAP SCREW	3/8" X 3"
19	12H297	1	Lock Washer	1/4"
20	14H786	1	Nut	1/4"
21	R38372	1	BRACKET	REAR
22	19H2284	2	Cap Screw	3/8" X 7/8"
23	24H1305	2	Washer	13/32" X 13/16" X 0.065"
24	14H812	1	NUT	3/8"
25	R122848	1	Shield	(SUB FOR R56012)
26	24H1283	2	Washer	7/32" X 1/2" X .048"

VOLTAGE REGULATOR AND ALTERNATOR ATTACHING PARTS [02E21]
