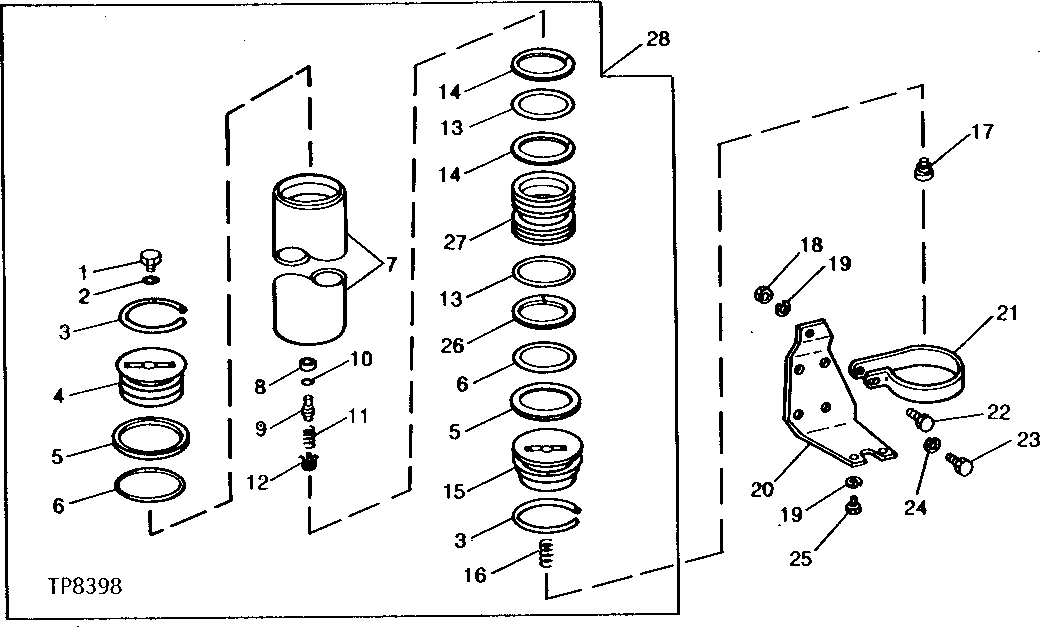

REPLACEMENT HYDRAULIC ACCUMULATOR AND BRACKET (MODEL NO. 38HA1) [01H20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27094	1	Drain Plug	-
2	R26286	1	O-Ring	-
3	R78101	2	SNAP RING	-
4	R48957	1	END	-
5	R78823	2	BACK-UP RING	(SUB FOR R35684, THIS APPLICATION)
6	R86192	2	O-RING	(SUB FOR U12331)
7	R77866	1	HYDRAULIC CYLINDER BARREL	-
8	R60038	1	Packing	-
9	R47085	1	VALVE	-
10	R47087	1	WASHER	-
11	R47086	1	SPRING	-
12	R41877	1	GUIDE	-
13	A4728R	2	O-Ring	-
14	L29015	2	BACK-UP RING	-
15	R47912	1	CAP	-
16	R28084	1	SPRING	-
17	R47913	1	ORIFICE	-
18	14H812	1	NUT	3/8"
19	12H304	3	Lock Washer	3/8"
20	T39887	1	BRACKET	-
21	R35794	1	Clamp	-
22	19H2676	1	Cap Screw	3/8" X 1"
23	19H1356	2	CAP SCREW	5/8" X 1-3/4", (WITH CANOPY)
23	19H1833	2	Cap Screw	5/8" X 1-1/4", (WITHOUT CANOPY)
24	12H294	2	Lock Washer	5/8"
25	19H2284	2	Cap Screw	3/8" X 7/8"
26	R27649	1	BACK-UP RING	-
27	R57103	1	PISTON	-
28	RE11966	1	ACCUMULATOR	(SUB RE29331) (ALSO ORDER R80752 ENGLISH LABEL, R80753 SPANISH LABEL, R80754 FRENCH LABEL AND R82337 GERMAN LABEL AS REQUIRED)

REPLACEMENT HYDRAULIC ACCUMULATOR AND BRACKET (MODEL NO. 38HA1) [01H20]
