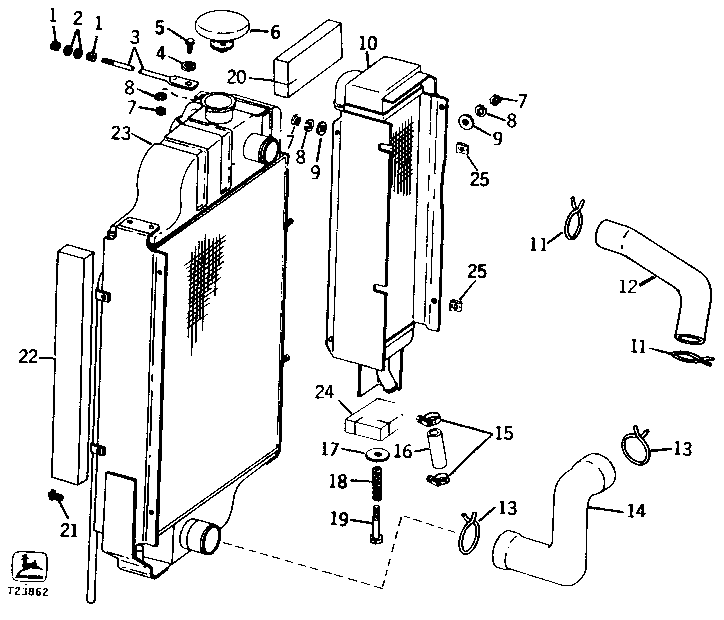

RADIATOR AND TRANSMISSION OIL COOLER [01C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T11234	2	Lock Nut	-
2	24H1305	2	Washer	13/32" X 13/16" X 0.065"
3	T33399	1	EYEBOLT	-
4	24H1122	1	Washer	3/8" X 7/8" X 0.083"
5	19H2664	1	Cap Screw	5/16" X 3/4"
6	AT27585	1	CAP	-
7	14H785	5	Nut	5/16"
8	12H303	5	Lock Washer	5/16"
9	24H1685	4	Washer	11/32" X 47/64" X 0.083"
10	AT35182	1	OIL COOLER	(SUB AT165536 AND T113380 OIL COOLER RELIEF VALVE)
10	AT165536	1	OIL COOLER	(SUB FOR AT33887) HYDRAULIC
11	AR21840	2	Hose Clamp	-
12	T33401	1	HOSE	UPPER (DIESEL)
12	T33370	1	HOSE	(GASOLINE)
13	AR21840	2	Hose Clamp	-
14	T22500	1	HOSE	LOWER
15	AR21839	2	Clamp	(SUB FOR H2742B, THIS APPLICATION)
16	-	1	Part 18	19 MM X 57 MM (3/4" X 2-1/4") CLUTCH HOUSING OIL LINE (MAKE FROM T61939 BULK MATERIAL, CUT TO LENGTH) (SUB FOR T35690)
17	T22381	2	Washer	-
18	R62372	2	Spring	(SUB FOR R34352)
19	19H2458	2	Cap Screw	3/8" X 3"
20	T36226	1	FOAM PAD	-
20	T35773	1	PAD	-
21	AT13740	1	Drain Valve	-
22	-	1	Part 25	(CUT ONE STRIP 20" LONG FROM R35416 STOCK)
23	AT32589	1	RADIATOR	(SUB AT32591)
23	AT32591	1	RADIATOR	-
24	T36499	1	BARRIER	-
25	T37175	2	NUT	-
..	T11847	1	SEALANT	(NO LONGER AVAILABLE)
..	RE12842	1	COOLANT	(.91 KG (32 OZ.) CAN) (SUB FOR T19566)

RADIATOR AND TRANSMISSION OIL COOLER [01C23]

Нет текстового описания
