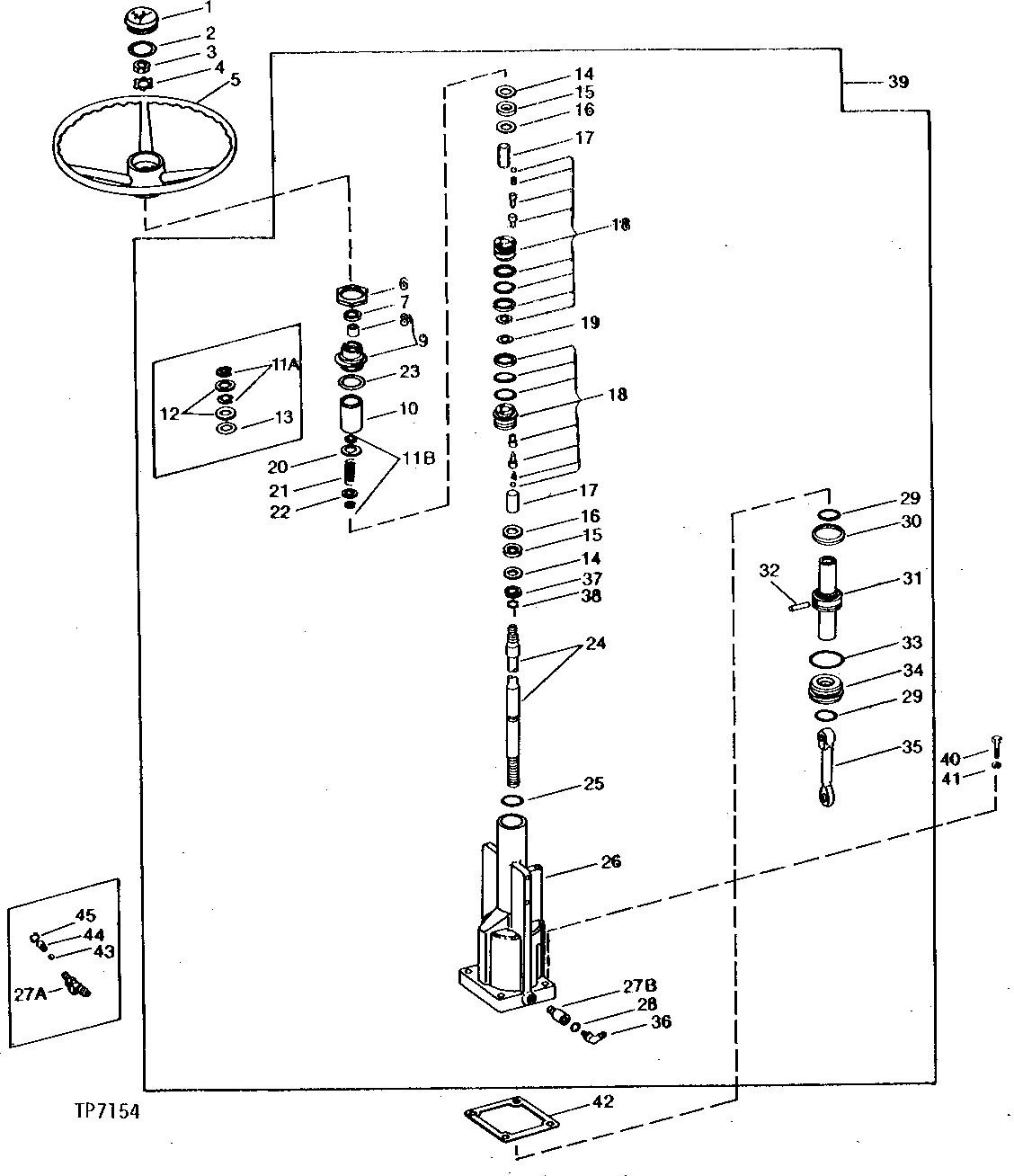

POWER STEERING VALVE, HOUSING, WHEEL AND SHAFT (SERIAL NO. -235785) [01G08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155227	1	Cover	(SUB FOR R47998 OR AL118173)
2	P50631	1	O-Ring	(A) (SUB FOR B3690R, THIS APPLICATION)
3	14H904	1	Nut	3/4"
4	R71650	1	LOCK WASHER	(SUB FOR T17148, THIS APPLICATION)
5	AR78405	1	Steering Wheel	(SUB FOR T22875, THIS APPLICATION)
6	T21718	1	NUT	-
7	T22260	1	SEAL	(A)
8	R27320	1	BUSHING	-
9	AT19858	1	ADJUSTER	-
10	T22823	1	SLEEVE	-
12	T22824	2	BUSHING	(USED WITH T34249 STEERING SHAFT)
13	T22825	6	SHIM	0.13 MM (.005") (USED WITH T34249 STEERING SHAFT)
13	T25741	2	SHIM	0.05 MM (.002") (USED WITH T34249 STEERING SHAFT)
14	T21716	2	WASHER	-
15	JD9832	2	THRUST BEARING	-
16	T25329	2	WASHER	-
17	T25330	2	BUSHING	-
18	AR81610	2	HOUSING	(SUB FOR AT25490)
18	R49982	2	SLEEVE	VALVE OPERATING
18	T25333	1	SHIM	0.05 MM (0.002")
18	T25334	1	SHIM	0.25 MM (0.010")
19	T27409	2	WASHER	-
20	T22824	1	BUSHING	-
21	T13555	1	SPRING	-
22	L29197	1	THRUST WASHER	-
23	B3690R	1	O-Ring	-
24	T34249	1	SHAFT	(SUB T43602 STEERING SHAFT, T13555 SPRING, AND L29197 WASHER)
24	T43602	1	STEERING SHAFT	-
25	T25335	6	O-RING	(A)
26	AT33296	1	HOUSING	(MARKED T31729) (SUB AT72460)
26	AT72460	1	HOUSING	(MARKED T74743 OR T82325) (SUB FOR AT41310)
28	R26448	1	O-Ring	(A)
29	T34248	2	O-Ring	(A)
30	-	1	Part 39	(A) ( T34246 NO LONGER AVAILABLE)
31	T34244	1	PISTON	-
32	T34247	1	PIN	-
33	T34252	1	O-RING	-
33	T35893	1	O-RING	(A)
34	T40194	1	GUIDE	-
34	T35892	1	GUIDE	(SUB T40194)
34	T34251	1	GUIDE	(SUB T35892 AND T35893)
35	T34245	1	TIE ROD ASSEMBLY	-
36	AT35121	1	Elbow Fitting	(USE WITH AT54132)
37	T22824	1	BUSHING	-
38	R35226	1	SNAP RING	-
39	-	1	Part 51	(STEERING) ( AT73462 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
40	19H2735	4	Cap Screw	1/2" X 2"
41	12H301	4	Lock Washer	1/2"
42	T34253	1	GASKET	(A)
43	R26552	1	Ball	(USED WITH AT37206)
44	T38448	1	SPRING	(USED WITH AT37206)
45	T38449	1	RETAINER	(USED WITH AT37206)
..	AT43532	1	KIT	OVERHAUL STEERING VALVE
11A	R35226	3	SNAP RING	(A)
11B	R35226	2	SNAP RING	-
27A	AT37206	1	ELBOW FITTING	(SUB AT54132) (ALSO ORDER AT35121)
27A	AT38033	1	Elbow Fitting	(SUB FOR AR26722, THIS APPLCATION)
27B	AT54132	1	CHECK VALVE	-
