LOADER 7/8 CUBIC AND 1-YARD BUCKETS [02F18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

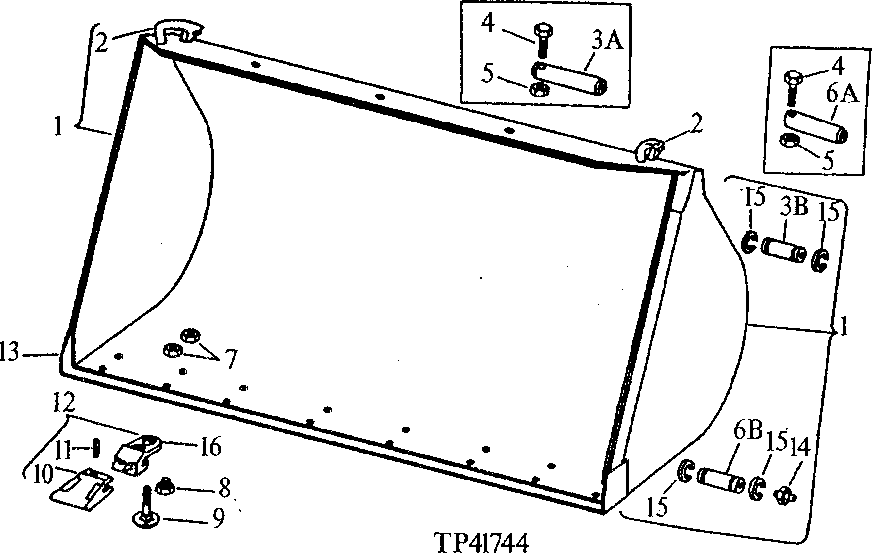

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(A) 0.76 M3 (1 YARD) (INCLUDES ALL PARTS IDENTIFIED BY (A) ( AT39239 NO LONGER AVAILABLE)
1	-	1	Part 1	0.76 M3 (1 YARD) ( AT33118, NO LONGER AVAILABLE)
2	U11773	2	HOOK	-
4	19H2458	4	Cap Screw	3/8" X 3"
5	T11234	4	Lock Nut	3/8"
7	H32811	16	Lock Nut	1/2" (7/8-YARD BUCKET) (SUB FOR U14502)
8	19H2473	2	Cap Screw	1/2" X 1-3/4", (7/8-YARD BUCKET)
8	19H2472	6	Cap Screw	1/2" X 1", (7/8-YARD BUCKET)
9	10H1238	8	Bolt	NO. 3, 1/2" X 2-3/4" (7/8-YARD BUCKET)
10	U13449	8	TOOTH	(7/8-YARD BUCKET)
11	T45155	8	SPRING PIN	(7/8-YARD BUCKET)
12	-	8	Part 16	(7/8-YARD BUCKET) ( AU40885 NO LONGER AVAILABLE)
13	T34095	1	CUTTING EDGE	(A) (7/8-YARD)
13	-	1	Part 18	( PBT34095 USE IF AVAILABLE) WITH HOLES - ALTERNATE FOR T34095
13	T84180	1	CUTTING EDGE	AUXILIARY - FOR USE WITH PBT34095, (USE WITH (8) BP12214 AND (8) 10H1238)
13	T34103	1	CUTTING EDGE	0.76 M3 (1 YARD BUCKET)
13	PBT34103	1	CUTTING EDGE	(WITH HOLES) (ALTERNATE FOR T34103)
13	T84194	1	Cutting Edge	(AUXILIARY) (FOR USE WITH PBT69229) (USE WITH BUCKET MARKED AT66306) (USE WITH (8) U44915, (8) 24M7241 AND (8) 09H1764)
14	T162396	2	Lubrication Fitting	(A) 1/8" STRAIGHT, (SUB FOR JD7759 OR JD7798)
15	U16068	8	Snap Ring	(A)
16	U41344	8	BUCKET TOOTH ADAPTER	-
3A	T34097	2	PIN	(BUCKET TO TILT LINK)
3B	T40638	2	PIN	(A) (BUCKET TO TILT LINK)
6A	T31905	2	PIN	(BUCKET TO LIFT ARM)
6B	AT86429	2	PIN FASTENER	(A) (BUCKET TO LIFT ARM) (WITH GREASE FITTING) (SUB FOR T40637)
