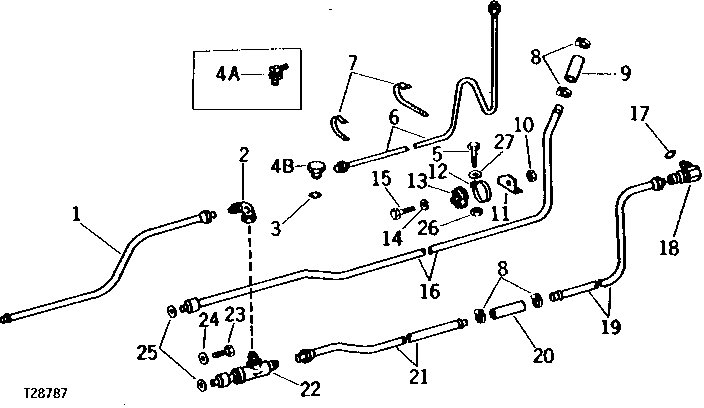

HYDRAULIC OIL LINES (TO PUMP, CLUTCH CONTROL VALVE, FILTER RELIEF VALVE AND RETURN) [01I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT33918	1	OIL LINE	-
2	AT33917	1	ELBOW FITTING	-
3	R26287	1	O-Ring	-
5	19H1914	2	Cap Screw	1/4" X 1"
6	AT25345	1	LINE	(HYDRAULIC PUMP TO BRAKE VALVE HOUSING)
6	AT25345	1	LINE	(HYDRAULIC PUMP TO CLUTCH HOUSING COVER)
6	AT63378	1	LINE	-
7	R44302	7	Tie Band	-
8	AR21839	4	Clamp	(SUB FOR H2742B, THIS APPLICATION)
9	-	1	Part 12	57 MM LONG (3/4" X 2-1/4") (MAKE FROM T61939) (SUB FOR T35690)
10	14H785	2	Nut	5/16"
11	T36048	2	BRACKET	-
12	T36200	2	CLAMP	-
13	T34888	2	CLAMP	-
14	12H303	2	Lock Washer	5/16"
15	19H1849	2	Cap Screw	5/16" X 1-1/4"
16	AT33913	1	OIL LINE	COOLER TO CLUTCH CONTROL VALVE
17	U13639	1	O-Ring	-
18	AT33911	1	ELBOW FITTING	OIL RETURN LINE TO HYDRAULIC PUMP
19	AT33919	1	OIL LINE	-
20	-	1	Part 23	76 MM (1" X 3") (MAKE FROM U11186) (SUB FOR T35691 AND T37798)
21	AT33921	1	OIL LINE	-
22	AT33923	1	ADAPTER FITTING	-
23	19H2676	1	Cap Screw	3/8" X 1", LINES TO CLUTCH CONTROL VALVE
24	R43696	1	Washer	(SUB FOR A4231R)
25	R1662R	2	WASHER	-
26	14H786	2	Nut	1/4"
27	24H1287	2	Washer	9/32" X 5/8" X 0.065"
4A	AT32335	1	ELBOW FITTING	(SUB FOR AR26746)
4B	T21806	1	DRAIN PLUG	-

HYDRAULIC OIL LINES (TO PUMP, CLUTCH CONTROL VALVE, FILTER RELIEF VALVE AND RETURN) [01I01]
