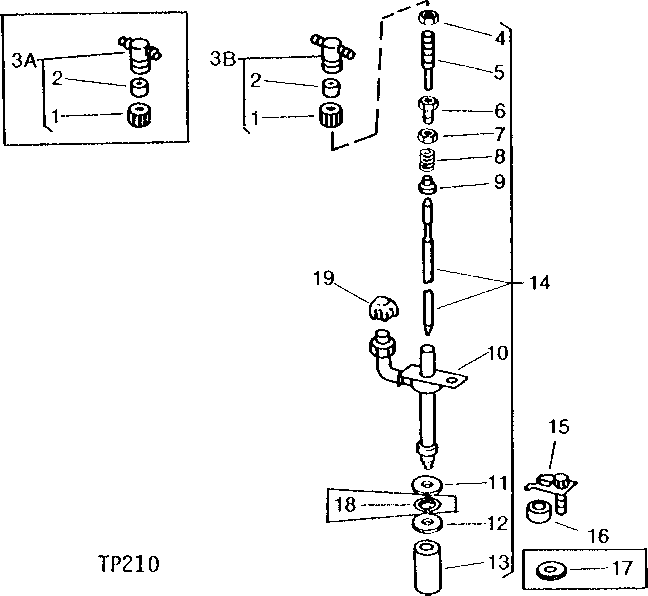

FUEL INJECTION NOZZLE ASSEMBLY (ENGINE SERIAL NO. -575164) [01D23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T29540	1	FITTING	(SUB R79604)
2	T29539	1	WASHER	(SUB R79605)
4	-	1	Part 5	( R47733 NO LONGER AVAILABLE)
5	-	1	Part 6	( R47732 NO LONGER AVAILABLE)
6	-	1	Part 7	( R47734 NO LONGER AVAILABLE)
7	-	1	Part 8	( R46675 NO LONGER AVAILABLE)
8	-	1	Part 9	( R47731 NO LONGER AVAILABLE)
9	-	1	Part 10	( R39886 NO LONGER AVAILABLE)
10	T26870	1	CLAMP	(SUB R67779)
10	R67779	1	CLAMP	-
11	R34764	1	WASHER	(K1) UPPER, (USE WITH AR56290) (SUB RE13887, THIS APPLICATION) (SUB RE32011)
11	R60746	1	WASHER	(K) UPPER, (USE WITH AR73673 AND AR88239) (USE AFTER RE13887 HAS BEEN INSTALLED)
12	R48000	1	Seal	LOWER
13	T24472	1	Cap	-
14	AR49877	1	INJECTION NOZZLE	(SUB AR89564) (ROOSA-MASTER NO. 18742)
14	AR56290	1	INJECTION NOZZLE	(SUB AR89564) (ROOSA-MASTER NOS. 19762 OR 20500)
14	AR73673	1	INJECTION NOZZLE	(SUB AR89564) (ROOSA-MASTER NO. 20631)
14	AR88239	1	INJECTION NOZZLE	(SUB AR89564) (ROOSA-MASTER NO. 22042)
14	SE500822	1	NOZZLE	(CONTAINS (4) REMANUFACTURED NOZZLES)
14	SE501099	1	NOZZLE	(SINGLE PACK) (REMANUFACTURED FOR AR89564)
15	R34760	1	CLAMP	-
16	R34761	1	SPACER	(K1) (SUB RE13887, THIS APPLICATION) (SUB RE32011)
16	R60745	1	SPACER	(K) (USE AFTER RE13887 HAS BEEN INSTALLED)
17	24H1685	1	Washer	11/32" X 47/64" X 0.083"
17	24H1685	1	Washer	11/32" X 47/64" X 0.083"
18	T32252	1	WASHER	-
18	T32252	1	WASHER	-
19	-	1	Part 30	( T31174 NO LONGER AVAILABLE) (USE FOR SERVICING FUEL INJECTION NOZZLE)
3A	AT27622	1	CAP	-
3B	AR85618	1	CAP	(SUB R79604, R79605 AND R79606)
