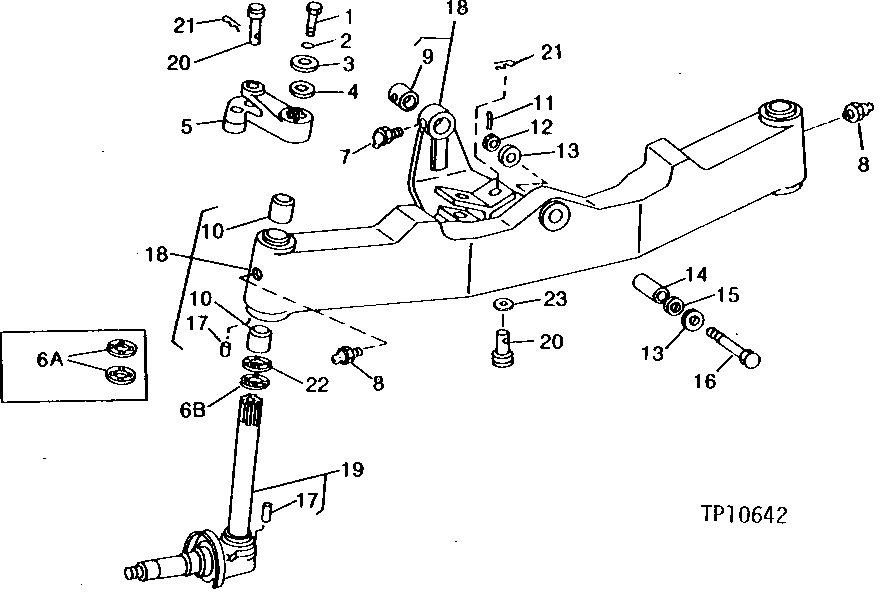

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY (SERIAL NO. 235786- ) [01I08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1439	2	CAP SCREW	5/8" X 3"
2	12H294	2	Lock Washer	5/8"
3	R20135	2	Washer	-
4	R52383	4	THRUST WASHER	-
5	T66939	1	STEERING ARM	L.H. (SUB FOR T56517) (SUB T77483 AND AT76136 AS REQUIRED)
5	T77483	1	STEERING ARM	L.H. (ALSO ORDER AT76136 AS REQUIRED)
5	T71746	1	STEERING ARM	L.H. (SUB T77483 AND AT76136 AS REQUIRED)
5	T54443	1	ARM	(SUB AT46786 TIE ROD, T66938 AND T66939)
5	T77482	1	STEERING ARM	R.H. (ALSO ORDER AT76136 AS REQUIRED)
5	T71745	1	LEVER	R.H. (SUB T77482 AND AT76136 AS REQUIRED)
5	T66938	1	STEERING ARM	R.H. (SUB FOR T56516) (SUB T77482 AND AT76136 AS REQUIRED)
5	T54442	1	ARM	(SUB AT46786 TIE ROD, T66938 AND T66939)
6	R30398	4	Washer	-
7	JD7799	1	Lubrication Fitting	1/8"
8	T162396	2	Lubrication Fitting	(SUB FOR JD7798) 1/8", STRAIGHT
9	T23170	1	BUSHING	-
10	R52188	4	Bushing	-
11	11M7030	1	Cotter Pin	5 X 40 MM
12	14H534	1	NUT	3/4", (USE WITH AT30796 AND AT46780) (SUB FOR 14H902)
12	14M7519	1	Nut	M24, (USE WITH AT76138)
13	T25922	2	WASHER	(USE IF AVAILABLE)
13	T151797	2	Washer	(SUB FOR T25922 OR T134960)
14	T21669	1	BUSHING	-
15	T25921	6	SHIM	.38 MM (.015")
16	T25840	1	CAP SCREW	-
17	34H308	3	Spring Pin	1/4" X 1/2", (USE WITH AT63364)
17	R56457	1	DOWEL PIN	1/4" X 0.610", (USE WITH AT74162)
18	AT46779	1	FRONT AXLE	(MARKED T48227) (SUB AT63364)
18	AT63364	1	FRONT AXLE	(MARKED T66813)
18	AT74162	1	FRONT AXLE	(MARKED T76023)
19	AT46780	2	KNUCKLE	(SUB AT76138, ALSO ORDER AT76136 AS REQUIRED) (USE 14H534 NUT)
19	AT76138	2	Knuckle	(ALSO ORDER AT76136 AS REQUIRED) (USE 14M7519 NUT)
20	T48225	2	PIN FASTENER	-
21	11M7087	2	Cotter Pin	4 X 40 MM
22	T76024	2	THRUST WASHER	(USE WITH AT74162)
23	24H448	1	Washer	25/32" X 1-1/8" X 0.090"
6A	R30398	4	Washer	(USE WITH AT63364)
6B	R30398	2	Washer	(USE WITH AT74162)

FRONT AXLE, SPINDLE AND KNUCKLE ASSEMBLY (SERIAL NO. 235786- ) [01I08]
