ENGINE OVERHAUL GASKET SET (GASOLINE) (SERIAL NO. -192000) [02F08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

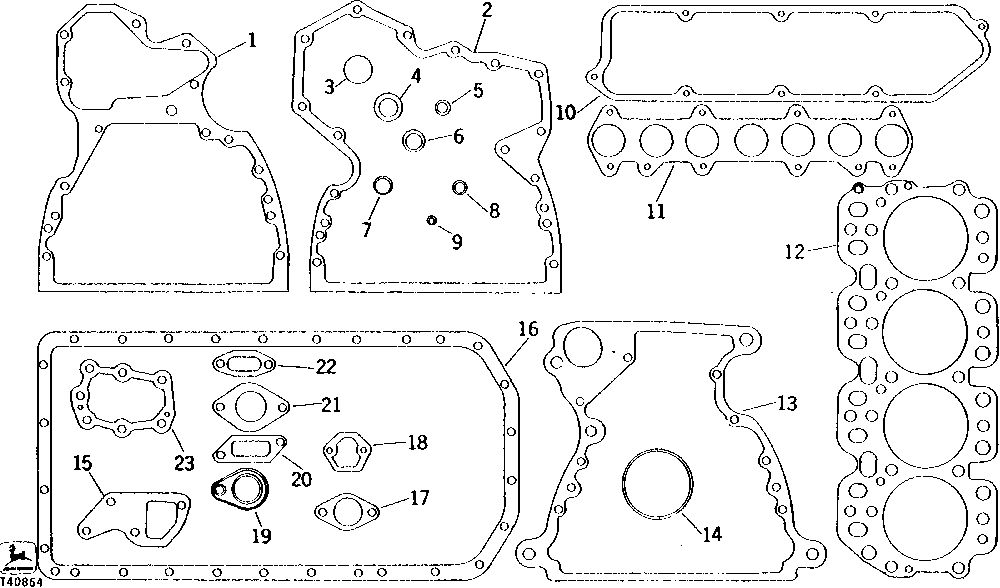

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R131794	1	Gasket	(SUB FOR R90648)
2	T20154	1	GASKET	TIMING GEAR COVER
3	T20328	1	Gasket	OIL FILLER CAP
4	T20112	1	GASKET	DISTRIBUTOR
5	T20304	1	WASHER	TACHOMETER DRIVE SHAFT
6	T13213	1	WASHER	ALUMINUM, OIL DRAIN PLUG
7	R56463	1	O-Ring	VENT TUBE OUTLET (SUB FOR R495R, THIS APPLICATION)
8	R74354	1	O-Ring	OIL PUMP OUTLET TUBE (SUB FOR R27166, THIS APPLICATION)
9	R87627	4	O-RING	INTAKE VALVES, (SUB FOR R27976)
10	AR100596	1	GASKET	ROCKER ARM COVER, (SUB FOR T20075) (ALSO ORDER (8) AR103811 CAP SCREWS WITH WASHERS)
11	R98836	1	GASKET	(SUB FOR T20207) ENGINE MANIFOLD
12	R98461	1	ENGINE CYLINDER HEAD GASKET	CYLINDER HEAD, (SUB FOR T20040 AND R52790)
13	R97351	1	Gasket	(SUB FOR R49516)
13	R49516	1	GASKET	FLYWHEEL HOUSING (USE IF AVAILABLE)
14	T20232	1	WASHER	GOVERNOR HOUSING
15	T20239	1	GASKET	WATER PUMP COVER
16	R119360	1	GASKET	(SUB FOR T24535) OIL PAN
17	T10079	1	GASKET	(USE IF AVAILABLE) (SUB R98821) CARBURETOR
17	R98821	1	GASKET	(SUB FOR T10079)
18	R520618	1	Gasket	FUEL PUMP, (SUB FOR R97350, R27285)
19	T20208	1	GASKET	(USE IF AVAILABALE) (SUB R98837) EXHAUST MANIFOLD
19	R98837	1	GASKET	(SUB FOR T20208)
20	T20212	1	GASKET	THERMOSTAT HOUSING
21	T20215	1	GASKET	THERMOSTAT COVER
22	R97352	1	Gasket	(SUB FOR T20336) OIL FILLER INLET
23	T20273	1	GASKET	TIMING GEAR COVER OPENING COVER
..	RE501582	1	GASKET KIT	(SUB FOR RE40429) (ALSO ORDER (4) AR71617 AND (8) AR103811)

ENGINE OVERHAUL GASKET SET (GASOLINE) (SERIAL NO. -192000) [02F08]
