ELECTRICAL WIRING SYSTEM [02D09]

ELECTRICAL WIRING SYSTEM [02D09]

ELECTRICAL WIRING SYSTEM [02D09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

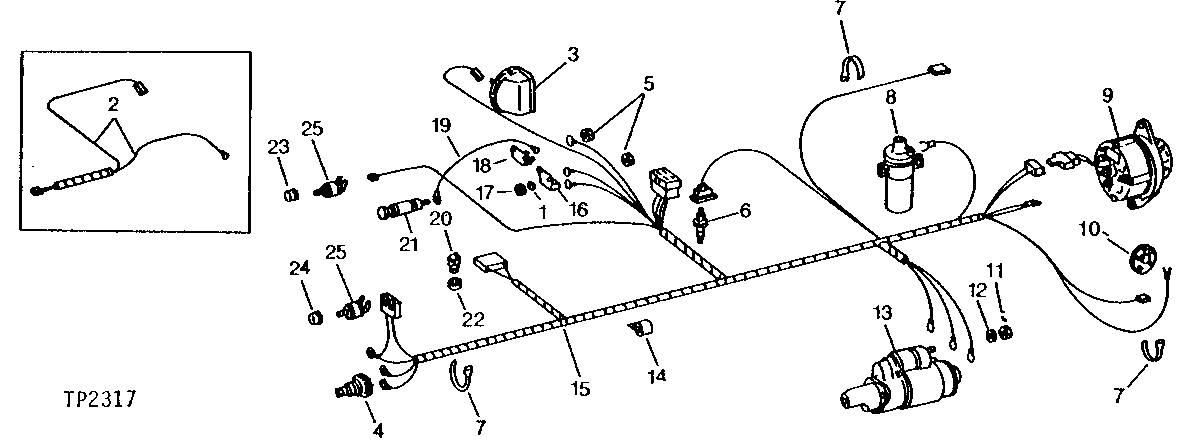

ELECTRICAL WIRING SYSTEM [02D09]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H295	4	Lock Washer	0.190"
2	AT32859	1	WIRING HARNESS	(HORN BUTTON TO HORN AND CIRCUIT BREAKER)
3	AT39043	1	High Note Horn	(SUB FOR R11276)
4	AT25257	1	SWITCH	(SUB AT37390)
4	AT37390	1	SWITCH	-
5	14H631	4	Nut	0.190"
6	AT85174	1	Switch	ENGINE OIL PRESSURE, (SUB FOR AR27977)
7	R44302	1	Tie Band	-
8	AT14385	1	ELECTRICAL COIL	-
9	AR40420	1	ALTERNATOR	55 AMPERE (MOTOROLA NO. A12NJD604)
9	TY24306	1	ALTERNATOR	(SUB FOR TY1427) (35 AMPERE) (MOTOROLA) (REMANUFACTURED)
9	AR38458	1	ALTERNATOR	35 AMPERE (MOTOROLA NO. A12NJD453) (WITHOUT CAB)
10	AT20912	1	SENDER	-
11	14H605	1	Nut	0.164"
12	12H315	1	Lock Washer	0.164"
13	-	1	Part 16	(DELCO-REMY NO. 1998367) (SUB FOR AT25619, DELCO-REMY NO. 1107863 AND 1107871) (DIESEL) (SUB FOR RE19187, DELCO-REMY NO. 1998367) (SUB FOR RE42730) (SUB RE62916)
13	TY6702	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (DELCO-REMY) (INCLUDES SOLENOID COVER KIT) (SUB FOR TY6620)
13	TY26037	1	STARTER MOTOR	(REMANUFACTURED) (DELCO-REMY NO. 1108319) (GASOLINE) (SUB FOR AT18025, TY6706)
13	SE501436	1	STARTER MOTOR	(REMANUFACTURED FOR TY26037)
14	T19935	3	Clamp	-
15	AT54894	1	WIRING HARNESS	(DIESEL) (SUB AT73431 AND RE12169)
15	AT73431	1	WIRING HARNESS	(DIESEL)
15	AT32920	1	WIRING HARNESS	(GASOLINE)
15	AT54893	1	WIRING HARNESS	(GASOLINE)
15	AT32921	1	WIRING HARNESS	(DIESEL)
16	AR28403	1	CIRCUIT BREAKER	(20 AMPERES)
17	14H631	4	Nut	0.190"
18	AN152652	1	CIRCUIT BREAKER	(SUB FOR AT29162) (40 AMPERES)
19	AT78634	1	Wiring Lead	(USE WITH AT78633)
19	-	1	Part 29	(CIGAR LIGHTER TO CIRCUIT BREAKER) (MAKE FROM AR84066 WIRE REPAIR KIT) (SUB FOR AR30054)
20	AT85153	1	SWITCH	SAFETY STARTER, (SUB FOR R36265, AR85323 AND AR89691) (USE WITH AU41461) (SUB RE38390)
20	RE38390	1	SWITCH	-
21	AR48643	1	ELECTRICAL LIGHTER	CIGAR
21	AT78633	1	Housing	(ALSO ORDER AT78634) (SUB FOR AU41461, THIS APPLICATION)
22	T16911	1	SHIM	.38 MM (.015")
23	T55501	1	Cap	HORN SWITCH
24	T58440	1	CAP	ENGINE STARTING
25	R39554	2	Switch	PUSH BUTTON, (SUB FOR AR47373)
