Открытый узел

DECALS (TRACTOR) [02F05]

DECALS (TRACTOR) [02F05]

DECALS (TRACTOR) [02F05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

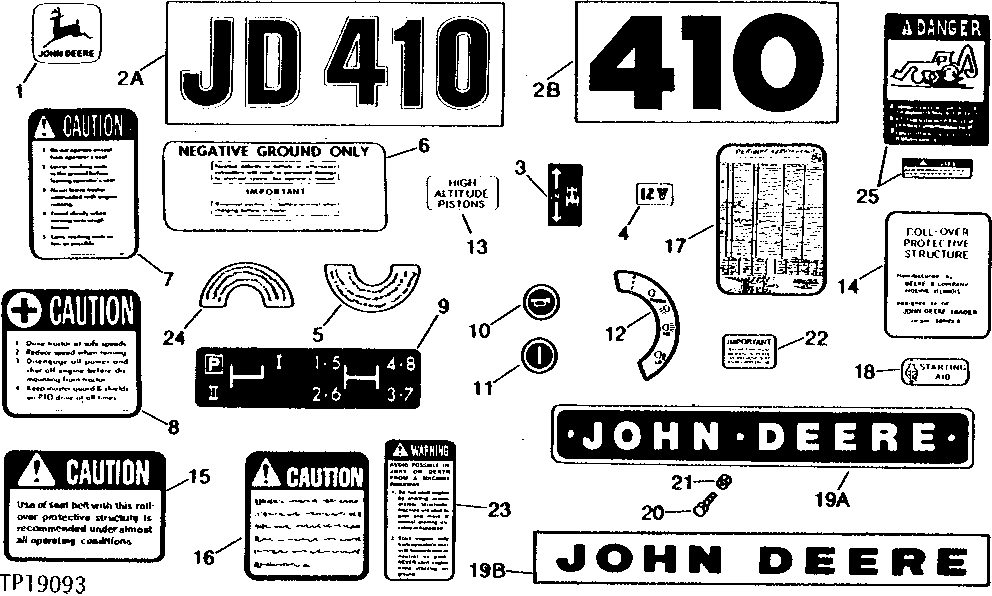

DECALS (TRACTOR) [02F05]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD5623	1	LABEL	(A) LEAPING DEER
1	JD5602	1	LABEL	(SUB FOR JD5272)
1	JD5621	1	LABEL	(SUB FOR JD5276, THIS APPLICATION) (SUB FOR JD5606)
3	R56468	1	LABEL	(SUB FOR T26840)
3	T144114	1	LABEL	(A) (SUB FOR T39805)
4	-	1	Part 8	( A5180R, NO LONGER AVAILABLE)
5	R72816	1	LABEL	(A) (SUB FOR T23858, ALSO ORDER T81015)
6	-	1	Part 10	( T23616, NO LONGER AVAILABLE)
7	U45058	1	LABEL	(A) (SUB FOR T34954, THIS APPLICATION)
8	R42732	1	DECALS	-
9	T33599	1	LABEL	(A) (WITH PARKING BRAKE)
9	T40421	1	LABEL	(A) (WITHOUT PARKING BRAKE)
10	T29392	1	LABEL	-
11	T29393	1	SAFETY SIGN	(A)
12	T36150	1	LABEL	(NEVER USED)
13	A5207R	1	LABEL	-
14	T73134	1	LABEL	(A) (SUB FOR T40322 AND T57549)
15	T146097	1	Label	(A) CAUTION, SEAT BELT, (SUB FOR T146097)
16	R81424	1	Safety Sign	(SUB FOR R42732 AND T146102)
17	T77993	1	LABEL	(SUB FOR T56146 AND T75244)
18	T53707	1	LABEL	(A) (ALSO ORDER T77993 AND (2) T33541)
20	T10671	6	CAP SCREW	-
21	T11234	2	Lock Nut	-
22	T42170	1	Label	INSTRUCTIONAL
23	T146102	1	Label	(A) START SAFETY, (SUB FOR T75512, T146102 AND T146102 OR T146102)
24	T81015	1	LABEL	(A) (SUB FOR T23258, ALSOR ORDER R72816)
25	T146694	1	SAFETY SIGN	(SUB FOR T105776) PARK WARNING
..	AT75796	1	LABEL KIT	REFINISHING DECAL, (SUB FOR AT70075) (ALSO ORDER T77993 AND (2) T71729)
..	-	1	Part 33	REFINISHING DECAL (SUB AT75796, T77993 AND (2) T71729 FOR AT39689)
..	AT61159	1	DECAL KIT	DECAL (FRENCH)
2A	T33541	2	LABEL	-
2B	T71729	2	LABEL	MODEL DESIGNATION
19A	JD5645	2	LABEL	(SUB FOR T33460 AND T42511)
19B	JD5611	1	LABEL	(A)
