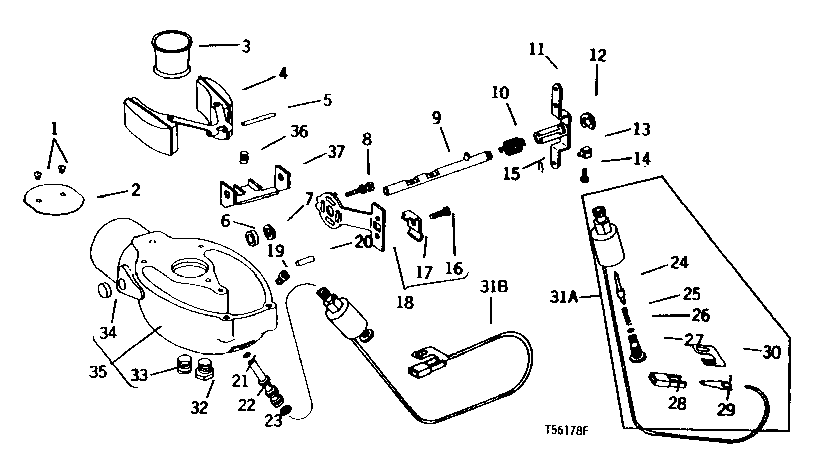

CARBURETOR BOWL ASSEMBLY (MARVEL-SCHEBLER NO. TSX-945SL) [01E14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	15-483	2	SCREW	(SUB FOR B17696) NO. 6 X 1/4"
2	T23524	1	CHOKE	-
3	T12654	1	VENTURI	-
4	30-739	1	FLOAT	-
5	R10211	1	SHAFT	-
6	R10186	1	SEAL	-
7	R10187	1	SHIM	.63 MM (.025")
8	21H1315	2	Screw	0.164" X 3/4", (SUB FOR T23522, ALSO ORDER 12H379)
8	12H379	2	Lock Washer	0.164"
9	AT22990	1	SHAFT	-
10	T23523	1	SPRING	-
11	-	1	Part 12	( AT22989 NO LONGER AVAILABLE)
12	T23529	1	Snap Ring	-
13	R10184	1	SWIVEL	-
14	21H971	1	SCREW	0.164" X 5/16"
15	R10185	1	Spring Locking Pin	-
16	15A295	1	SCREW	-
17	R10188	1	CLIP	-
18	AM117798	1	KIT	(SUB FOR AT22993 AND AM107391)
19	T30519	1	CARBON BRUSH HOLDER	-
20	34H242	1	Spring Pin	1/8" X 7/16"
21	GW46-16-456	1	GASKET	( 16-456 NO LONGER AVAILABLE)
22	T719T	1	NOZZLE	-
23	16-47	1	GASKET	-
24	-	1	Part 25	(USE WITH AT31877) ( AT22991 NO LONGER AVAILABLE) (SUB AR67706)
25	T25152	1	SPRING	(USE WITH AT31877)
26	R34812	1	O-Ring	(SUB FOR T25154) (USE WITH AT31877)
27	T25151	1	SCREW	(USE WITH AT31877)
28	T25156	1	Elec. Connector Terminal	(USE WITH AT31877)
29	T25155	1	ELECTRICAL CONNECTOR ASSY	(USE WITH AT31877)
30	-	1	Part 31	(USE WITH AT31877)
32	R10160	1	PIPE PLUG	-
33	99-4	1	PIPE PLUG	-
34	R10150	1	PLUG	-
35	AT30224	1	HOUSING	-
36	T23532	1	SPRING	-
37	T23536	1	BRACKET	-
..	AT30492	1	KIT	CARBURETOR REPAIR
..	AT29295	1	CARBURETOR	(ALSO ORDER AR67706 SOLENOID ASSEMBLY) (SUB RE39188)
31A	-	1	Part 32	(SUB AR67706, THIS APPLICATION) (SUB FOR AT31877)
31B	AR67706	1	SOLENOID	-
