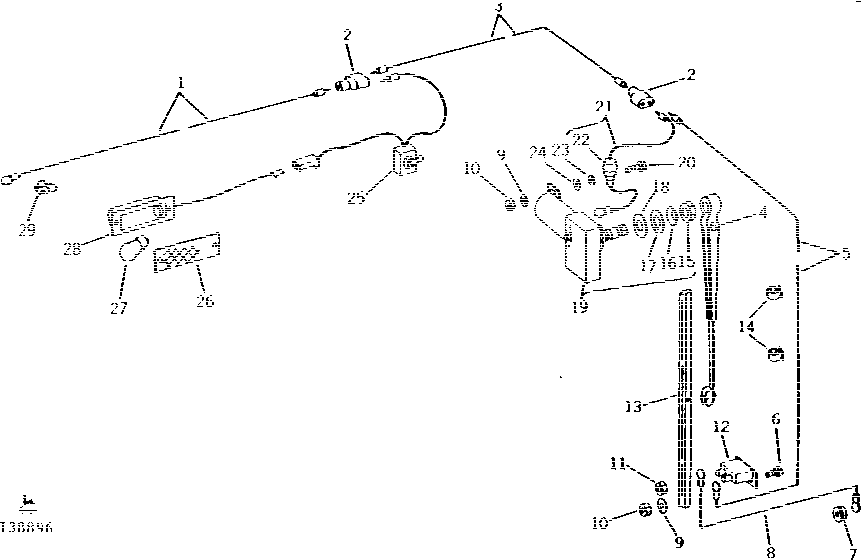

CAB ELECTRICAL SYSTEM (SERIAL NO. -257254) [02D13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AT36377 USE IF AVAILABLE) TO BLOWER
2	AM531T	2	ELECTRICAL CONNECTOR ASSY	-
3	-	1	Part 3	1 194 MM (47") (MAKE FROM R32008 AND (2) R32026 FROM AR30963 WIRE REPAIR KIT)
4	AT35243	1	WIPER ARM	-
5	-	1	Part 5	2 388 MM (94") (MAKE FROM R32008, R32026 AND R32019 FROM AR30963 WIRE REPAIR KIT)
6	21H1317	2	SCREW	0.190" X 5/8"
7	-	1	Part 7	( M16663 NO LONGER AVAILABLE) (SUB FOR P40509)
8	-	1	Part 8	432 MM (17") (MAKE FROM R32008, R32019 AND R32022 FROM AR30963 WIRE REPAIR KIT)
9	12H246	3	LOCK WASHER	0.190"
10	14H778	3	Nut	0.190"
11	14H631	2	Nut	0.190"
12	AN152652	1	CIRCUIT BREAKER	(SUB FOR AT29162)
13	TY16302	1	WIPER BLADE	(ALSO ORDER TY16312)
14	T61876	4	CLIP	(SUB FOR T37623)
15	U46519	1	NUT	-
16	U46518	1	SPACER	-
17	U46520	1	GASKET	-
18	24H1698	1	Washer	21/32" X 1-5/8" X 1/4"
19	AT35245	1	MOTOR	(SUB AT74926) (ALSO ORDER AT74928)
19	AT74926	1	WIPER MOTOR	-
20	21H1195	1	SCREW	0.190" X 7/8"
21	AT36376	1	WIRING LEAD	-
22	AT28061	1	FUSE	5 AMP
23	24H1283	1	Washer	7/32" X 1/2" X 0.049", (OUTSIDE CAB)
24	24H1284	1	Washer	7/32" X 7/8" X 0.065", (INSIDE CAB)
25	-	1	Part 26	( AT36369 USE IF AVAILABLE)
26	N114815	1	LENS	-
27	-	1	Part 28	( AN111881 NO LONGER AVAILABLE)
28	AT36370	1	LAMP	-
29	H64612	3	Clip	-
..	AT42733	1	CAB	(INCLUDES ALL PARTS ON THIS PAGE AND PAGES 60-9, 60-10, 60-11, 65-5A AND ALL PARTS IDENTIFIED BY (A) ON PAGE 60-12 AND AT49552 RIGHT SEALING STRIP AND AT49553 LEFT SEALING STRIP) (SUB FOR AT35586)

CAB ELECTRICAL SYSTEM (SERIAL NO. -257254) [02D13]
