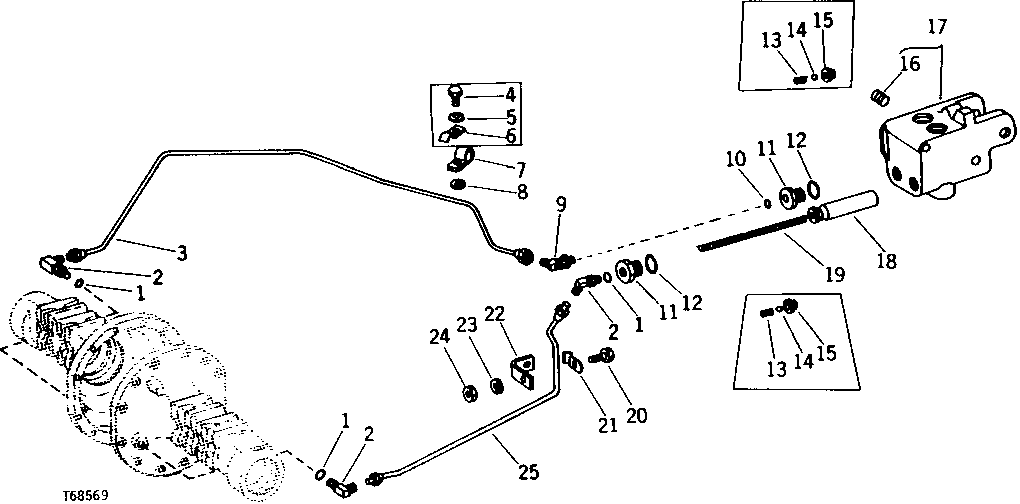

BRAKE VALVE AND OIL LINES (SERIAL NO. 146710- ) [01I13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26287	3	O-Ring	-
2	AT32335	3	ELBOW FITTING	(SUB FOR AR26746)
3	AT37333	1	BRAKE LINE	(A) L.H. (SUB AT41227)
3	-	1	Part 4	(B) L.H. (SUB AT41227)
4	19H1648	2	Cap Screw	3/8" X 3/4"
5	12H304	2	Lock Washer	3/8"
6	R27528	2	CLAMP	-
7	T30367	1	Clamp	-
8	24H1304	2	WASHER	13/32" X 23/32" X 0.120"
8	24H1304	2	WASHER	13/32" X 23/32" X 0.120"
9	AR35223	1	ELBOW FITTING	(A) (B)
10	R26287	1	O-Ring	(A) (B)
11	T21813	2	SEAT	-
12	U12547	2	O-Ring	(SUB FOR (2) F3171R)
13	T21814	2	SPRING	-
14	400R	2	Ball	1/4"
15	T21815	2	RETAINER	-
16	15H560	1	Pipe Plug	1/16"
17	AR53493	2	HOUSING	-
18	-	2	Part 20	(C) R73933 NO LONGER AVAILABLE, (SUB FOR T22100, THIS APPLICATION) (SUB AT184434)
19	T21817	2	SPRING	-
20	19H1936	1	Cap Screw	3/8" X 3/4"
21	R27528	1	CLAMP	-
22	T38500	1	ANGLE	-
23	12H304	1	Lock Washer	3/8"
24	14H812	1	NUT	3/8"
25	AT32723	1	Brake Line	(SUB AT41224)
25	AT41224	1	LINE	R.H.
..	AT39633	1	KIT	(SUB AT41227) LINE BRAKE OIL, L.H.
..	AT41227	1	KIT	LINE BRAKE OIL, L.H.

BRAKE VALVE AND OIL LINES (SERIAL NO. 146710- ) [01I13]
