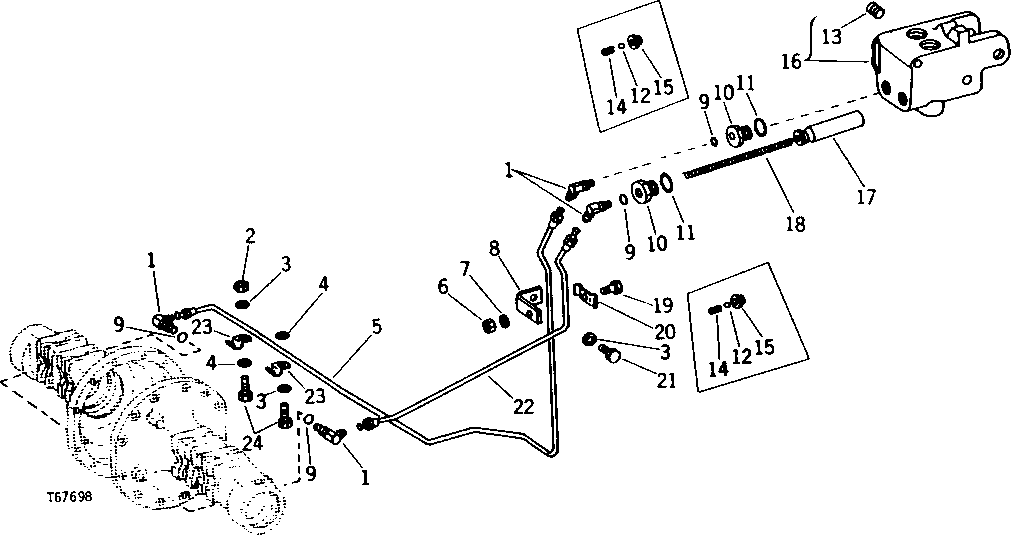

BRAKE VALVE AND OIL LINES (SERIAL NO. -146709) [01I12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT32335	4	ELBOW FITTING	(SUB FOR AR26746)
2	14H812	1	NUT	3/8"
3	12H304	3	Lock Washer	3/8"
4	24M7101	2	Washer	11 X 34 X 3 MM
5	AT32722	1	OIL LINE	(SUB AT41227) (SUB FOR AT39633)
6	14H786	1	Nut	1/4"
7	12H302	1	Lock Washer	1/4"
8	T33548	1	BRACKET	(SUB T38500)
9	R26287	4	O-Ring	-
10	T21813	2	SEAT	-
11	U12547	2	O-Ring	(SUB FOR (2) F3171R)
12	400R	2	Ball	1/4"
13	15H560	1	Pipe Plug	1/16"
14	T21814	2	SPRING	-
15	T21815	2	RETAINER	-
16	AT22968	1	HOUSING	(MARKED U41509) (SUB AR53493)
16	AR53493	1	HOUSING	(MARKED R49664)
17	-	2	Part 18	(A) R73933 NO LONGER AVAILABLE, (SUB FOR T22100, THIS APPLICATION) (SUB AT184434)
18	T21817	2	SPRING	-
19	19H1948	1	Cap Screw	1/4" X 3/4"
20	-	1	Part 21	( P47492, NO LONGER AVAILABLE)
21	19H2676	1	Cap Screw	3/8" X 1"
22	AT32723	1	Brake Line	(SUB AT41224)
23	R27528	2	CLAMP	-
24	19H1648	2	Cap Screw	3/8" X 3/4"

BRAKE VALVE AND OIL LINES (SERIAL NO. -146709) [01I12]
