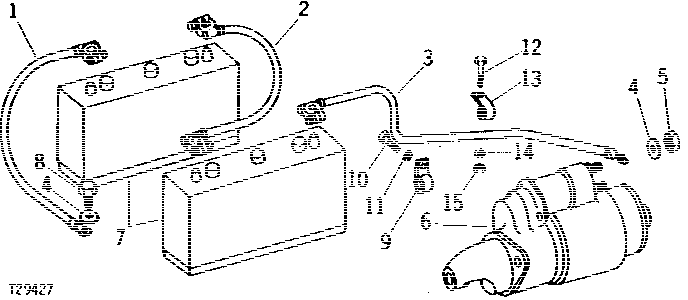

BATTERY CABLES AND STARTING MOTOR [02D21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR45925	1	Battery Cable	-
1	AR38792	1	CABLE	(SUB AR45925)
2	AT165190	1	BATTERY CABLE	(SUB FOR AR45927)
3	R33660	1	BATTERY CABLE	(SUB AT53279)
3	AT53279	1	BATTERY CABLE	-
4	12H304	2	Lock Washer	3/8"
5	14H732	1	Nut	3/8"
6	-	1	Part 8	(DELCO-REMY NO. 1998367) (SUB FOR AT25619, DELCO-REMY NO. 1107863 AND 1107871) (DIESEL) (SUB FOR RE19187, DELCO-REMY NO. 1998367) (SUB FOR RE42730) (SUB RE62916)
6	TY6702	1	STARTER MOTOR	(12-VOLT) (REMANUFACTURED) (DELCO-REMY) (INCLUDES SOLENOID COVER KIT) (SUB FOR TY6620)
6	TY26037	1	STARTER MOTOR	(REMANUFACTURED) (DELCO-REMY NO. 1108319) (GASOLINE) (SUB FOR AT18025, TY6706)
6	SE501436	1	STARTER MOTOR	(REMANUFACTURED FOR TY26037)
7	AR45450	2	BATTERY	6-VOLT, 830 COLD CRANKING AMPS AT 0°F, 340 MINUTE RESERVE CAPACITY AT 250 AMPS
7	AR46115	1	BATTERY	12-VOLT, 425 COLD CRANKING AMPS AT 0°F, 120 MINUTE RESERVE CAPACITY AT 25 AMPS
8	19H2021	1	Cap Screw	3/8" X 5/8"
9	T24802	1	Clip	-
9	R46415	1	CLAMP	-
9	R46414	1	Clamp	(SUB FOR AH78125, THIS APPLICATION)
10	19H1648	1	Cap Screw	3/8" X 3/4"
11	12H304	1	Lock Washer	3/8"
12	19H1936	1	Cap Screw	3/8" X 3/4"
13	R46415	1	CLAMP	-
14	12H304	1	Lock Washer	3/8"
15	14H812	1	NUT	3/8"

BATTERY CABLES AND STARTING MOTOR [02D21]
