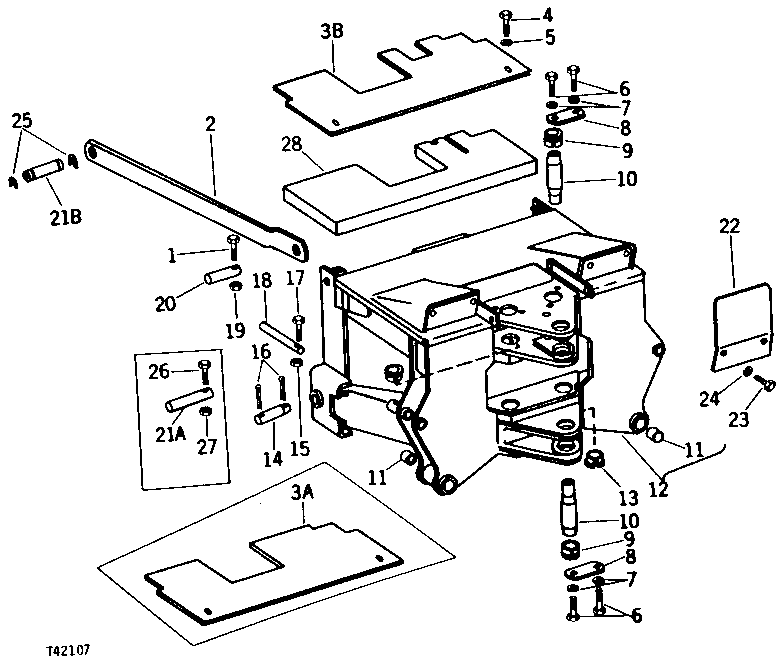

BACKHOE MAIN FRAME AND TIE BARS [02G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1912	2	Cap Screw	3/8" X 3-1/2"
2	T35610	2	STRAP	-
4	19H2676	2	Cap Screw	3/8" X 1"
5	24H1305	2	Washer	13/32" X 13/16" X 0.065"
6	19H2599	8	Cap Screw	5/8" X 2-1/2"
7	12H294	8	Lock Washer	5/8"
8	U43436	4	STRAP	-
9	U43435	4	TAPERED SLEEVE	OUTER
10	U43433	4	PIN FASTENER	-
11	T34301	4	BUSHING	-
12	AT32826	1	MAIN FRAME	-
13	U43434	4	SLEEVE	INNER
14	U43490	2	PIN	-
15	BP12214	2	Lock Nut	1/2", (SUB FOR U12622)
16	11H221	4	COTTER PIN	3/8" X 2-1/2"
17	19H3520	2	Cap Screw	1/2" X 3-1/4"
18	T34559	2	PIN FASTENER	STABILIZER CYLINDER (HEAD END)
19	T11234	2	Lock Nut	3/8"
20	T33715	2	PIN FASTENER	-
22	T35537	2	PLATE	(WITHOUT CAB)
23	19H1648	4	Cap Screw	3/8" X 3/4", (WITHOUT CAB)
24	12H304	4	Lock Washer	3/8", (WITHOUT CAB)
25	U16068	4	Snap Ring	-
26	19H1912	2	Cap Screw	3/8" X 3-1/2"
27	T11234	2	Lock Nut	3/8"
28	T45626	1	PAD	-
3A	T33686	1	PLATFORM	(SUB T44568)
3B	T44568	1	PLATFORM	-
21A	T33714	1	PIN FASTENER	(SUB T40639 AND (2) U16068)
21B	T40639	2	GROOVE PIN	-
