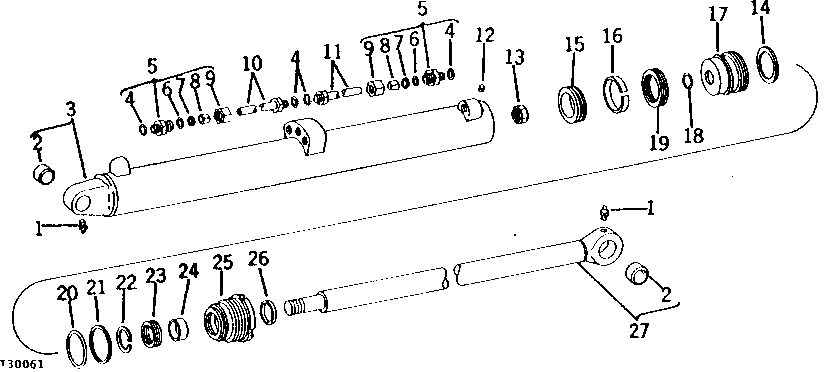

BACKHOE CROWD CYLINDER (SERIAL NO. -335230) [02I02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7759	2	Lubrication Fitting	1/8", STRAIGHT
2	T33659	2	BUSHING	-
3	AT32782	1	HYDRAULIC CYLINDER BARREL	(SUB AR90638, AT63290, AR85327, T66715, AU40911, AU42523 AND R36075)
4	U12547	4	O-Ring	(SUB FOR (4) F3171R)
5	AU42874	2	ADAPTER FITTING	-
6	T13119	2	O-Ring	-
7	U46226	2	SHIM	.76 MM (.030")
8	U46225	2	SLEEVE FITTING	-
9	U46224	2	FITTING	-
10	AT38006	1	TUBE	(SUB FOR AT32786)
11	AT32787	1	LINE	-
12	22H842	1	SET SCREW	1/4" X 5/16"
13	U10750	1	LOCK NUT	-
14	U45231	1	PISTON RING	-
15	U17348	1	PISTON	-
16	U17225	1	WEAR RING	(A)
17	T33664	1	PISTON	-
18	U10289	1	O-Ring	(A)
19	T37379	1	PACKING	(A) (SUB FOR U12974 AND T37379, THIS APPLICATION) (SUB FOR R72828)
20	U10746	1	O-Ring	(A)
20	P46765	1	O-RING	(A)
21	U10748	1	BACK-UP RING	(A)
21	R79001	1	Back-Up Ring	(A) (SUB FOR T42552, THIS APPLICATION)
22	W11229	1	RING	-
23	R76790	1	PACKING	(A) (SUB FOR T35851)
24	U42716	1	WEAR RING	(A)
25	U43378	1	GUIDE	(SUB P46765, R79001 AND R80944)
25	R80944	1	GUIDE	(SUB FOR T57009)
26	U11022	1	SEAL	(A)
27	AT32784	1	BUSHING	(INCLUDES ROD)
..	AT32781	1	CYLINDER	(SUB RE12724, AT63290, T66715, AR85327, AU40911, AU42523 AND R36075)
..	AR105355	1	HYDRAULIC CYLINDER KIT	REPAIR, (SUB FOR AT35936, AT36832, AT55691 AND AR99791)

BACKHOE CROWD CYLINDER (SERIAL NO. -335230) [02I02]
