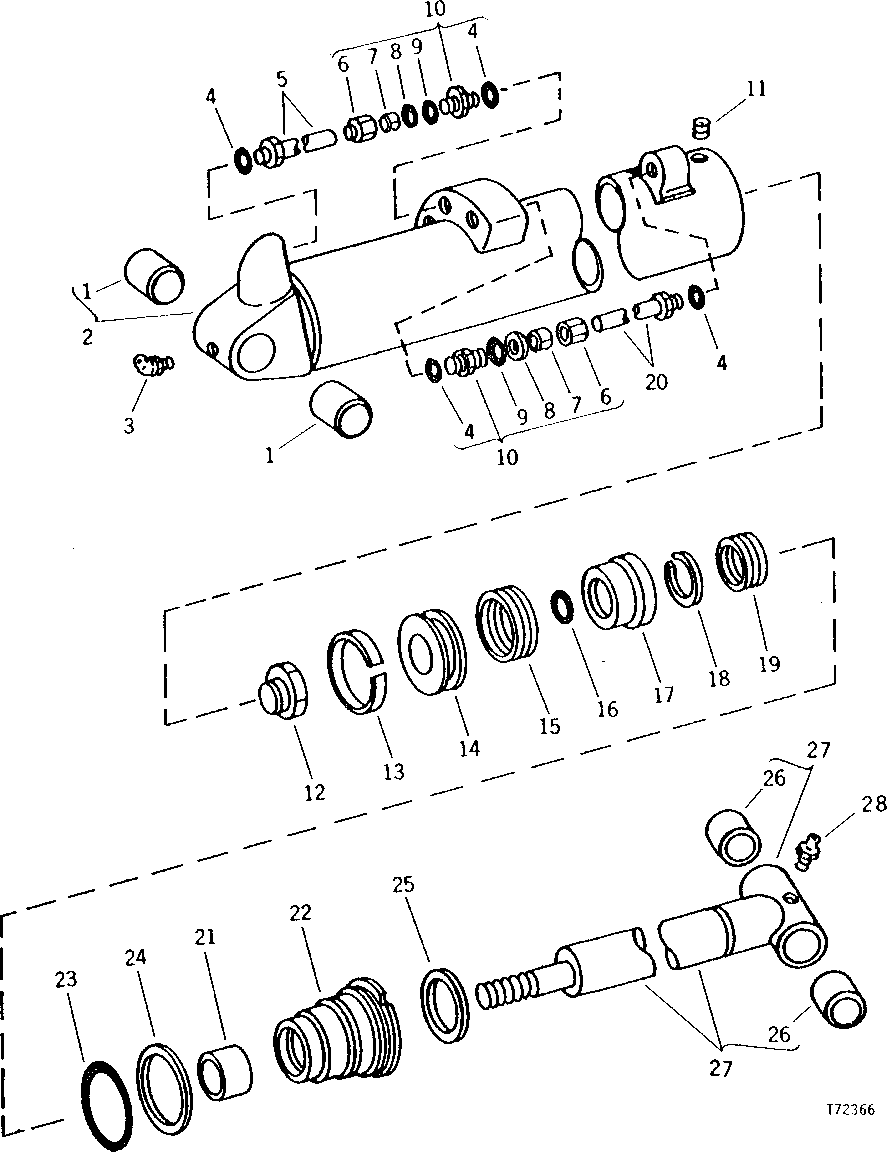

BACKHOE BUCKET CYLINDER (SERIAL NO. -335230) [02I07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U10666	2	BUSHING	-
2	AT52499	1	HYDRAULIC CYLINDER BARREL	(SUB AR90637, AT63290, T66715, AC15595, AT35393 WITHOUT EXTENDIBLE DIPPERSTICK OR AT63293 WITH EXTENDIBLE DIPPERSTICK, AU11753 (2) R26906 AND R27270, THIS APPLICATION)
3	JD7763	1	Lubrication Fitting	1/4"
4	R26906	4	O-Ring	(A)
5	AT32779	1	LINE	-
6	-	1	Part 6	(SUB AU42120)
7	U42972	2	SLEEVE	-
8	U42974	2	BACK-UP RING	-
9	R375R	2	O-Ring	-
10	AU42120	2	ADAPTER FITTING	STRAIGHT
11	22H842	1	SET SCREW	1/4" X 5/16"
12	L2235CU	1	LOCK NUT	-
13	U17217	1	WEAR RING	(A)
14	T36039	1	PISTON	-
15	T38193	1	PACKING	(A) (SUB FOR U12967, THIS APPLICATION) (SUB FOR R72827)
16	R29463	1	O-Ring	(A)
17	U17219	1	PISTON	-
18	W11229	1	RING	-
19	R76790	1	PACKING	(A) (SUB FOR T35851)
20	AT32780	1	LINE	-
21	U41822	1	WEAR RING	(A)
22	T33653	1	GUIDE	(SUB F1430R, R79101 AND R80919)
22	R80919	1	GUIDE	(SUB FOR T57006)
23	U10776	1	O-Ring	(A)
23	F1430R	1	O-Ring	(A)
24	R78993	1	BACK-UP RING	(A) (SUB FOR U10777, THIS APPLICATION)
24	R79101	1	Back-Up Ring	(A) (SUB FOR T42045, THIS APPLICATION)
25	U11022	1	SEAL	(A)
26	T25898	2	BUSHING	-
27	AT32777	1	HYDRAULIC CYLINDER ROD	-
28	JD7759	1	Lubrication Fitting	1/8", STRAIGHT
..	AT32774	1	CYLINDER	(SUB RE12720, AT63290, T66715, AC15595, AT35393 AND R27270 WITHOUT EXTENDIBLE DIPPERSTICK OR AT63293 WITH EXTENDIBLE DIPPERSTICK, THIS APPLICATION)
..	AT36833	1	KIT	(SUB FOR AT35937)
