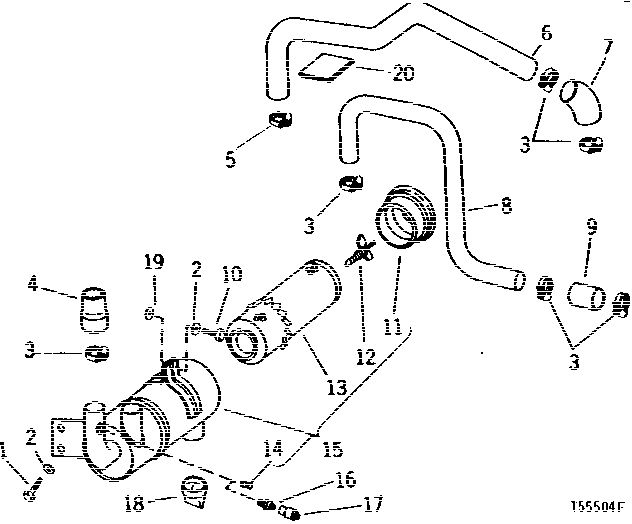

AIR CLEANER, AIR INTAKE PIPES AND HOSES (SERIAL NO. -387066) [01C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2021	2	Cap Screw	3/8" X 5/8"
2	12H304	3	Lock Washer	3/8"
3	AR21999	3	Hose Clamp	(DIESEL)
3	AR21999	4	Hose Clamp	(GASOLINE)
4	T31144	1	HOSE	AIR INTAKE PIPE, FRONT (DIESEL)
4	R55266	1	HOSE	-
4	T23084	1	HOSE	(GASOLINE)
5	AR21841	1	Clamp	(DIESEL)
6	T33169	1	PIPE	(SUB FOR AT30989) (ALSO ORDER T22385) (DIESEL)
7	T11586	1	HOSE	REAR (DIESEL)
8	AT32436	1	PIPE	(GASOLINE) (NO LONGER AVAILABLE, ORDER T22385 AND T33168)
9	R56551	1	Hose	(SUB FOR T21703) (GASOLINE)
10	19H2284	1	Cap Screw	3/8" X 7/8"
11	AT81398	1	COVER	(SUB FOR AT24438)
12	AT24437	1	WING SCREW	-
13	AT20728	1	FILTER ELEMENT	-
14	15H638	1	Pipe Plug	1/8", (WITHOUT RESTRICTION INDICATOR)
15	AL28179	1	AIR CLEANER	(SUB FOR AT20727, THIS APPLICATION)
16	AR44361	1	Fitting	(WITH RESTRICTION INDICATOR)
17	AT25983	1	Air Restriction Indicator	(DIESEL)
17	AT26536	1	AIR RESTRICTION INDICATOR	(GASOLINE)
18	T23263	1	Valve	(MADE IN GERMANY)
19	M1335T	1	WASHER	-
20	T22385	1	PAD	(NO LONGER AVAILABLE)
..	-	1	Part 25	AIR CLEANER RESTRICTION (DIESEL) ( AT23508 USE IF AVAILABLE)

AIR CLEANER, AIR INTAKE PIPES AND HOSES (SERIAL NO. -387066) [01C13]
