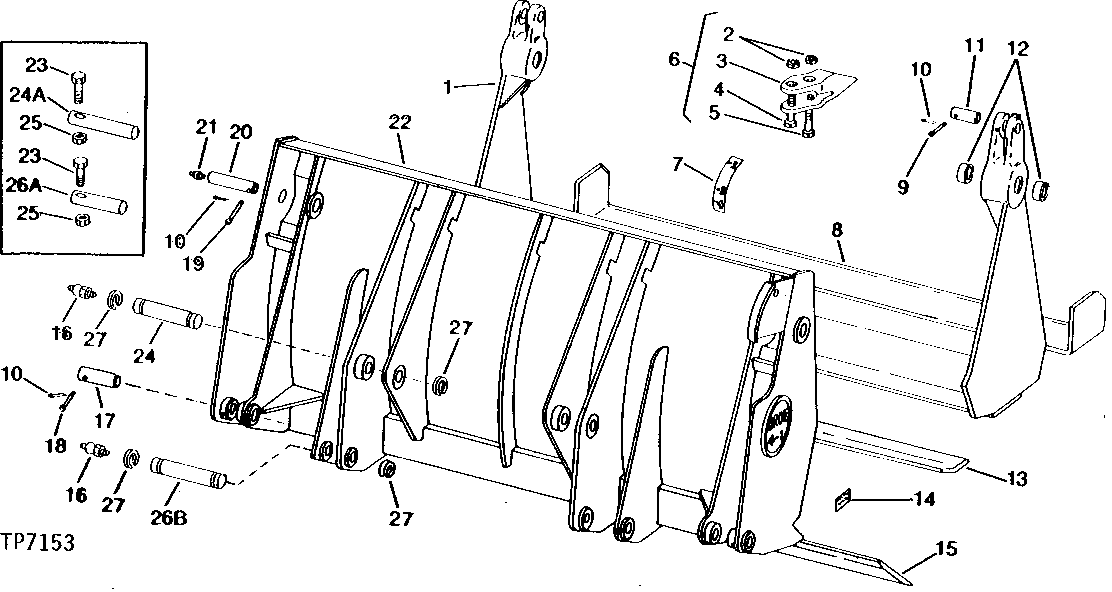

7/8-CUBIC YARD DROTT 4-IN-1 BUCKET [02F20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	S57144	1	JAW	(A)
2	S4224	14	NUT	(A) 1/2"
3	S26446	7	TOOTH	(A)
4	S15674	7	BOLT	(A) 1/2" X 2"
5	S15675	7	BOLT	(A) 1/2" X 2-1/4"
6	S26445	7	TOOTH	(A)
7	S74236	1	DECAL	(A)
8	S209655	1	CUTTING EDGE	(A)
9	S10784	2	PIN FASTENER	(A) 3/8" X 3-1/16"
10	S4627	6	COTTER PIN	(A) 1/8" X 2"
11	S204122	2	PIN FASTENER	(A)
12	S23904	4	BUSHING	(A)
13	S79630	1	CUTTING EDGE	(A)
14	S45226	2	DECAL	(A)
15	S79594	1	CUTTING EDGE	(A)
16	T162396	4	Lubrication Fitting	1/8", STRAIGHT, (SUB FOR JD7759 OR JD7798)
17	S67267	2	PIN FASTENER	(A)
18	S10778	2	PIN FASTENER	(A) 3/8" X 2-3/4"
19	S10786	2	PIN FASTENER	(A) 3/8" X 3-1/2"
20	S204178	2	PIN FASTENER	(A)
21	S12031	1	LUBRICATION FITTING	(A)
22	S601067	1	BLADE	(A)
23	19H2458	4	Cap Screw	3/8" X 3"
25	T11234	4	Lock Nut	-
27	U16068	8	Snap Ring	-
24A	T34097	2	PIN	-
24B	T40638	2	PIN	-
26A	T31905	2	PIN	-
26B	AT86429	2	PIN FASTENER	(WITH GREASE FITTING) (SUB FOR T40637)

7/8-CUBIC YARD DROTT 4-IN-1 BUCKET [02F20]
