Открытый узел

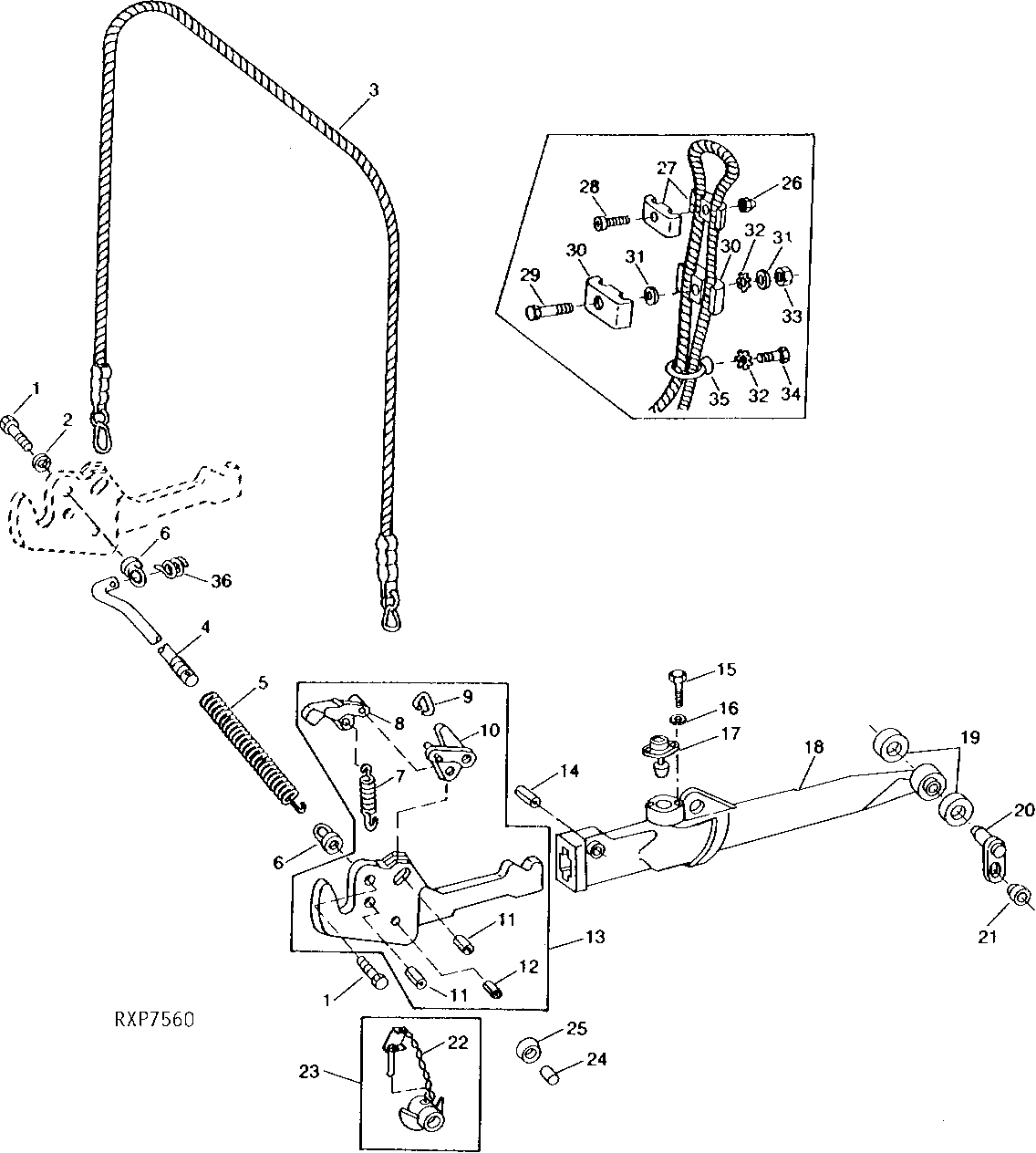

Three-Point Hitch Hook Draft Links (European Version)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7378	2	Cap Screw	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M8 X 45
2	L55222	1	Lock Washer	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) (SUB FOR L29306)
3	AL31983	1	Cable	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
4	AL76943	1	Rod	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) (SUB FOR AL28691)
5	L32997	1	Spring	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
6	14M7284	2	Nut	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M8
7	L35036	2	Spring	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
8	L40811	2	Pawl	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
9	L35037	2	Bail	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
10	L40809	2	LEVER	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
11	34M7101	4	Spring Pin	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) 13 X 36 mm
12	34M7042	2	Spring Pin	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) 6 X 40 mm, 6 X 36 MM
13	AL39084	1	DRAFT LINK END	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) RH (SUB RE44149 AND RE44148)
13	AL39083	1	DRAFT LINK END	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) LH (SUB RE44149 AND RE44148)
14	34H371	2	Spring Pin	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) 1/2" X 2"
15	19H1227	4	Cap Screw	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) 1/4" X 1/2"
16	12H302	4	Lock Washer	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) 1/4"
17	RE11578	2	Lock	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) (SUB FOR AR90084)
18	AR70355	1	Drag Link	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) LH (MARKED R85871)
18	AR70354	1	Drag Link	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) RH (MARKED R85870)
19	R26608	4	Washer	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
20	AR93639	2	Pin Fastener	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
21	AR78289	2	Cap Screw	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
22	AL39416	2	Quick Lock Pin	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
23	AL38986	2	Guide	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
24	L40793	2	Bushing	(CATEGORY III/II) (4055 (-003934)) (4255 (-004573)) (4455 (-008193))
25	L40829	2	Ball	(CATEGORY III) (4055 (-003934)) (4255 (-004573)) (4455 (-008193))
26	14M7329	1	Lock Nut	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M6
27	L39978	2	Clamp	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
28	21M7206	1	Screw	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M6 X 20
29	19M6755	1	Cap Screw	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M6 X 35
30	L39905	2	Clamp	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))
31	24M7088	2	Washer	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) 6.600 X 12 X 1.600 mm
32	12M6678	2	Lock Washer	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) 8.400 mm
33	14M7272	1	Nut	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M6
34	19M7162	1	Cap Screw	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M8 X 16
35	14M7284	3	Nut	(4055 (-003934)) (4255 (-004573)) (4455 (-008193)) M8
36	R80436	1	Ring	(4055 (-003934)) (4255 (-004573)) (4455 (-008193))

Three-Point Hitch Hook Draft Links (European Version)

Нет текстового описания
