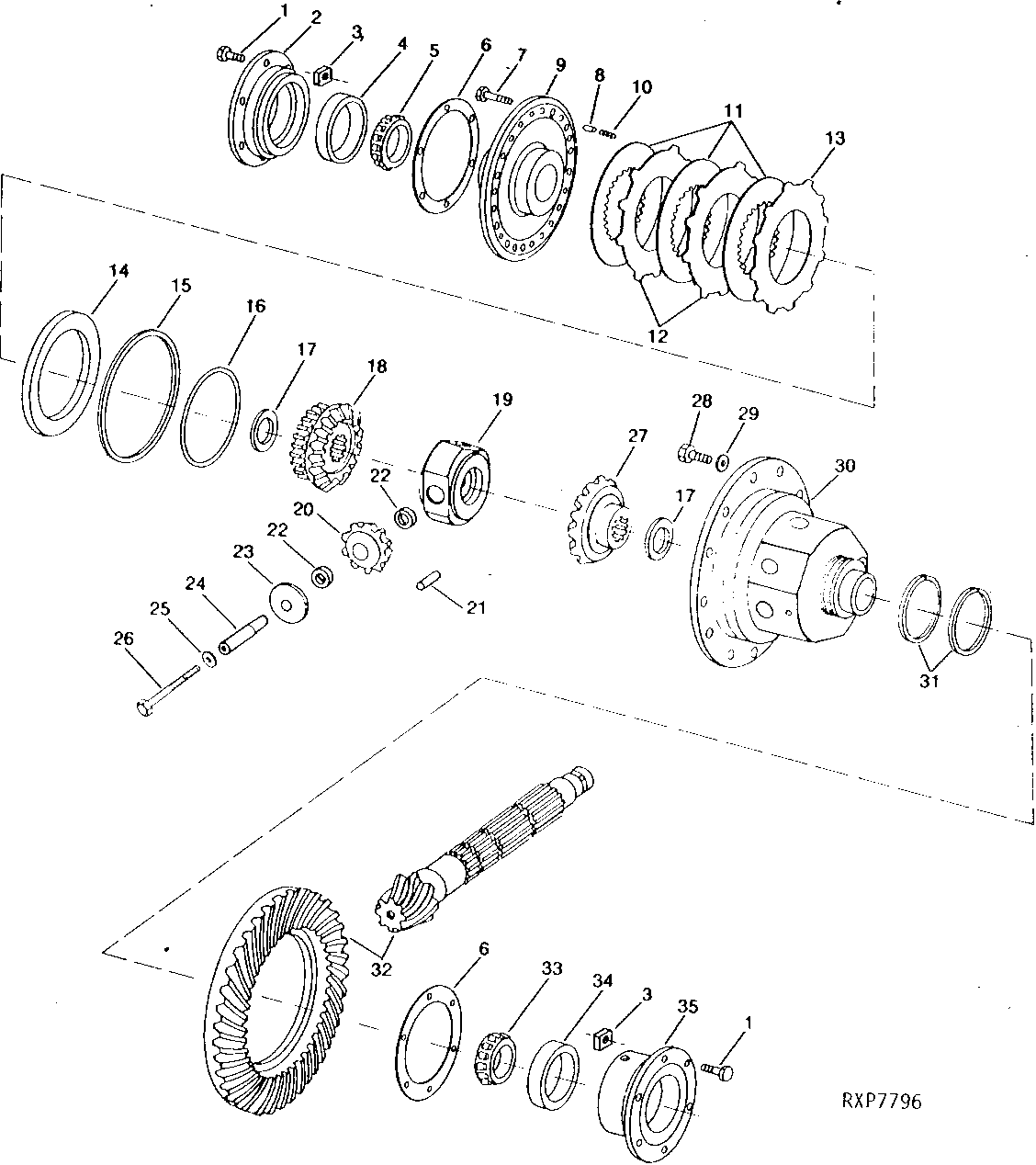

DIFFERENTIAL (QUAD-RANGE TRANSMISSION)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R112882	12	Cap Screw	-
2	R73266	1	BEARING HOUSING W/O BEARING	-
3	14H823	2	NUT	1/2"
4	JD9118	1	Bearing Cup	-
5	JD9055	1	Bearing Cone	-
6	R46323	1	Shim	TK=0.08 MM (.003")
6	R46324	1	Shim	TK=0.13 MM (.005")
6	R46325	1	Shim	TK=0.25 MM (.010")
7	R40236	12	Cap Screw	-
8	34H311	3	Spring Pin	1/4" X 7/8"
9	R94632	1	Cover	-
10	R34863	3	SPRING	-
11	RE29428	3	DISK	ORDER RE294023
11	RE294023	3	Disk	-
12	R34858	2	Clutch Plate	-
13	R34857	1	Clutch Plate	-
14	R34855	1	PISTON	-
15	R41017	1	WASHER	-
16	R44328	1	WASHER	-
17	R77145	2	WASHER	-
18	R66715	1	Bevel Gear	-
19	R93019	1	Hub	(SUB (3) R134415, R134268 AND (3) R134414)
20	R134726	3	Pinion	(SUB FOR R68170)
21	R68171	69	Needle Roller	-
22	R68167	6	Washer	-
23	R59460	3	Thrust Washer	-
24	R67783	3	SHAFT	(SUB (3) R134415, R134268 AND (3) R134414)
25	R57696	3	Washer	-
26	R89836	3	BOLT	-
27	R63477	1	Bevel Gear	-
28	R41048	12	CAP SCREW	-
29	R47172	10	Washer	-
30	AR88776	1	HOUSING	(MARKED R67843)
31	R46326	2	Ring	-
32	RE23268	1	Gear	(MARKED R83549 AND R83550) (ORD W/ R33413, R33414, R33415, R35365, R35366 AND R35367)
32	RE23269	1	Gear	(MFWD) (MARKED R83551 AND R83550) (ORD W/ R33413, R33414, R33415, R35365, R35366 AND R35367)
33	JD8954	1	Bearing Cone	-
34	JD8259	1	Bearing Cup	-
35	R46448	1	BEARING HOUSING W/O BEARING	-
..	AR48800	1	BEARING HOUSING W/O BEARING	(INCLUDES R46448 AND JD8259)
..	AR95424	1	BEARING HOUSING W/O BEARING	(INCLUDES R73266 AND JD9118)
