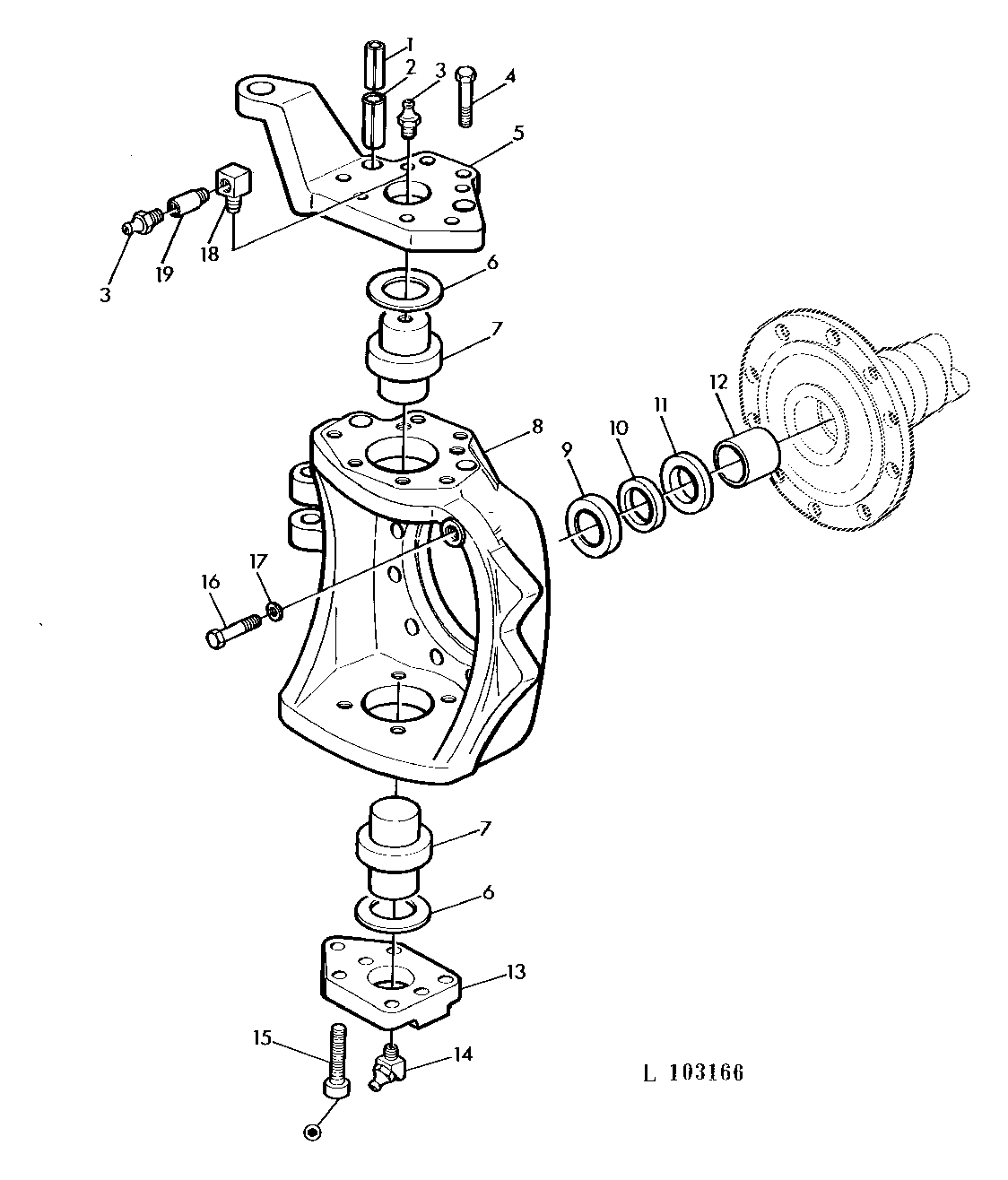

MECH.FRONT WHEEL DRIVE-KNUCKLE HOUSING [02D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34M7054	4	Spring Pin	10X50MM
2	34M7122	4	Spring Pin	16X50MM
3	58M5574	2	Lubrication Fitting	-
4	19M7770	12	Screw	M14X50
5	L40587	1	LEVER	(B) (C) LH
5	L40588	1	LEVER	(B) (C) RH
6	L40594	1	WASHER	(B) (C) 4,55MM
6	L40593	1	WASHER	(B) (C) 4,5MM
6	L40592	1	WASHER	(B) (C) 4,45MM
6	L40591	1	WASHER	(B) (C) 4,4MM
6	L40590	1	WASHER	(B) (C) 4,35MM
6	L40589	1	WASHER	(B) (C) 4,3MM
6	L40650	1	WASHER	(B) (C) 4,25MM
6	L40648	1	WASHER	(B) (C) 4,15MM
6	L40599	1	WASHER	(B) (C) 4,1MM
6	L40598	1	WASHER	(B) (C) 4,05MM
6	L40597	1	WASHER	(B) (C) 4,0MM
6	L40596	1	WASHER	(B) (C) 3,95MM
6	L40595	1	WASHER	(B) (C) 3,9MM
6	L40649	1	WASHER	(B) (C) 4,2MM
7	R75849	4	KINGPIN	-
8	L40585	1	HOUSING	LH
8	L40586	1	HOUSING	RH
9	L38493	2	ROUND RETAINER	-
10	L38494	2	RING	-
11	AL37300	2	SEAL	-
12	R75847	2	BUSHING	-
13	L39773	2	COVER	-
14	58M7011	2	LUBRICATION FITTING	-
15	19M7878	8	Screw	M14X35
16	R75390	2	SCREW	-
17	R75408	1	WASHER	1,5MM (ORD L30695)
17	R75407	1	WASHER	2,0MM (ORD L30695)
17	L30695	1	Washer	2,25MM
17	R75406	1	WASHER	2,5MM (ORD L30695)
17	R75852	1	WASHER	3,0MM (ORD L30695)
18	L39876	2	ELBOW FITTING	(A)
19	L36579	2	EXTENSION	(A)
