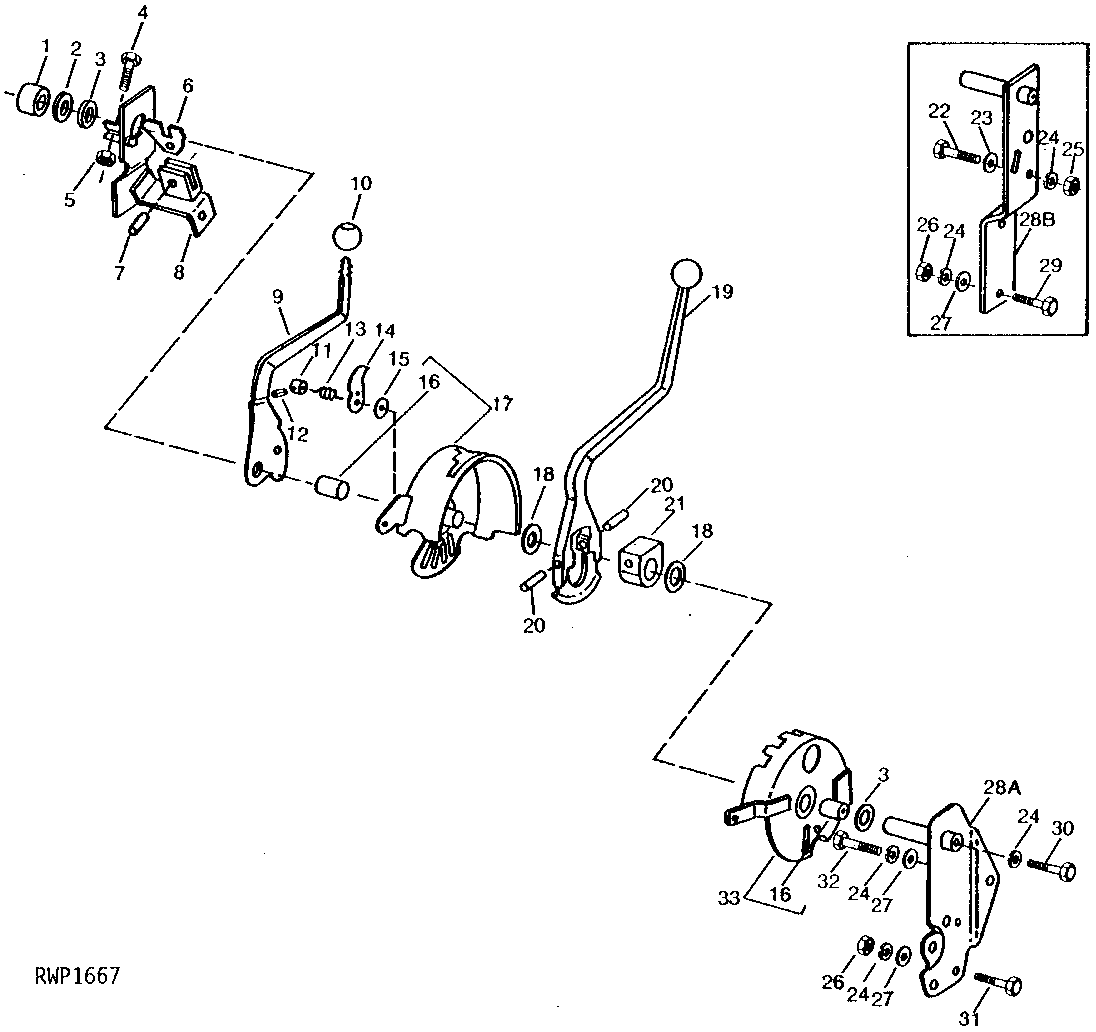

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT (SYNCRO-RANGE) (CREEPER TRANSMISSION) (TRACTOR SERIAL NO. 006700- ) [02J07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R55554	1	SPACER	-
2	24H1422	1	Shim	0.018"
3	R42127	2	Washer	-
4	19H1849	1	Cap Screw	5/16" X 1-1/4"
5	14H611	1	Nut	5/16"
6	R52882	1	LATCH	-
7	34H348	1	Spring Pin	3/8" X 1"
8	AR62259	1	SUPPORT	-
8	AR62258	1	SUPPORT	(A)
8	R57449	1	Pin Fastener	-
9	AR89782	1	LEVER	(SUB FOR AR64909)
10	R56416	1	KNOB	-
11	R55558	1	CAP	-
12	34H245	1	Spring Pin	1/8" X 5/8"
13	R55555	1	SPRING	-
14	R55556	1	PAWL	-
15	24H1305	1	Washer	13/32" X 13/16" X 0.065"
16	R26182	1	Bushing	-
17	AR64910	1	QUADRANT	-
18	R26187	2	WASHER	-
19	R55553	1	LEVER	-
20	34H316	2	Spring Pin	1/4" X 1-1/2"
21	R53247	1	PIVOT	-
22	19H2552	1	CAP SCREW	3/8" X 1-1/8"
23	24H1305	1	Washer	13/32" X 13/16" X 0.065"
24	12H304	5	Lock Washer	3/8"
25	14H1076	1	Nut	3/8"
26	14H1076	1	Nut	3/8"
27	24H1305	2	Washer	13/32" X 13/16" X 0.065"
29	19H2128	2	CAP SCREW	3/8" X 3"
30	19H1731	1	Cap Screw	3/8" X 1"
31	19H2552	1	CAP SCREW	3/8" X 1-1/8"
32	19H1731	2	Cap Screw	3/8" X 1"
33	AR89779	1	QUADRANT	(SUB FOR AR64913)
28A	AR56230	1	SUPPORT	(A)
28B	AR54659	1	SUPPORT	-

TRANSMISSION SHIFTER CONTROL LEVERS, LINKAGE AND SUPPORT (SYNCRO-RANGE) (CREEPER TRANSMISSION) (TRACTOR SERIAL NO. 006700- ) [02J07]
