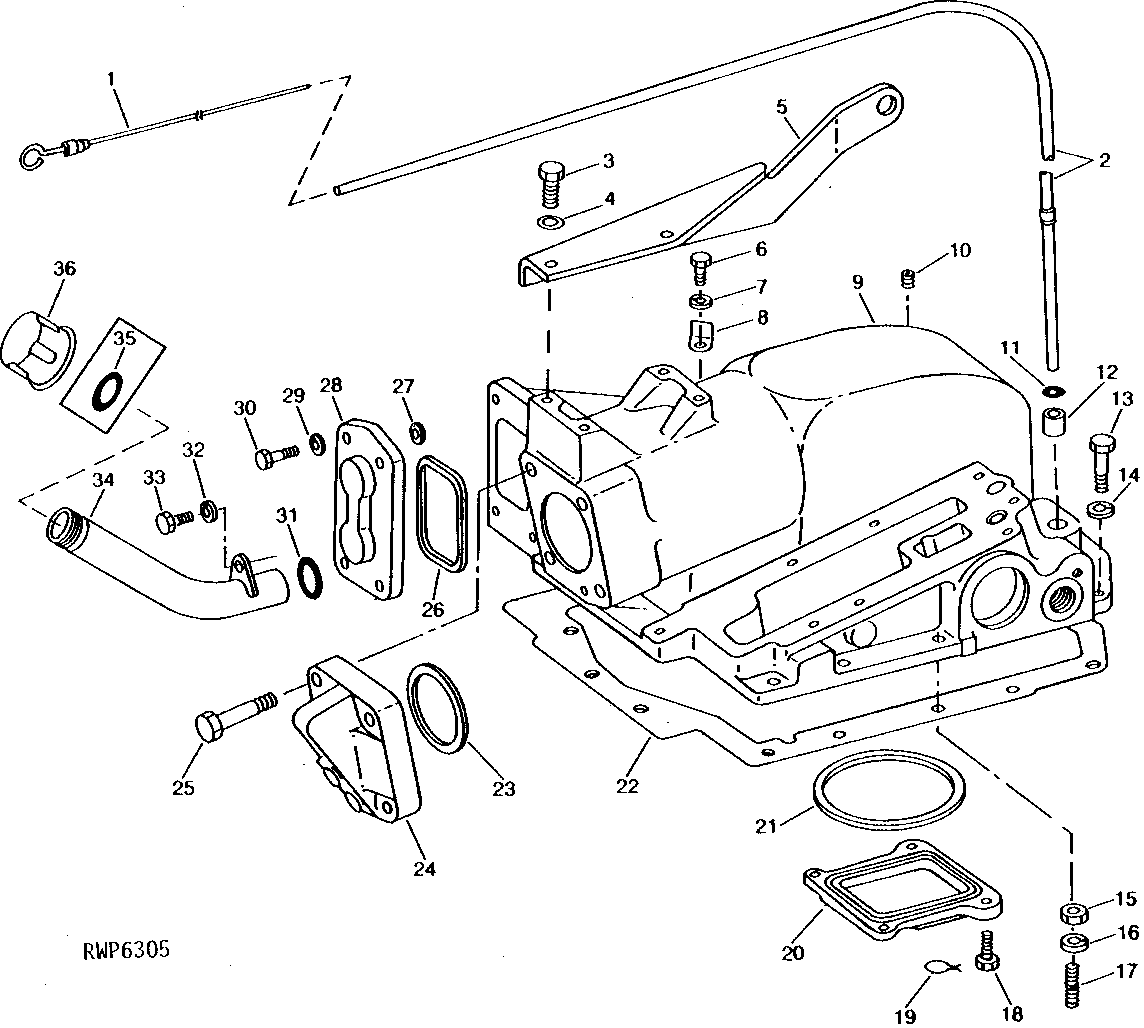

TRANSMISSION REAR COVER (LESS ROCKSHAFT) [03E09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR89228	1	DIPSTICK	(SUB FOR AR54616)
2	AR56082	1	LINE	-
3	19H1731	2	Cap Screw	3/8" X 1"
4	12H304	2	Lock Washer	3/8"
5	R64771	1	RETAINER	(SUB FOR R63081)
6	19H1936	2	Cap Screw	(A) 3/8" X 3/4"
7	12H304	2	Lock Washer	(A) 3/8"
8	T13814	2	Clamp	(A)
8	R27720	1	CLAMP	(B)
9	AR55867	1	COVER	(MARKED R50230) (NLA)
10	15H559	2	Pipe Plug	1/4"
11	A3917R	1	O-Ring	-
12	R55214	1	Bushing	(ALSO ORDER A3917R) (SUB FOR R49955)
13	19H3579	5	Cap Screw	1/2" X 1-3/8"
13	19H3544	5	Cap Screw	1/2" X 4-1/2"
13	19H1815	5	Cap Screw	1/2" X 1-1/4"
13	19H1990	5	Cap Screw	1/2" X 2-1/4"
14	12H301	8	Lock Washer	1/2"
15	14H1040	4	Nut	1/2"
16	12H301	4	Lock Washer	1/2"
17	R32101	4	STUD	(SUB FOR R49988)
18	R57725	4	Screw	(SUB FOR R61762)
19	-	2	Part 23	16 GA. X 12"
20	R55079	1	COVER	-
21	R238335	1	O-RING	(SUB FOR R26769)
22	R40939	1	GASKET	-
23	R34154	1	WASHER	-
24	R50811	1	CAP	-
25	19H1824	4	CAP SCREW	5/8" X 2-1/4"
25	12H294	4	Lock Washer	5/8"
26	R40922	1	Back-Up Ring	-
27	F2741R	1	Packing	-
28	R41446	1	COVER	-
29	12H293	4	Lock Washer	7/16"
30	19H2500	4	CAP SCREW	7/16" X 1-3/8"
31	R30319	1	O-Ring	-
32	12H304	1	Lock Washer	3/8"
33	19H2284	1	Cap Screw	3/8" X 7/8"
34	AR54439	1	TUBE	(SUB AL38083, RE46170, T21564 AND AR30697)
34	AR83383	1	OIL TUBE	(SUB AL38083, RE46170 AND T21564)
35	R1225R	1	O-Ring	-
36	AR55304	1	CAP	-
36	AR30697	1	CAP	-

TRANSMISSION REAR COVER (LESS ROCKSHAFT) [03E09]
