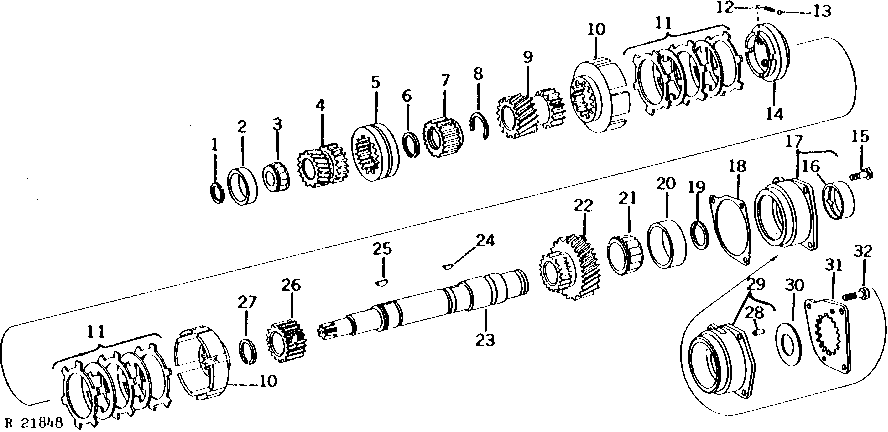

TRANSMISSION DRIVE SHAFT ASSEMBLY (TRACTOR SERIAL NO. -015963) [02H21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26221	1	SNAP RING	2.01MM (.079")
1	R26220	1	SNAP RING	1.93MM (.076")
1	R26223	1	SNAP RING	2.16MM (.085")
1	R26222	1	SNAP RING	2.08MM (.082")
2	JD7449	1	Bearing Cup	-
3	JD8190	1	Bearing Cone	-
4	R62684	1	PINION	(SUB FOR R33483)
5	R67387	1	SHIFT COLLAR	(SUB FOR R26238 OR R62992)
6	R33475	1	SNAP RING	-
7	R33484	1	Gear	-
8	R33476	1	SNAP RING	-
9	R59445	1	PINION	(B) (SUB FOR R50835)
9	R59536	1	PINION	(A) (SUB FOR R50367)
10	R31026	2	DRUM	-
11	AR44997	2	SYNCHRONIZER	(SET OF (3) DISKS WITH FACINGS AND (2) PLATES) (SUB RE37119)
11	AR69154	2	SYNCHRONIZER	(SET OF (3) DISKS WITH FACINGS AND (2) PLATES) (SUB RE37119)
12	R59860	4	SPRING	-
13	A4742R	4	Ball	-
14	R31028	1	SYNCHRONIZER	-
15	R57725	3	Screw	(SUB FOR R40835 OR R61762)
16	R50222	1	Bushing	(B)
17	AR54443	1	HOUSING	(B) (MARKED R53627) (NLA)
18	R33468	1	SHIM	0.25MM (.010")
18	R33469	1	SHIM	0.46MM (.018")
18	R33467	1	SHIM	0.15MM (.006")
19	R33470	1	SNAP RING	1.93MM (.076")
19	R33471	1	SNAP RING	2.01MM (.079")
19	R33472	1	SNAP RING	2.08MM (.082")
19	R33473	1	SNAP RING	2.16MM (.085")
20	JD7421	1	Bearing Cup	-
21	JD8910	1	BEARING CONE	-
22	R50366	1	PINION	-
23	R52326	1	SHAFT	-
24	26H77	1	Shaft Key	3/16" X 3/4"
25	26H77	1	Shaft Key	3/16" X 3/4"
26	R33383	1	SHIFT COLLAR	-
27	R26218	1	Snap Ring	-
28	R39253	2	DOWEL PIN	(C)
29	AR64942	1	HOUSING	(C) (MARKED R55549) (NLA)
30	R55546	1	WASHER	(C)
31	R55659	1	PLATE	(C) (NLA)
32	R39305	3	CAP SCREW	(C)

TRANSMISSION DRIVE SHAFT ASSEMBLY (TRACTOR SERIAL NO. -015963) [02H21]
