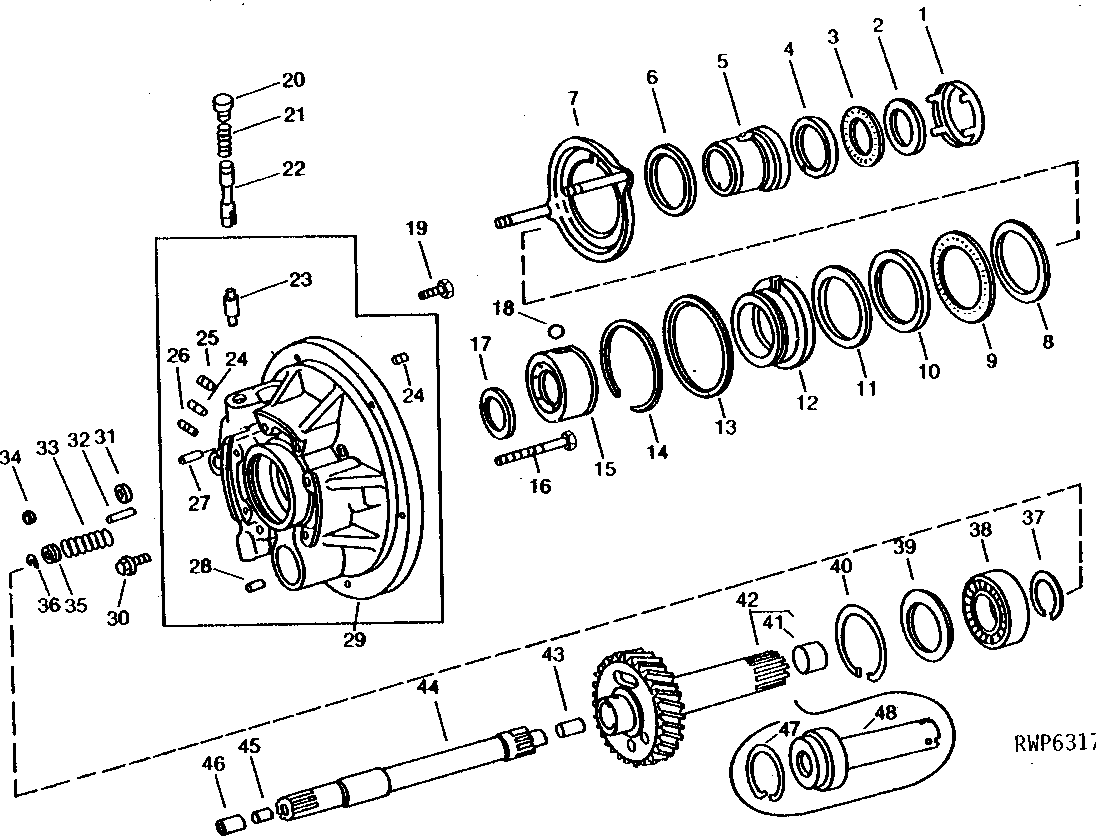

TRANSMISSION AND PTO CLUTCH OPERATING PISTON HOUSING AND PISTONS [02H11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51365	1	Retainer	-
2	R51340	1	Bearing Race	-
3	JD9918	1	Bearing	-
4	JD9916	1	Bearing Race	-
5	R50854	1	PISTON	-
6	R52910	1	PACKING	(SUB R65549)
6	R65549	1	Washer	-
7	AR56116	1	RETAINER	(A)
8	R61386	1	BEARING RACE	(A) (SUB FOR R51341)
9	JD9919	1	Bearing	(A)
10	JD9917	1	Bearing Race	(A)
11	R51352	1	WASHER	(A)
12	R50852	1	PISTON	(A) (SUB R62535)
12	R62535	1	PISTON	-
13	R52909	1	PACKING	(A)
14	R52912	1	SNAP RING	-
15	R62832	1	SLEEVE	(SUB FOR R50853)
16	R51383	5	SELF-LOCKING SCREW	(B)
16	R51383	3	SELF-LOCKING SCREW	(D)
17	R52911	1	PACKING	(SUB R65550)
17	R65550	1	Packing	-
18	400R	1	Ball	6MM (1/4")
19	R41041	6	CAP SCREW	-
20	R41155	1	Fitting Plug	-
21	R50259	1	Spring	-
22	R51351	1	VALVE	(SUB R61659 AND R61660)
22	R61659	1	Valve	-
23	R53245	1	PISTON	(SUB R61660 AND R61659)
23	R61660	1	Pin Fastener	-
24	15H558	6	Pipe Plug	1/8"
25	15H559	1	Pipe Plug	1/4"
26	R21629	1	PIPE PLUG	(B) (C) (SUB 15H560)
27	R26650	1	Dowel Pin	-
28	R1932R	1	Dowel Pin	-
29	AR77397	1	HOUSING	(B) (C) (MARKED R50301 OR R62742) (ALSO ORDER R61659) (SUB FOR AR61917, THIS APPLICATION) ( RE193236 USED PART)
29	AR78060	1	HOUSING	(D) (MARKED R63742) (ALSO ORDER R61659) (NLA)
30	AR61146	5	Screw	-
31	R26919	1	WASHER	-
32	R27145	1	NEEDLE ROLLER	-
32	R57442	1	Needle Roller	-
33	R50258	2	SPRING	(A)
34	R60038	1	Packing	-
35	R62955	2	Retainer	(A) (SUB FOR R27092)
36	R26548	2	SNAP RING	(A)
37	R36295	1	Snap Ring	-
38	JD8736	1	BALL BEARING	(A)
39	R52988	1	Washer	(A)
40	R70607	1	Snap Ring	(A) (SUB FOR R53107 OR R68956)
41	R50863	1	Bushing	(A)
42	AR54962	1	SHAFT	(A) (B) (C) (MARKED R50840) (NLA)
42	AR65132	1	SHAFT	(A) (D) (MARKED R55655) (NLA)
43	R34328	1	Bushing	(A) (D)
44	R50154	1	SHAFT	(B)
44	R51002	1	SHAFT	(C) (NLA)
44	AR65533	1	SHAFT	(D) (INCLUDES JD8736)
45	R39276	1	BUSHING	(D)
46	R50155	1	Bushing	-
47	R70607	1	Snap Ring	(E) (SUB FOR R53107 OR R68956)
48	AR62064	1	ADAPTER FITTING	(E) (NLA)

TRANSMISSION AND PTO CLUTCH OPERATING PISTON HOUSING AND PISTONS [02H11]
