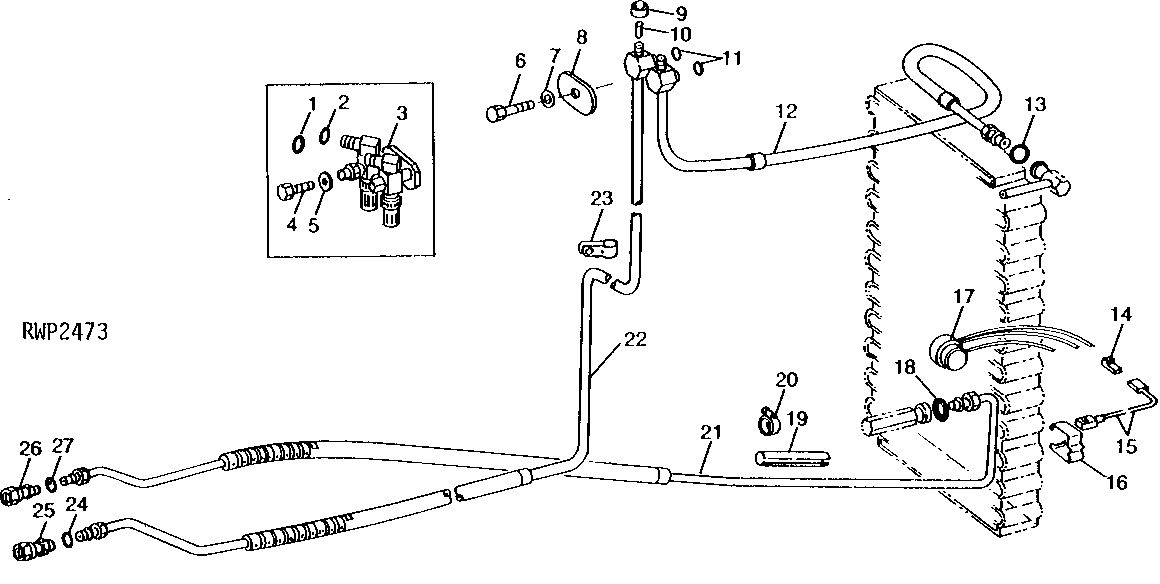

SERVICE VALVE AND CONDENSER PIPES [04B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33259	1	O-Ring	(SUB FOR U11646)
2	P51212	2	O-Ring	-
3	AR58283	1	VALVE	-
4	19H1938	1	CAP SCREW	3/8" X 13/16"
5	12H304	1	Lock Washer	3/8"
5	24H1884	1	Washer	13/32" X 13/16" X 0.120"
6	19H2959	1	Cap Screw	3/8" X 2"
7	24H1884	1	Washer	13/32" X 13/16" X 0.120"
8	R60171	1	STRAP	-
9	R60172	2	Nut	-
10	R60170	2	Valve	-
11	R47235	2	O-RING	(SUB R74210)
12	AR59783	1	HOSE	(SUB RE57315)
12	AR75565	1	LINE	(ILLUSTRATED) (SUB RE57325)
13	P51212	1	O-Ring	-
14	T28583	3	Elec. Connector Housing	-
15	AR51569	1	WIRING LEAD	-
15	AR69977	1	WIRING LEAD	-
16	R56453	1	CLIP	-
17	AR55214	1	THERMOSTAT	-
18	R10093	1	O-Ring	-
19	R53626	1	CUSHION	(NLA)
20	AR21839	1	Clamp	-
21	AR60592	1	LINE	-
21	AR58284	1	LINE	(SUB RE57313)
21	-	1	Part 26	(MAKE FROM R30596)
21	R44302	1	Tie Band	-
21	AR65753	1	HOSE	(SUB RE57321)
21	R65436	1	SHIELD	-
22	AR67935	1	HOSE	(SUB RE57322)
22	R65436	1	SHIELD	-
22	AR75566	1	LINE	(ILLUSTRATED) (SUB RE57326)
22	AR65751	1	HOSE	-
22	AR68804	1	LINE	(SUB FOR AR59784) (SUB RE65913)
23	R54102	1	Half Clamp	-
24	B15646	1	O-Ring	-
25	AR58287	1	Hydr. Quick Coupler Socket	-
26	AH21763	1	Hydr. Quick Coupler Socket	(SUB FOR AR58285)
27	P50883	1	Ring	-
..	R76477	1	Tie Band	(SUB FOR R45440)
..	TY15939	1	O-Ring Kit	AIR CONDITIONING O-RING, (SUB FOR AT66632)

SERVICE VALVE AND CONDENSER PIPES [04B13]
