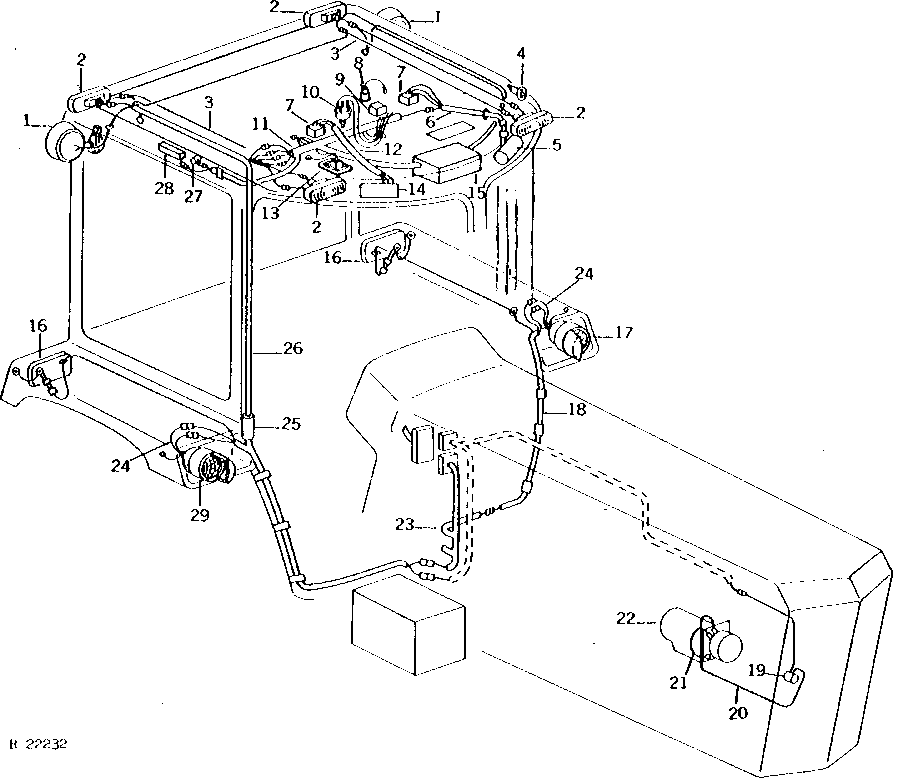

LAMP WIRING (ROLL-GARD AND SOUND-GARD BODY) [02B06]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR35782	2	FLOODLAMP	(B)
1	RE19075	2	Floodlamp	(A) HOBBS OR GUIDE, (HALOGEN)
1	A3411R	2	Grommet	-
2	AR60250	2	Lamp	-
3	AR56211	2	Wiring Harness	GROUND
4	AR56987	1	Switch	(ALSO ORDER R81544)
4	R53608	2	Rivet	-
4	R81544	1	Gasket	-
5	RE48783	1	WIPER MOTOR	L.H. WIPER, (SUB FOR RE18943 OR AR56691)
5	AR91667	1	SHAFT	(AMERICAN BOSCH AND UTC) (SUB RE48783)
6	AR87340	1	WIPER MOTOR WIRING HARNESS	(SUB FOR AR56199) (USE WITH AR56691)
6	RE18944	1	Wiper Motor Wiring Harness	(USE WITH RE48783)
7	AR64992	2	Rotary Switch	WIPER MOTOR, (SUB FOR AR57228)
8	AH80591	1	TURN SIGNAL LAMP	CONDENSER INDICATOR LAMP
9	AR59779	1	TEMPERATURE SWITCH	(ALSO ORDER R44165)
10	AR53155	1	SWITCH	BLOWER
11	AR67952	1	WIRING HARNESS	(D)
11	AR71466	1	WIRING HARNESS	(D)
11	AR62559	1	WIRING HARNESS	(D)
12	RE48322	1	Wiper Motor Wiring Harness	-
13	RE10761	1	HOUSING	(A) DOME, (SUB FOR AR78418)
13	AR95971	1	HOUSING	DOME (REPLACEMENT SOUND-GARD BODY)
13	AR59977	1	Housing	CONSOLE LIGHT ONLY
13	AR61645	1	Console Lamp Wiring Harness	-
14	RE58851	1	Motor	R.H. WIPER, (SUB FOR RE13280, RE53496 OR RE56380)
15	-	1	Part 26	-
16	AR78825	1	Tail Lamp	(SUB FOR AR45099)
16	R27180	1	Grommet	-
17	RE25127	1	Dual Beam Headlamp	(A) (SUB FOR AR61326)
17	AR48721	1	HEADLIGHT	(B) (SUB RE25126 R.H., AND RE25127 L.H.; THIS APPLICATION)
18	AR56668	1	WIRING HARNESS	-
19	AR55214	1	THERMOSTAT	(C)
20	AR51569	1	WIRING LEAD	(C)
21	AR48957	1	WIRING LEAD	(C)
22	AR92109	1	COMPRESSOR	(C) (SUB TY6665, 19M7170, (3) 19M7163, (3) 19M7662, (3) 12M7065 AND (3) 12M7066) (R12)
22	TY6665	1	COMPRESSOR	(C) (SUB FOR AR60948, AR68802, AR77343 OR AR92109) (R12)
22	TY6770	1	COMPRESSOR	(C) (R134A)
22	SE501457	1	Compressor Reman	(REMAN FOR TY6770)
22	SE501456	1	COMPRESSOR	(REMAN FOR TY6665)
23	AR56198	1	WIRING HARNESS	-
23	AR71463	1	WIRING HARNESS	-
24	-	2	Part 42	152MM (6") (MAKE FROM R66319, R32022 AND R32023)
25	-	2	Part 43	64MM (2-1/2") (MAKE FROM TY22328) (SUB FOR R45847)
26	H97644	1	CONDUIT	(B) (SUB FOR R50452)
26	R47474	6	Clip	ROLL-GARD WIRING HARNESS
26	R59306	1	CONDUIT	(A)
26	AR56197	1	WIRING HARNESS	(B)
26	AR71465	1	WIRING HARNESS	(A)
26	AR56196	1	WIRING HARNESS	(A)
26	AR71464	1	WIRING HARNESS	(B)
27	AR62173	1	HEADPHONE JACK	MONAURAL SOUND, (SUB FOR AR62288) (NLA)
27	AR62172	1	HEADPHONE JACK	STEREOPHONIC SOUND, (SUB FOR AR62287) (NLA)
27	A3411R	1	Grommet	-
28	R36235	3	Grommet	-
28	AT101691	1	Lamp	(A) DOME, (SUB FOR AR56670)
29	RE25126	1	Dual Beam Headlamp	(A) (SUB FOR AR61325)
29	AR48721	1	HEADLIGHT	(B) (SUB RE25126 R.H., AND RE25127 L.H.; THIS APPLICATION)
..	AR56213	1	WIRING LEAD	(A)
..	AR72391	1	WIRING LEAD	(A)
..	R44302	1	Tie Band	-
..	R32320	1	Clip	-
..	R45211	1	Clamp	SOUND-GARD BODY DOOR
..	R47474	1	Clip	(SUB FOR R45137)

LAMP WIRING (ROLL-GARD AND SOUND-GARD BODY) [02B06]
