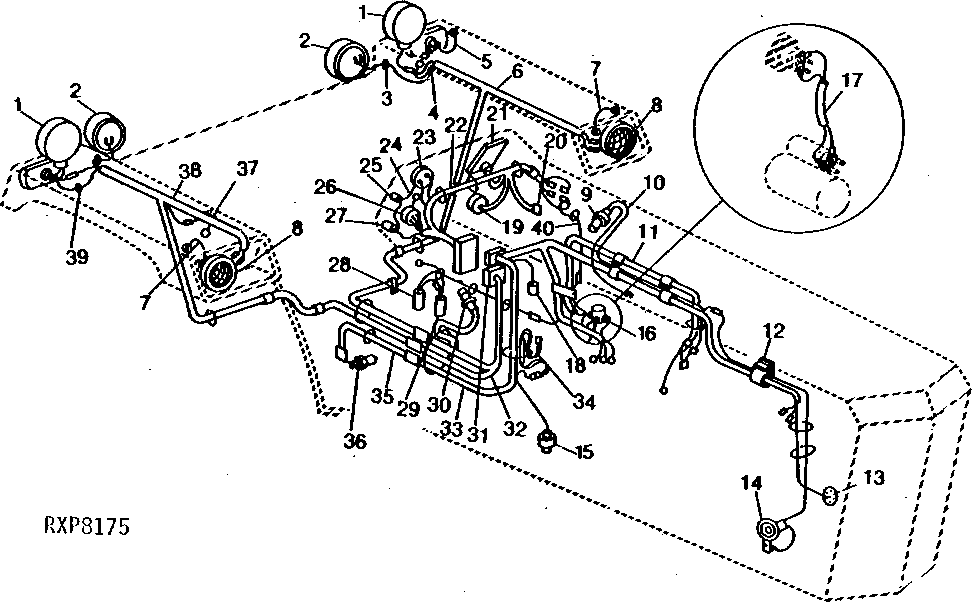

LAMP AND ENGINE WIRING [02B10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT23467	2	LAMP	(SUB FOR AR38456)
2	AR35782	2	FLOODLAMP	-
3	R27583	2	Grommet	-
4	R32320	1	Clip	-
5	AR78825	2	Tail Lamp	(SUB FOR AR45099)
6	AR56205	1	WIRING HARNESS	L.H. LIGHTS
7	-	2	Part 7	152MM (6") (MAKE FROM R66319, R32022 AND R32023)
8	AR48721	2	HEADLIGHT	(12-VOLT DUAL BEAM) (LESS ROLL-GARD OR SOUND-GARD BODY)
8	T28585	4	Electrical Connector Assy	-
9	AR50489	1	SWITCH	VACCUM INDICATOR
9	RE17515	1	SENSOR	VACCUM INDICATOR, (SUB FOR AL24194 OR AL32975)
10	-	1	Part 12	254 MM (10") (VACCUM SWITCH GROUND) (MAKE FROM R66319, R65600, T28585, R32022 AND R32027)
11	AR56210	1	WIRING HARNESS	CHARGING CIRCUIT
11	R45211	1	Clamp	-
11	R41440	1	Grommet	-
12	R50968	1	Conduit	-
13	12M7060	1	Washer	0.209"
13	AR73995	1	FUEL SENDER	FUEL GAUGE, (SUB FOR AR56614) (ALSO ORDER 12M7060 AND 14H631) (SUB RE221715)
13	14H631	1	Nut	0.190"
14	-	1	Part 20	-
15	AR58234	1	SENDER	ENGINE OIL PRESSURE, (SUB RE15583)
16	AR44999	1	RELAY	(ALSO ORDER 12H303, 14H785, 12H246 AND 14H631) (SUB RE170320)
16	RE170320	1	Starter Relay	(SUB FOR AT68973, RE38391 OR AT44999)
17	AR69980	1	WIRING HARNESS	(STARTING CIRCUIT RELAY TO STARTER)
18	AR58233	1	ENGINE COOLANT TEMP SENDER	(SUB AT37368) WATER TEMPERATURE
19	AR83425	1	Elec. Connector Housing	-
19	AR48724	1	Rotary Switch	LIGHT
20	-	1	Part 28	-
21	AR58231	1	GAUGE	-
21	AR73717	1	INSTRUMENT CLUSTER	(NLA)
22	AR56208	1	WIRING HARNESS	(A) (SUB AR67339)
22	AR67339	1	WIRING HARNESS	(A) (SUB AR78383 AND AR78385)
22	AR67342	1	Wiring Harness	(LESS TURN SIGNALS)
22	AR78383	1	WIRING HARNESS	-
23	AR71251	1	TACHOMETER	(SYNCRO-RANGE) (SUB FOR AR60516)
23	AR71252	1	TACHOMETER	(QUAD-RANGE) (SUB FOR AR60517) (SUB RE207967) (ALSO ORDER RE220088)
24	-	1	Part 37	38MM (1-1/2") KEY SWITCH, (MAKE FROM R66319, R32025, R32021 AND R32027)
25	AR56766	1	Housing	LIGHTER
26	AR58126	1	Rotary Switch	KEY
27	AR21823	1	SWITCH	HORN
28	AR61610	1	PRESSURE SWITCH	THERMO (TRANSMISSION)
29	AR61971	1	PRESSURE SWITCH	PRESSURE (TRANSMISSION)
30	AR48725	1	Switch	DIMMER
31	-	1	Part 44	254 MM (10") VACUUM SWITCH GROUND, (MAKE FROM R66319, R32022 AND R32024)
31	-	1	Part 45	1575 MM (62") ENGINE HARNESS TO TRANSMISSION PRESSURE SWITCH (QUAD-RANGE AND SYNCRO-RANGE) (MAKE FROM R66319, R32322 AND R32024)
31	-	1	Part 46	254 MM (10") ENGINE HARNESS TO TRANSMISSION PRESSURE SWITCH (POWER SHIFT) (MAKE FROM R66319, R32022 AND R32024)
31	R45211	1	Clamp	-
32	AR56202	1	WIRING HARNESS	BULKHEAD
32	AR71462	1	WIRING HARNESS	BULKHEAD
33	RE42395	1	WIRING HARNESS	(B) (USE WITH RE14069) (SUB FOR AR95905, AR99520, AR99523, RE13559, RE14060, RE14062 OR RE32555) (ALSO ORDER AR85283)
33	RE45285	1	WIRING HARNESS	(B) (USE WITH AR56203) (SUB FOR AR68023)
33	AR63866	1	WIRING HARNESS	(B) (GASOLINE) (SUB FOR AR56214) (USE WITH AR56203)
33	AR63868	1	WIRING HARNESS	(B) (SUB FOR AR54619) (USE WITH AR56203)
34	AR85283	1	RECTIFIER	-
35	AR56203	1	WIRING HARNESS	(C) (USE WITH AT85153) (USE ON AR63866, AR63868, OR AR68023)
35	RE14069	1	WIRING HARNESS	(C) (USE WITH AT85153) (USE ON AR99520, AR99523, RE13559, RE14060, RE14062, RE32555 OR RE42395)
35	RE14072	1	WIRING HARNESS	(C) (USE WITH RE12411)
36	RE38390	1	SWITCH	(C) (SUB FOR AT85373, AR89691, AR99528 OR RE14070, THIS APPLICATION)
37	AA4927R	1	BULB	-
37	R26287	1	O-Ring	-
37	AR70699	1	LAMP	CONSOLE, (SUB FOR AR60251)
38	AR56204	1	WIRING HARNESS	R.H. LIGHTS
39	R27180	2	Grommet	-
40	AR56213	1	WIRING LEAD	BUSSBAR TO CHARGING CIRCUIT
..	R34557	1	Clamp	-
..	R47474	1	Clip	(SUB FOR R45137)
..	R44302	1	Tie Band	-
..	AT66865	1	Lubricant	0.15L (5.3 OZ) TUBE, (SUB FOR AR94760)
..	RE220088	1	SPEEDOMETER	-

LAMP AND ENGINE WIRING [02B10]
