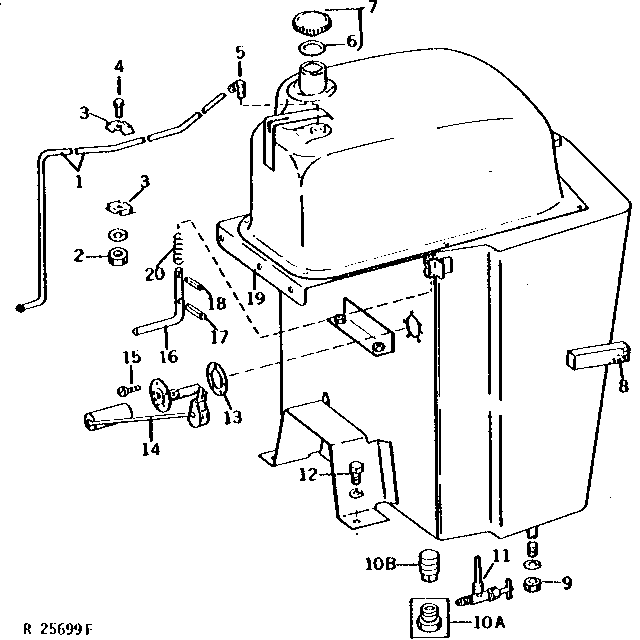

FUEL TANK (DIESEL) (TRACTOR SERIAL NO. 006700- ) [01D16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R56860	1	FUEL LINE	-
1	R53281	1	OIL TUBE	-
2	14H786	1	Nut	1/4"
2	12H302	1	Lock Washer	1/4"
3	R34838	2	CLAMP	-
4	19H1846	1	CAP SCREW	1/4" X 3/4"
5	AR46281	1	ELBOW FITTING	-
6	R39615	1	WASHER	-
7	AT20911	1	FILLER CAP	-
8	-	2	Part 10	13 X 25 X 76MM (1/2" X 1" X 3") (MAKE FROM R30936)
9	14H1039	2	Nut	5/8"
9	12H294	2	Lock Washer	5/8"
11	R34656	1	HAND OPERATED VALVE	(A)
12	19H1122	2	CAP SCREW	1/2" X 7/8"
12	24H1625	2	Washer	17/32" X 1" X 0.120"
12	12H301	2	Lock Washer	1/2"
13	R27181	1	GASKET	-
14	AR73995	1	FUEL SENDER	(SUB FOR AR56614) (ALSO ORDER 12M7060 AND 14H631) (SUB RE221715)
14	14H631	1	Nut	0.190"
14	12M7060	1	Washer	0.209"
15	21H981	5	SCREW	0.190" X 1/2"
16	R50779	2	PIN FASTENER	-
17	34H282	2	Spring Pin	3/16" X 1"
18	34H387	2	Spring Pin	3/16" X 3/4"
19	AR63974	1	FUEL TANK	(SUB AR81882, AR77268 AND 15H620)
19	AR81882	1	FUEL TANK	(SUB FOR AR77269)
20	B161R	2	SPRING	-
..	AR77267	1	KIT	FUEL TANK INSTALLATION, (SUB AR85152, R34656, R34766 AND R46967)
10A	15H629	1	Pipe Bushing	1" X 1/4"
10B	15H620	1	PIPE PLUG	1"
