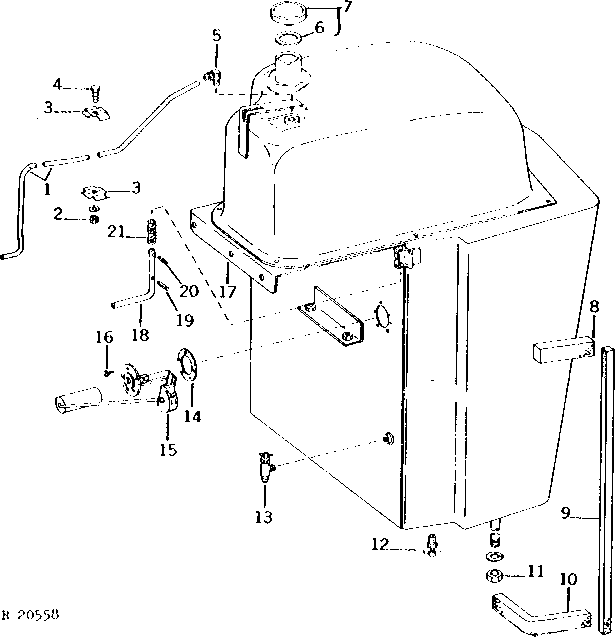

FUEL TANK (DIESEL) (TRACTOR SERIAL NO. -006699) [01D15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R53281	1	OIL TUBE	-
2	14H786	1	Nut	1/4"
2	12H302	1	Lock Washer	1/4"
3	R34838	2	CLAMP	-
4	19H1846	1	CAP SCREW	1/4" X 3/4"
5	AR46281	1	ELBOW FITTING	-
6	R39615	1	WASHER	-
7	AT20911	1	FILLER CAP	-
8	-	2	Part 9	19 X 25 X 102MM (3/4" X 1" X 4") (MAKE FROM R30937)
9	R91558	2	PAD	13 X 13 X 508MM (1" X 1" X 20") (SUB FOR R30877)
10	-	2	Part 11	19 X 25 X 20MM (3/4" X 1" X 7-1/2") (MAKE FROM R47941)
11	12H294	4	Lock Washer	5/8"
11	14H1039	4	Nut	5/8"
12	AT13740	1	Drain Valve	-
13	AR43253	1	SHUT-OFF VALVE	-
14	R27181	1	GASKET	-
15	AR73995	1	FUEL SENDER	(SUB FOR AR56614) (ALSO ORDER 12M7060 AND 14H631) (SUB RE221715)
15	14H631	1	Nut	0.190"
15	12M7060	1	Washer	0.209"
16	21H981	5	SCREW	0.190" X 1/2"
17	AR56057	1	FUEL TANK	(TRACTORS BUILT PRIOR TO SERIAL NO. 007860 SUB AR81882, AR77267, AR68184, 15H620 AND (2) R49877) (TRACTORS BUILT AFTER SERIAL NO. 007861 SUB AR81882, AR77267, AR69405, 15H620 AND (2) R49877)
18	R50779	2	PIN FASTENER	-
19	34H282	2	Spring Pin	3/16" X 1"
20	34H387	2	Spring Pin	3/16" X 3/4"
21	B161R	2	SPRING	-

FUEL TANK (DIESEL) (TRACTOR SERIAL NO. -006699) [01D15]
