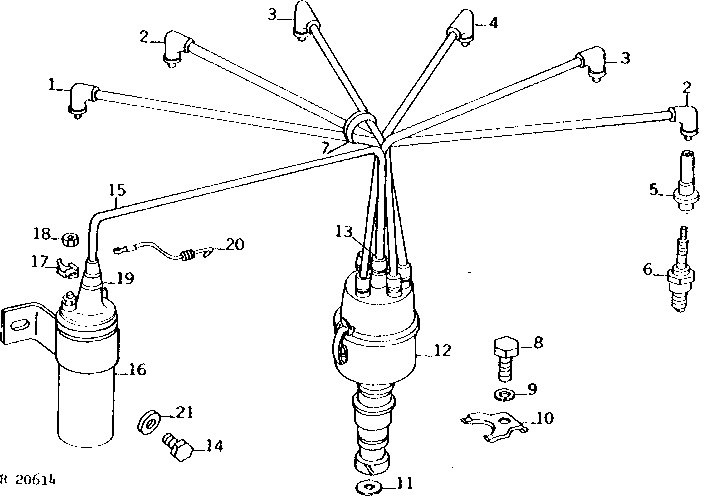

DISTRIBUTOR, COIL, SPARK PLUGS, AND CABLES (GASOLINE) [02C02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	483MM (19") (NO. 6) (MAKE FROM R32006, (2) R32013 AND (2) A3539R)
2	-	1	Part 2	356MM (14") (NO. 1 AND 5) (MAKE FROM R32006, (2) R32013 AND (2) A3539R)
3	-	1	Part 3	305MM (12") (NO. 2 AND 4) (MAKE FROM R32006, (2) R32012 AND (2) A3539R)
4	-	1	Part 4	203MM (8") (NO. 3) (MAKE FROM R32006, (2) R32013 AND (2) A3539R) (SUB FOR T23430)
5	T20115	6	BOOT	-
6	AT21343	6	SPARK PLUG	(AC45XL) (HEAVY-DUTY)
7	R1662R	1	WASHER	-
8	19H1905	1	Cap Screw	5/16" X 1"
9	12H303	1	Lock Washer	5/16"
10	T20113	1	CLAMP	-
11	T20112	1	GASKET	-
12	AT18286	1	Mounting Parts	(PRESTOLITE NOS.IBT-6101K AND IBT-610IN) (USE WITH AT14385)
13	A3539R	1	ELEC. CONNECTOR ACCESSORY	-
14	19H1813	2	CAP SCREW	5/16" X 5/8"
15	-	1	Part 15	227MM (9") (MAKE FROM R32006, (2) R32013 AND (2) A3539R) (SUB FOR T13428)
16	AT14385	1	ELECTRICAL COIL	(6-VOLT) (PRESTOLITE NO. 200627) (USE WITH AT18286)
17	12H246	2	LOCK WASHER	0.190"
18	14H631	2	Nut	0.190"
19	A4159R	1	BOOT	-
20	AT25512	1	Wiring Lead	COIL TO HARNESS
21	24H1243	2	WASHER	11/32" X 5/8" X 1/16"

DISTRIBUTOR, COIL, SPARK PLUGS, AND CABLES (GASOLINE) [02C02]
