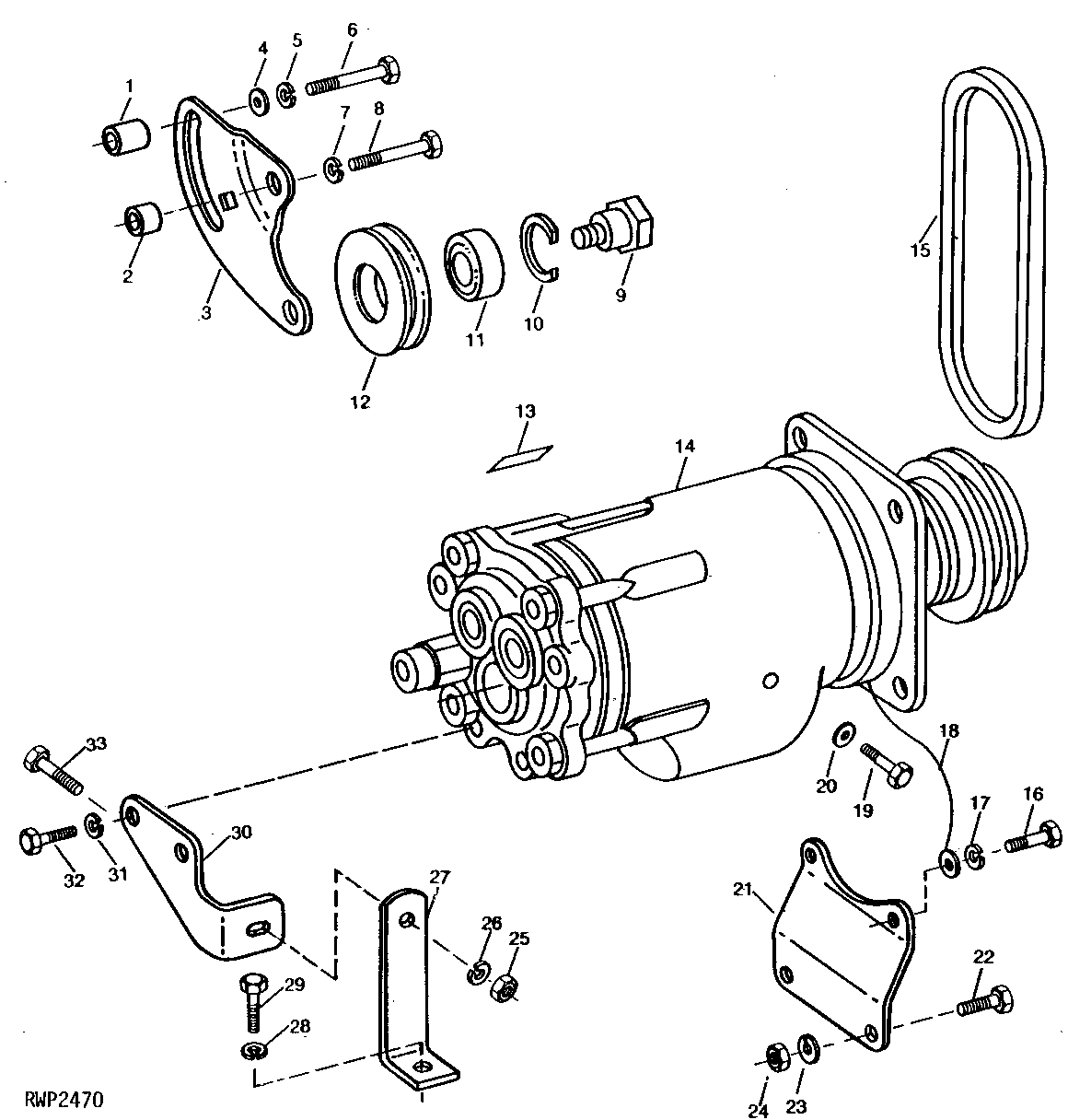

COMPRESSOR, MOUNTING BRACKETS AND IDLER PULLEY (TRACTOR SERIAL NO. -007171) [04B06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	28H1522	1	Spacer	3/8" X 11/16"
2	28H1518	1	Washer	3/8" X 5/16"
3	AR59661	1	BRACKET	-
4	24H1305	1	Washer	13/32" X 13/16" X 0.065"
5	12H304	1	Lock Washer	3/8"
6	19H2128	1	CAP SCREW	3/8" X 3"
7	12H304	1	Lock Washer	3/8"
8	19H2553	1	Cap Screw	3/8" X 2-5/8"
9	R53257	1	BOLT	-
10	D398R	1	SNAP RING	-
11	JD7142	1	Ball Bearing	-
12	R53255	1	IDLER	-
13	R42822	1	LABEL	-
14	AR77343	1	COMPRESSOR	(SUB AR92109, 19M7170, (3) 19M7163, (2) 19M7662, (3) 12M7065 AND (3) 12M7066) (SUB FOR AR60948 OR AR68802)
14	AR92109	1	COMPRESSOR	(SUB TY6665)
14	TY6665	1	COMPRESSOR	-
14	SE501456	1	COMPRESSOR	(REMAN FOR AR92109 OR TY6665)
15	R53258	1	V-BELT	-
16	19H2529	2	Cap Screw	5/16" X 1"
16	19M7163	2	Cap Screw	M8 X 25
16	12M7065	2	Lock Washer	M8
17	12H303	2	Lock Washer	5/16"
18	AR48957	1	WIRING LEAD	-
19	R47233	1	PLUG	-
20	R47234	1	WASHER	-
21	R55277	1	BRACKET	(SUB FOR R53252)
22	19H1731	1	Cap Screw	3/8" X 1"
22	19H1732	1	Cap Screw	3/8" X 1-1/4"
23	12H304	2	Lock Washer	3/8"
24	14H1076	2	Nut	3/8"
25	14H1040	1	Nut	1/2"
26	12H301	1	Lock Washer	1/2"
27	R53254	1	SUPPORT	-
28	12H301	1	Lock Washer	1/2"
29	19H1815	1	Cap Screw	1/2" X 1-1/4"
30	R53253	1	BRACKET	(NLA)
31	12H304	2	Lock Washer	3/8"
32	19H1731	2	Cap Screw	3/8" X 1"
32	19M7662	2	Cap Screw	M10 X 30
32	12M7066	2	Lock Washer	10M
33	19H1815	1	Cap Screw	1/2" X 1-1/4"
..	AR67939	1	KIT	COMPRESSOR DRIVE AND MOUNTING
..	TY6384	1	Oil	0.9L (1 QT.) (SUB FOR R49856)

COMPRESSOR, MOUNTING BRACKETS AND IDLER PULLEY (TRACTOR SERIAL NO. -007171) [04B06]
