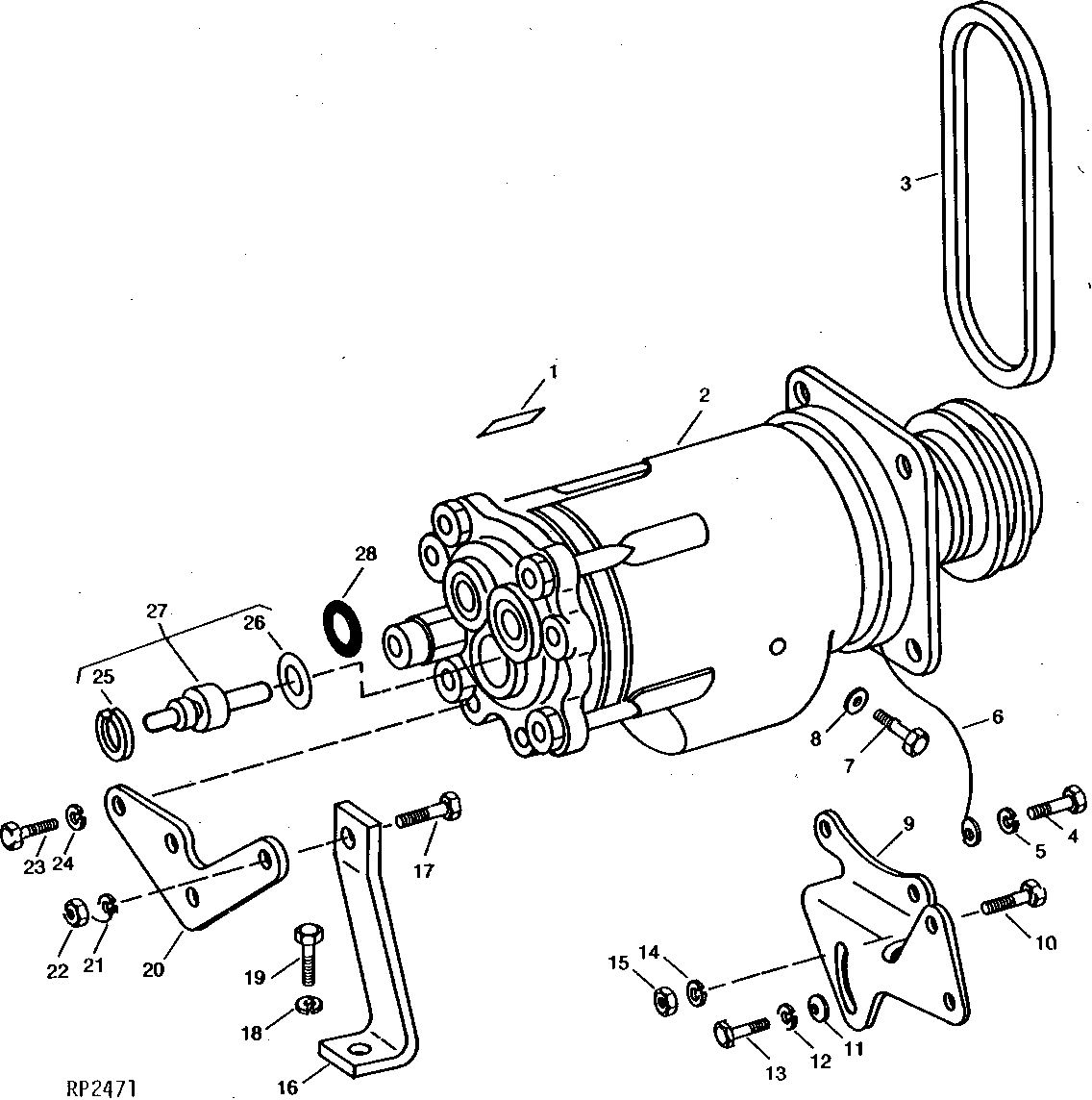

COMPRESSOR AND MOUNTING BRACKETS (TRACTOR SERIAL NO. 007172- ) [04B08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42822	1	LABEL	-
2	AR77343	1	COMPRESSOR	(SUB AR92109, 19M7170, (3) 19M7163, (2) 19M7662, (3) 12M7065 AND (3) 12M7066) (SUB FOR AR68802)
2	SE501456	1	COMPRESSOR	(REMAN FOR AR92109 OR TY6665)
2	AR92109	1	COMPRESSOR	(SUB TY6665)
2	TY6665	1	COMPRESSOR	-
3	R56858	1	V-BELT	(A)
4	19H2529	2	Cap Screw	5/16" X 1"
4	19M7163	2	Cap Screw	M8 X 25
5	12H303	2	Lock Washer	5/16"
5	12M7065	2	Lock Washer	M8
6	AR48957	1	WIRING LEAD	-
7	R47233	1	PLUG	-
8	R47234	1	WASHER	-
9	R56855	1	Support	(A)
10	19H1732	1	Cap Screw	(A) 3/8" X 1-1/4"
11	24H1309	1	Washer	(A) 13/32" X 1-1/16" X 0.120"
12	12H304	1	Lock Washer	(A) 3/8"
13	19H2284	1	Cap Screw	(A) 3/8" X 7/8"
14	12H304	1	Lock Washer	(A) 3/8"
15	14H1076	1	Nut	(A) 3/8"
16	R56857	1	SUPPORT	(A)
17	19H1732	1	Cap Screw	(A) 3/8" X 1-1/4"
18	12H301	1	Lock Washer	1/2"
19	19H1815	1	Cap Screw	1/2" X 1-1/4"
20	R56856	1	BRACKET	(A)
20	R62716	1	Support	(ALSO ORDER R67225)
21	12H304	1	Lock Washer	(A) 3/8"
22	14H1076	1	Nut	(A) 3/8"
23	19M7662	2	Cap Screw	M10 X 30
23	19H1731	2	Cap Screw	3/8" X 1"
24	12H304	2	Lock Washer	3/8"
24	12M7066	2	Lock Washer	M10
25	R63571	1	SNAP RING	-
26	32240	1	O-Ring	-
27	AR78501	1	KIT	SUPERHEAT ASSEMBLY
28	R47235	2	O-RING	(SUB R74210)
..	TY6384	1	Oil	(SUB FOR R49856) 0.9L (1 QT.)
..	AR67939	1	KIT	COMPRESSOR DRIVE AND MOUNTING

COMPRESSOR AND MOUNTING BRACKETS (TRACTOR SERIAL NO. 007172- ) [04B08]

Нет текстового описания
