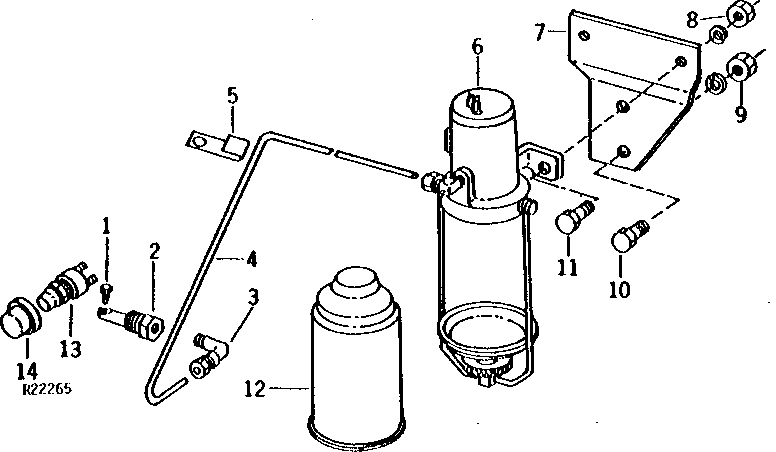

COLD WEATHER STARTING AID (ELECTRICALLY OPERATED) [01F06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T155858	1	Nozzle	(SUB FOR R28583)
2	R47160	1	Nozzle Holder	-
3	RE21790	1	Elbow Fitting	(SUB FOR AT25266)
4	R79818	1	Tube	-
5	B1986R	1	CLIP	-
6	RE48310	1	Starting Aid Solenoid	(SUB FOR AT39623)
6	RE21790	1	Elbow Fitting	(SUB FOR AT25266)
6	AT45396	1	BAIL	ROUND, (SUB AT57288)
6	AT57288	1	BAIL	FLAT
6	T46726	1	GASKET	-
6	RE48321	1	Adapter Fitting	-
7	R56873	1	BRACKET	-
8	14H785	2	Nut	5/16"
8	12H303	2	Lock Washer	5/16"
9	14H1076	2	Nut	3/8"
9	12H304	2	Lock Washer	3/8"
10	19H1936	2	Cap Screw	3/8" X 3/4"
11	19H2127	2	Cap Screw	5/16" X 7/8"
12	RE33636	1	Starting Fluid	(SUB FOR AR27814, RE24561 OR RE30174)
13	R39554	1	Switch	-
14	T55585	1	Cap	(SUB FOR AR67950)
..	AR68499	1	KIT	(WIRING TO INSTALL ELECTRIC COLD WEATHER STARTING AID ON TRACTORS PRIOR TO SERIAL NO. 013000) (CONSISTS OF AR68016, AR68017, AR68019 AND AT68973) (SUB RE42401)
..	RE42401	1	WIRE	(CONSISTS OF RE42399, RE42400, R32018 AND (10) R44302) (ALSO ORDER RE38391) (SUB FOR AR68499)
..	AR68494	1	STARTING AID	(ETHER STARTING AID)
