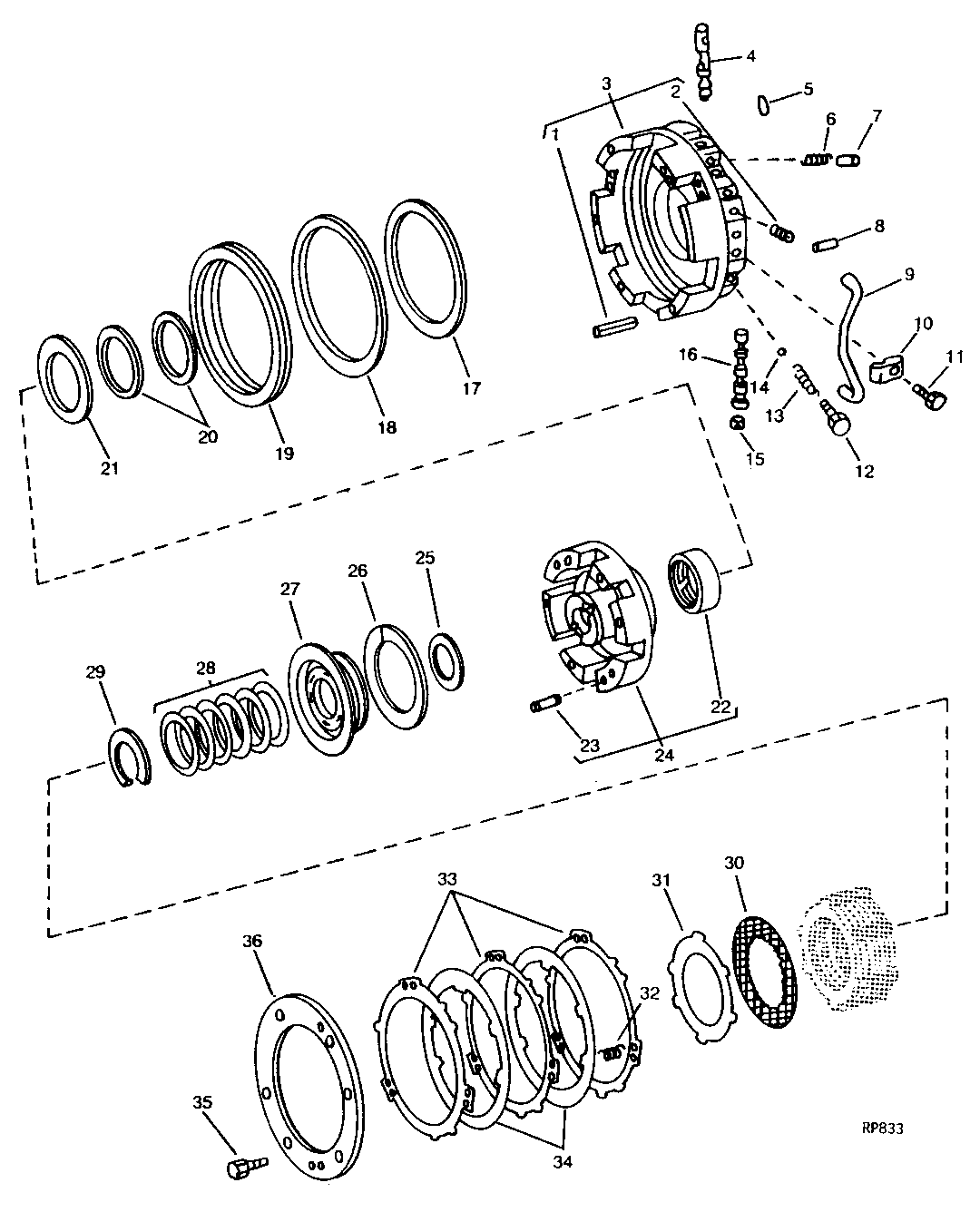

BRAKE PISTON HOUSING AND CLUTCH DRUM (QUAD-RANGE) (TRACTOR SERIAL NO. 015106- ) [02I06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H188	6	Spring Pin	5/16" X 1-3/4"
2	15H558	3	Pipe Plug	1/8", (SUB FOR R21630)
2	R21629	1	PIPE PLUG	(SUB 15H560) (4 USED WITH AR77522) (5 USED WITH AR82374)
3	AR77522	1	HOUSING	(MARKED R62836) (SUB AR82372)
3	AR82372	1	HOUSING	(MARKED R65224) (ALSO ORDER R65231 AND R65230) (SUB FOR AR77522)
3	AR82374	1	HOUSING	(MARKED R65226) (ALSO ORDER R65232 AND R65231)
4	R65229	1	Control Valve	(SUB FOR R62840)
5	R60038	1	Packing	-
6	R62842	1	Spring	-
7	R67315	1	Pin	(SUB FOR R62843)
8	34H249	1	Spring Pin	1/8" X 7/8"
9	R60523	1	OIL TUBE	-
10	R60524	1	Clamp	-
11	R57725	1	Screw	-
12	R65231	1	Screw	-
13	R64230	1	Spring	-
13	R65232	1	Spring	-
14	400R	1	Ball	6MM (1/4")
15	R53050	1	PIN FASTENER	-
16	R62841	1	Valve	-
17	R57558	1	Packing	-
18	R57849	1	PACKING	-
19	R79522	1	PISTON	(SUB FOR R59469)
20	R39322	2	Ring	-
21	R50349	1	Washer	-
22	R50222	1	Bushing	-
23	R38295	3	Needle Roller	-
24	AR80118	1	DRUM	(MARKED R64383) (SUB AR78253, AR78252, (6) R47074 AND (6) R57115)
25	R39304	1	Washer	-
26	R34513	1	Ring	-
27	R59470	1	PISTON	-
28	R50348	6	Disk Spring	-
29	R39299	1	Snap Ring	-
30	AR71561	3	DISK WITH INNER SPLINE	(SUB RE29816)
31	R39259	4	CLUTCH PLATE	-
32	R59468	6	Spring	-
33	R50152	3	Plate	-
34	RE29815	2	Disk	(SUB FOR AR54528 OR AR71560)
35	R30165	6	Cap Screw	-
36	R50153	1	PLATE	-

BRAKE PISTON HOUSING AND CLUTCH DRUM (QUAD-RANGE) (TRACTOR SERIAL NO. 015106- ) [02I06]
