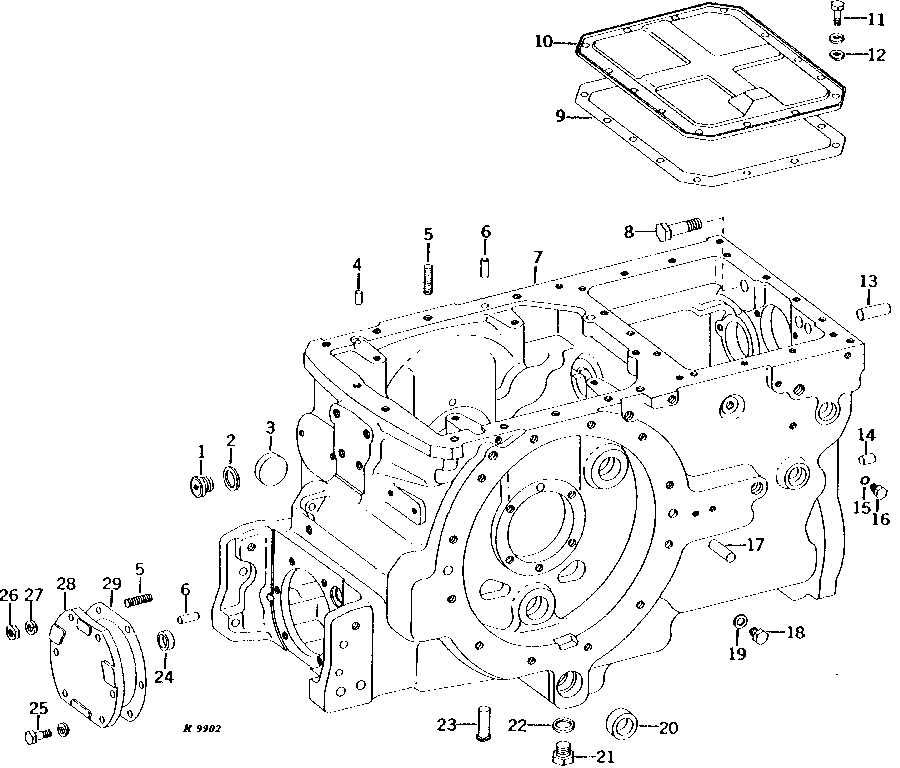

TRANSMISSION CASE AND COVER (SYNCRO-RANGE) [02G12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27483	1	FITTING PLUG	-
2	H851R	1	WASHER	-
3	R34456	1	Plug	(1000 RPM PTO OR LESS PTO)
4	R1612R	4	Dowel Pin	-
5	R32101	5	STUD	1/2" X 1-3/4"
6	R48685	4	Dowel Pin	(SUB FOR A120R)
7	AR39621	1	TRANSMISSION CASE	(MARKED R33090 OR R34890) (SUB FOR AR34014) (SUB RE171044 USED PART)
8	19H1782	3	Cap Screw	3/4" X 2-1/4"
9	R33425	1	GASKET	-
10	R33424	1	COVER	-
11	19H1731	14	Cap Screw	3/8" X 1"
11	12H304	14	Lock Washer	3/8"
12	A4624R	14	Washer	-
13	A776R	2	Pin	-
14	R27315	2	Dowel Pin	-
15	R26286	1	O-Ring	(A)
16	R27094	1	Drain Plug	(A)
17	R54380	4	Dowel Pin	(SUB FOR R26015 OR T25317)
18	R27218	1	Fitting Plug	(A)
19	T16911	1	SHIM	(A)
20	R26505	2	BUSHING	(SUB R221297 AND A3606R)
20	R45515	2	BUSHING	0.08MM (.003") OVERSIZE
20	R45516	2	BUSHING	0.15MM (.006") OVERSIZE
20	R54785	2	BUSHING	0.51MM (.020") OVERSIZE
20	R46801	2	BUSHING	0.76MM (.030") OVERSIZE
21	F3128R	1	DRAIN PLUG	-
22	A4827R	1	Washer	-
23	R31076	1	DOWEL PIN	-
24	R33498	1	PLUG	(1000 RPM PTO OR LESS PTO)
25	19H1815	4	Cap Screw	1/2" X 1-1/4"
25	12H301	4	Lock Washer	1/2"
26	14H1040	2	Nut	1/2"
27	12H301	2	Lock Washer	1/2"
28	R33489	1	COVER	(LESS PTO)
29	R33337	1	GASKET	-

TRANSMISSION CASE AND COVER (SYNCRO-RANGE) [02G12]
