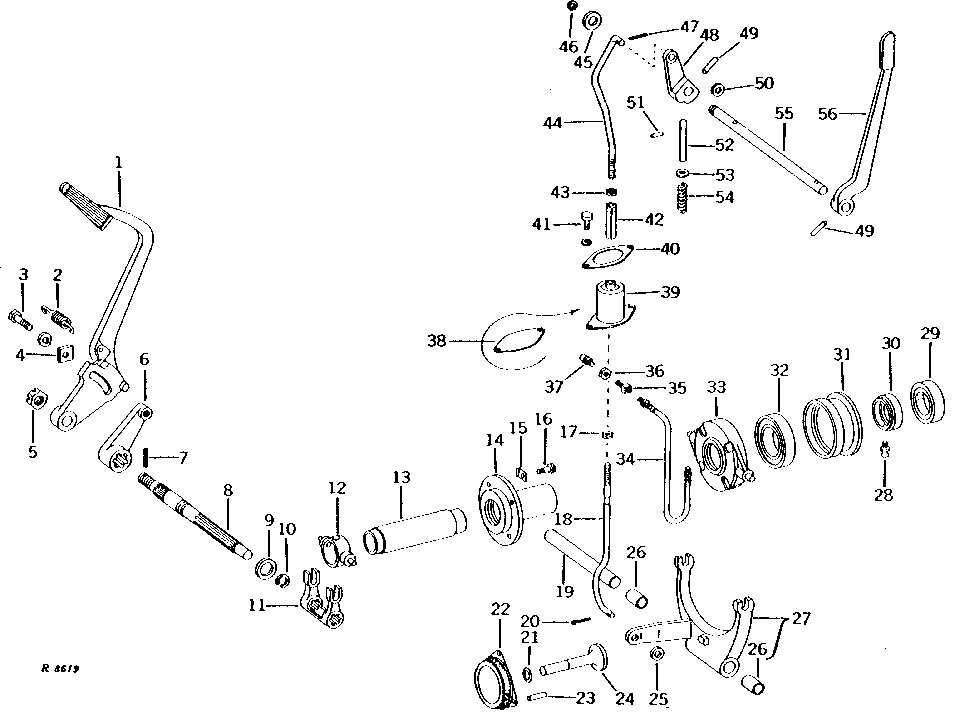

TRANSMISSION AND PTO CLUTCH CONTROLS (SYNCRO-RANGE) [02G10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27304	1	PEDAL	(NLA)
2	R26833	1	EXTENSION SPRING	-
3	12H301	1	Lock Washer	1/2"
3	19H1721	1	CAP SCREW	1/2" X 1-1/2"
4	R27305	1	STRAP	-
5	C1104R	1	NUT	-
6	R26652	1	LEVER	-
7	11M7083	1	Cotter Pin	0.126" X 1.969"
8	R31394	1	SHAFT	(USE WITH R31393)
8	R44277	1	SHAFT	(USE WITH R44180)
9	24H1477	1	Washer	1-5/32" X 1-3/4" X 0.060"
10	R26643	1	Snap Ring	-
11	R31393	1	FORK	(USE WITH R31394)
11	R41180	1	FORK	(USE WITH R44277)
12	AR32182	1	SHIFT COLLAR	(MARKED R33402)
13	R27303	1	TUBE	-
14	AR26485	1	SUPPORT	(MARKED R26664)
15	R30958	4	LOCK PLATE	-
16	19H2284	4	Cap Screw	3/8" X 7/8"
17	14H473	1	NUT	(A) 1/2"
18	R33959	1	ROD	(A) (NLA)
19	R26647	1	PIN	(A)
20	11M7015	1	Cotter Pin	(A) 3.200 X 25 MM
21	B2762R	1	O-Ring	(A)
22	AR26483	1	SHOE	(A) (SUB RE20728)
23	R36666	3	DOWEL PIN	(A) (SUB FOR R26198)
24	R32272	1	SHAFT	(A) (NLA)
25	24H1341	1	Washer	(A) 17/32" X 15/16" X 0.060"
26	R776R	2	BUSHING	(A)
27	AR32594	1	FORK	(A) (MARKED R33958)
28	JD7797	1	Lubrication Fitting	-
29	AR41942	1	Thrust Bearing	-
30	R26667	1	LOCKING COLLAR	-
31	R26666	1	SHIFT COLLAR	(A)
32	AR27447	1	BALL BEARING	(A)
33	AR32442	1	SLEEVE	(A) (MARKED R33716)
34	R35644	1	HYDRAULIC HOSE	(A)
35	R36311	1	Fitting	(A)
36	E12379	1	Nut	(A)
37	JD7797	1	Lubrication Fitting	(A)
38	R34212	1	GASKET	-
39	R33962	1	BOOT	(A)
40	R33963	1	STRAP	(A)
41	19H2127	2	Cap Screw	(A) 5/16" X 7/8"
41	12H303	2	Lock Washer	(A) 5/16"
42	R33961	1	COUPLING	(A)
43	14H597	1	NUT	(A)
44	R33960	1	ROD	(A) (NLA)
45	24H1396	1	Washer	(A) 25/32" X 1-1/2" X 0.105"
46	R73380	1	Snap Ring	(A) (SUB FOR A369R)
47	11M7015	1	Cotter Pin	(A) 3.200 X 25 MM
48	R33964	1	ARM	(A)
49	34H331	2	Spring Pin	(A) 5/16" X 1-1/2"
50	24H1227	1	Washer	(A) 17/32" X 13/16" X 0.060"
51	34H249	1	Spring Pin	(A) 1/8" X 7/8"
52	R26683	1	PIN FASTENER	(A)
53	24H1325	1	Washer	(A) 15/32" X 59/64" X 0.065"
54	R45358	1	SPRING	(A) (SUB FOR P28102)
55	R34232	1	SHAFT	(A) (NLA)
56	R34233	1	LEVER	(A) (NLA)
