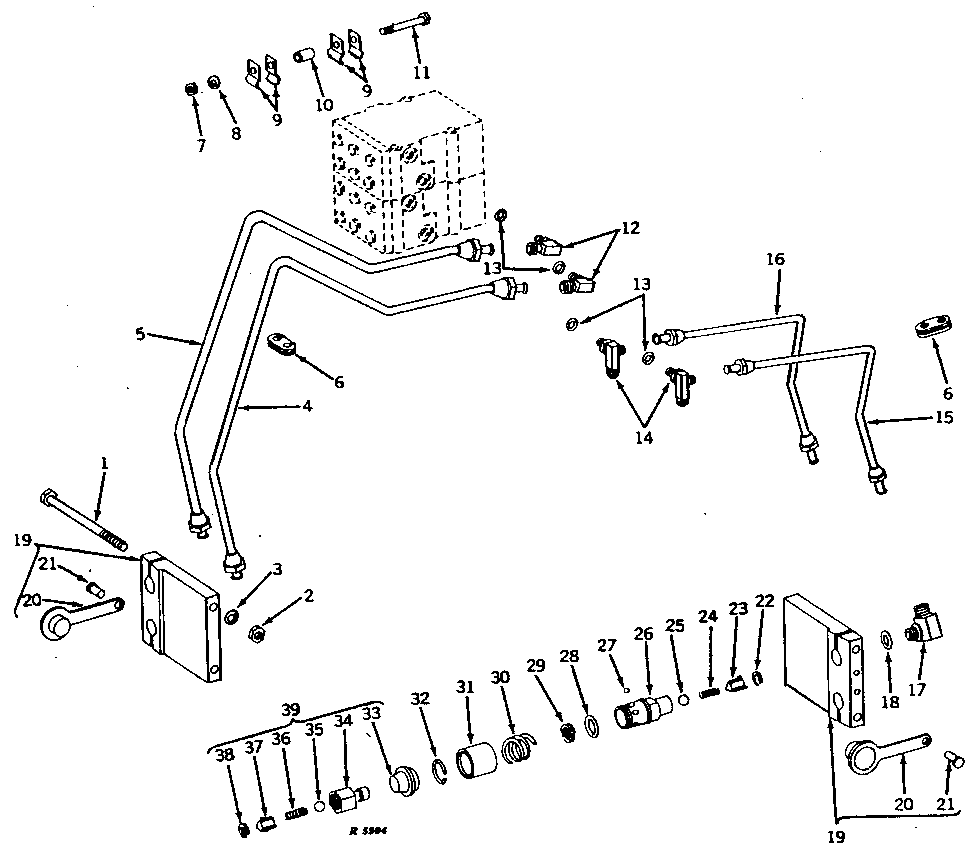

RIGHT-HAND AND LEFT-HAND PARALLEL DUAL FRONT OUTLET WITH COUPLERS (WITH DUAL SELECTIVE CONTROL) [03F05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	08H4215	4	BOLT	3/8" X 6-3/4", (NLA)
2	14H1076	4	Nut	3/8"
3	12H304	4	Lock Washer	3/8"
4	AR31670	1	LINE	LOWER, R.H.
5	AR31669	1	OIL LINE	UPPER, R.H.
6	R26418	2	GROMMET	-
7	14H786	1	Nut	1/4"
8	12H302	1	Lock Washer	1/4"
9	R27720	4	CLAMP	-
10	28H1697	1	Spacer	3/8" X .750
11	19H2334	1	Cap Screw	1/4" X 2-1/2"
12	AR31674	2	Fitting	90°
13	R26375	4	O-Ring	-
14	AR32665	2	Tee Fitting	-
15	AR31679	1	OIL LINE	LOWER, L.H.
16	AR31678	1	OIL LINE	UPPER, L.H. (NLA)
17	AR31674	4	Fitting	90°
18	R26375	4	O-Ring	-
19	AR31673	2	BRACKET	(MARKED R32418)
20	R32419	4	COVER	-
21	A5748R	4	SCREW	(SUB 37H92)
22	R59633	4	WEAR RING	(SUB FOR R28204)
23	R28085	4	GUIDE	(SUB RE15361)
24	R28084	4	SPRING	-
25	D2361R	4	Ball	13MM (1/2")
26	R32353	4	SOCKET OUTLET	-
27	400R	24	Ball	6MM (1/4")
28	R495R	4	O-Ring	-
29	R26485	4	BACK-UP RING	-
30	R32354	4	SPRING	-
31	R32355	4	SLEEVE	-
32	R32356	4	SNAP RING	-
33	R28006	4	CAP	-
34	R27430	2	HYD. QUICK-CONNECT COUPLER	(PRESSURE) (SUB AR93819)
34	R45630	2	HYD. QUICK-CONNECT COUPLER	(RETURN) (SUB AR93820)
35	D2361R	4	Ball	13MM (1/2")
36	R28084	4	SPRING	-
37	R28085	4	GUIDE	(SUB AR93819 OR AR93820, THIS APPLICATION)
38	R59633	4	WEAR RING	(SUB FOR R28204)
39	AR30210	2	HYDR.QUICK COUPLER PLUG	(PRESSURE) (SUB AR93819)
39	AR47643	2	BREAKAWAY COUPLER	(RETURN) (SUB AR93820)
