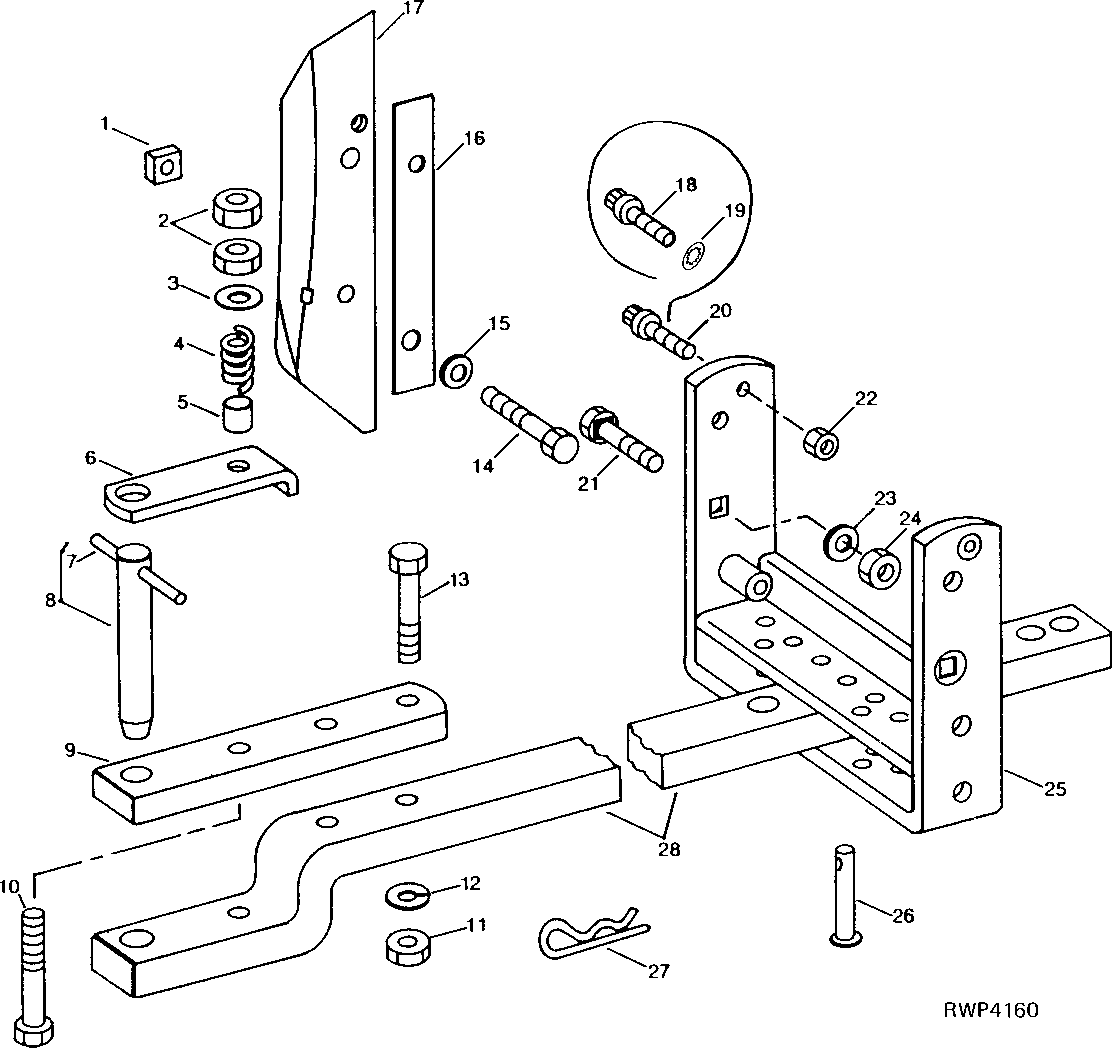

REGULAR DRAWBAR (ROW-CROP AND STANDARD) [03E07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H893	2	Nut	5/8"
2	14H1039	2	Nut	5/8"
3	24H1372	1	Washer	21/32" X 1-1/2" X 0.060"
4	F3541R	1	Spring	-
5	F3542R	1	Bushing	-
6	F3539R	1	Retainer	-
7	34H363	1	Spring Pin	3/8" X 4"
8	AR26462	1	PIN FASTENER	-
9	R26584	1	STRAP	-
10	19H3169	1	Cap Screw	5/8" X 4-1/4"
11	14H794	2	Nut	3/4"
12	12H236	2	Lock Washer	3/4"
13	19H1735	2	Cap Screw	3/4" X 3-1/2"
14	19H2233	2	CAP SCREW	5/8" X 3-1/2"
15	12H294	2	Lock Washer	5/8"
16	R65527	2	Washer	(SUB FOR R34505)
17	R39512	1	SWAY BLOCK	R.H. (SUB FOR R33862)
17	R39513	1	SWAY BLOCK	L.H. (SUB FOR R33863)
18	R41015	2	SCREW	(TRANSMISSION CASE WITH TAPPED HOLES) (SUB FOR R26508)
19	12H292	2	Lock Washer	1/2"
20	R42440	2	SCREW	(TRANSMISSION CASE WITH REAMED HOLES)
21	R101202	2	BOLT	5/8" X 3 1/4", (SUB FOR R49106)
22	14H1040	2	Nut	1/2"
23	12H294	2	Lock Washer	5/8"
24	14H1039	2	Nut	5/8"
25	AR33911	1	SUPPORT	-
26	R33831	2	PIN	(SUB R61967 AND A15146)
27	AR62151	2	Quick Lock Pin	(SUB FOR B11182) (SUB M115827)
28	R34448	1	DRAWBAR	(SUB RE20663)
28	R80842	1	DRAWBAR	(HEAVY-DUTY) (NOT DRILLED FOR STRAP)

REGULAR DRAWBAR (ROW-CROP AND STANDARD) [03E07]
