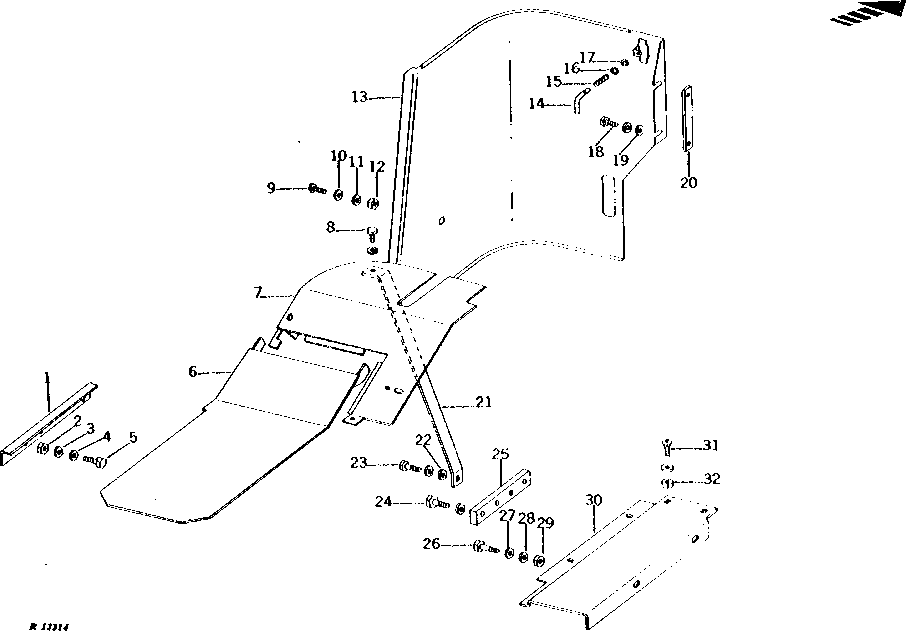

OPERATOR SHIELDS, EXTENSIONS AND BATTERY BOX COVER (TRACTOR SERIAL NO. 179457- ) [03I07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R42609	1	SUPPORT	(NLA)
2	14H1076	2	Nut	3/8"
3	12H304	2	Lock Washer	3/8"
4	24H1305	2	Washer	13/32" X 13/16" X 0.065"
5	19H1936	2	Cap Screw	3/8" X 3/4"
6	AR44725	1	COVER	(NLA)
7	AR44724	1	EXTENSION	L.H.(NLA)
7	R41253	1	EXTENSION	R.H. (SUB FOR R34879) (NLA)
7	19H1936	2	Cap Screw	3/8" X 3/4", R.H. EXTENSION TO OPERATOR'S SHIELD
7	12H304	2	Lock Washer	3/8"
7	24H1305	2	Washer	13/32" X 13/16" X 0.065"
8	12H304	2	Lock Washer	3/8"
8	19H1936	2	Cap Screw	3/8" X 3/4"
9	03H1500	2	Bolt	3/8" X 1"
10	24H1305	2	Washer	13/32" X 13/16" X 0.065"
11	12H304	2	Lock Washer	3/8"
12	14H1076	2	Nut	3/8"
13	AR44729	1	SHIELD	L.H.(NLA)
13	AR40445	1	SHIELD	R.H.(NLA)
14	R27506	2	PIN	(NLA)
15	R28783	2	Compression Spring	-
16	24H1286	2	Washer	9/32" X 1/2" X 1/16"
17	R72654	2	Snap Ring	(SUB FOR R27507)
18	19H1936	4	Cap Screw	3/8" X 3/4"
18	12H304	4	Lock Washer	3/8"
19	24H1305	4	Washer	13/32" X 13/16" X 0.065"
20	R34887	2	STRAP	(NLA)
21	R34882	2	SUPPORT	(NLA)
22	24H1625	2	Washer	17/32" X 1" X 0.120"
23	19H1792	2	Cap Screw	1/2" X 1"
23	12H301	2	Lock Washer	1/2"
24	12H301	4	Lock Washer	1/2"
24	19H1815	4	Cap Screw	1/2" X 1-1/4"
25	R34881	2	PLATE	(NLA)
26	19H1936	2	Cap Screw	3/8" X 3/4"
27	24H1305	2	Washer	13/32" X 13/16" X 0.065"
28	12H304	2	Lock Washer	3/8"
29	14H1076	2	Nut	3/8"
30	R42606	1	EXTENSION	(NLA)
31	03H1765	2	Bolt	3/8" X 3/4"
31	12H304	2	Lock Washer	3/8"
32	14H1076	2	Nut	3/8"

OPERATOR SHIELDS, EXTENSIONS AND BATTERY BOX COVER (TRACTOR SERIAL NO. 179457- ) [03I07]
