ELECTRICAL SYSTEM PROTECTION KIT (DIESEL WITH AIR CONDITIONING) [02B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

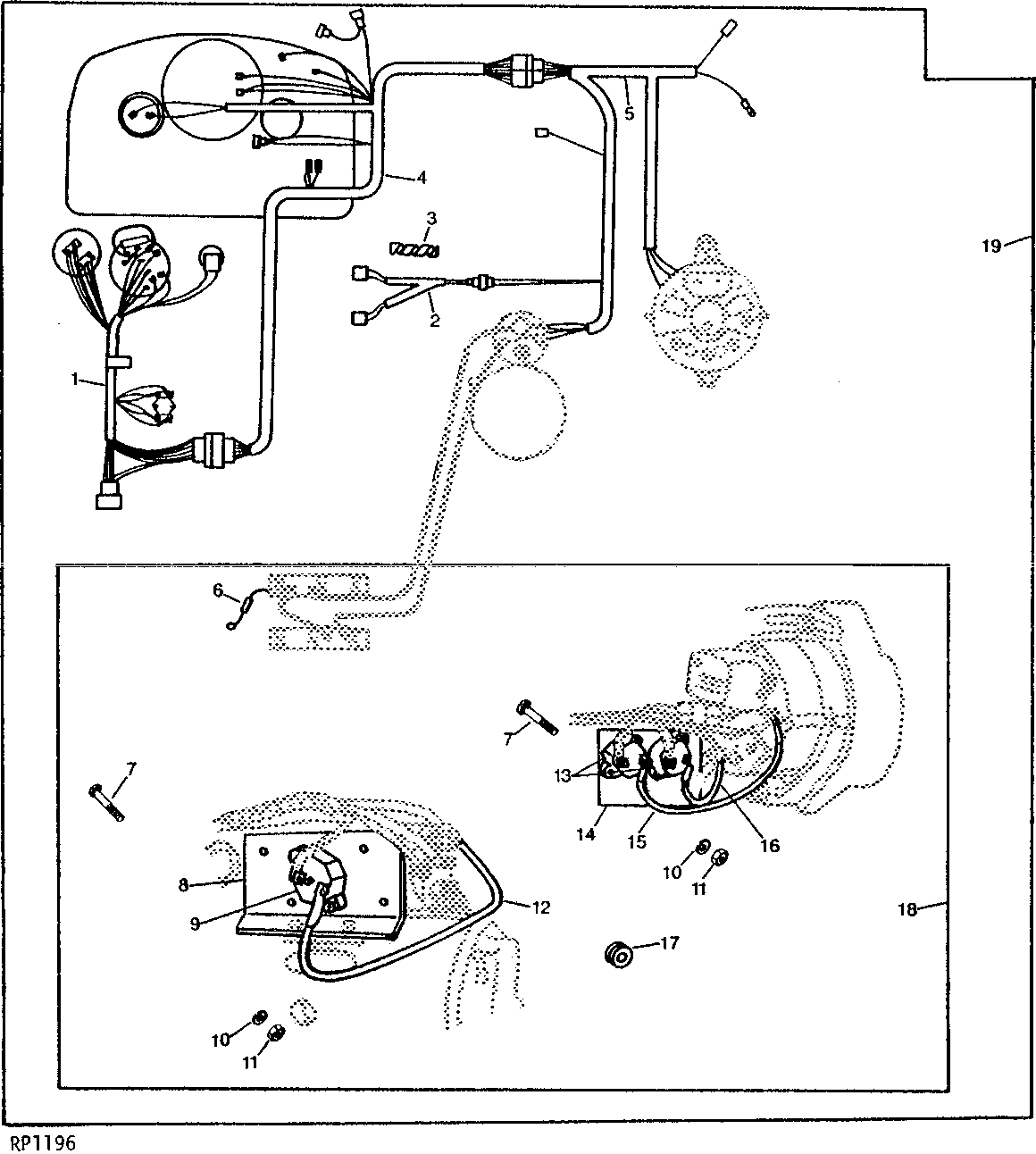

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR47685	1	WIRING HARNESS	SWITCH
2	R34869	1	WIRING HARNESS	(POWER SHIFT) NEUTRAL START SWITCH TO ENGINE HARNESS
2	R33823	1	WIRING HARNESS	(SYNCRO-RANGE) NEUTRAL START SWITCH ENGINE HARNESS
3	-	1	Part 4	1524MM (60") (MAKE FROM R46620) (POWER SHIFT)
4	AR47686	1	WIRING HARNESS	INSTRUMENT
5	AR47701	1	WIRING HARNESS	ENGINE (NLA)
6	AR47712	1	WIRING LEAD	WITH FUSE
7	21H1282	6	SCREW	0.190" X 7/8"
8	R45642	1	BRACKET	-
9	AR47711	1	CIRCUIT BREAKER	-
9	AR47715	2	WIRING LEAD	(MAKE FROM 12, R32019, R32022)
10	12H246	6	LOCK WASHER	0.190"
11	14H631	6	Nut	0.190"
12	AR47716	1	WIRING LEAD	(MAKE FROM 12, R32019 AND R32022) CIRCUIT BREAKER TO STARTING MOTOR
13	AR47710	2	CIRCUIT BREAKER	-
14	R45645	1	BRACKET	(ORDER AR47676)
15	AR47719	1	WIRING LEAD	(MAKE FROM 12 AND (2) R32019) CIRCUIT BREAKER TO ALTERNATOR
16	AR47718	1	WIRING LEAD	CIRCUIT BREAKER TO ALTERNATOR, (MAKE FROM 12, R32019, R32021)
17	R41439	5	Grommet	-
18	AR47676	1	KIT	CIRCUIT BREAKER
19	AR47666	1	KIT	-
..	R44302	10	Tie Band	-

ELECTRICAL SYSTEM PROTECTION KIT (DIESEL WITH AIR CONDITIONING) [02B21]

Нет текстового описания
